Motherboard chip

B760

CPU

Intel Core 12/13/14th i9/i7/i5/i3/Pentium LGA1700 pin processor

For example: G6900/i3-12100f/i5-12400/i5-12600kf/i5-13400/i5-13600kf/i5-14400, etc.

memory

2*DDR4 DIMM dual channel, 2133/2400/2666/3000/3200/3600 MHz (OC+), with maximum support of 64G (32G*2).

Support XMP

save

2*M.2 slot (SSD2:PCIE 4.0 X4 from CPU)

(SSD1:PCIE 4.0 X4/SATA3.0 protocol; Cap-hopping switch)

3*SATA interface (SATA3.0)

Display interface

1*DP1.4 + 1*HDMI 2.0; Support synchronous dual display

Network card chip

Realtek network card chip

WIFI

1*M.2 WIFI (supporting CNVI & PCIe dual protocol)

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

Realtek HD audio chip

Usb interface

IO interface: 2 * USB 3.2gen2/10gbps; 4*USB2.0;

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be extended); 1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

PCIE

1* PCIE X16 4.0 slot (from CPU)

1* PCIE X4 4.0 slot (from PCH)

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin +1*3Pin SYS fan; 1*JCMOS pin; 1*JESPI pin; 1*SPEAK pin

Power input

24Pin+8Pin ATX power socket

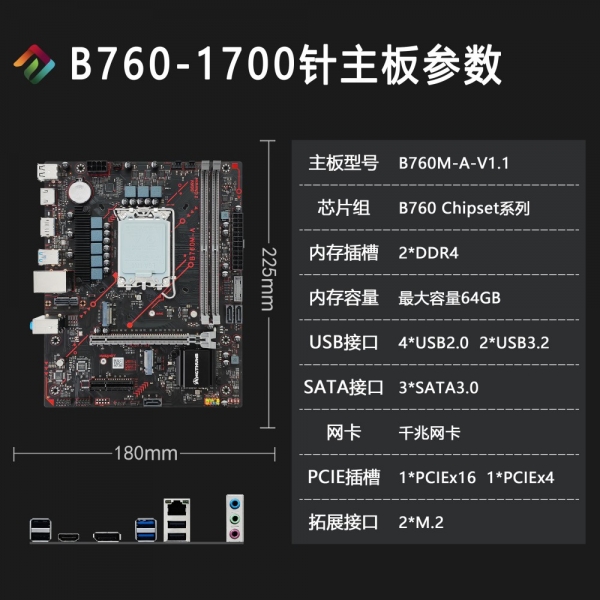

product size

180 x 225mm x 4L
