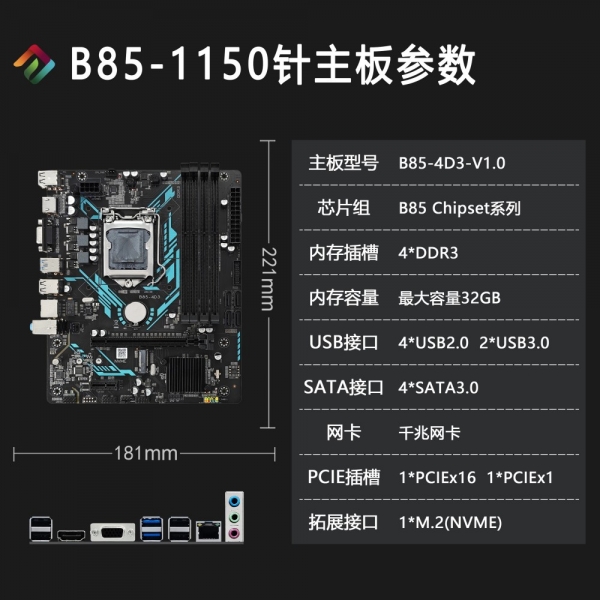

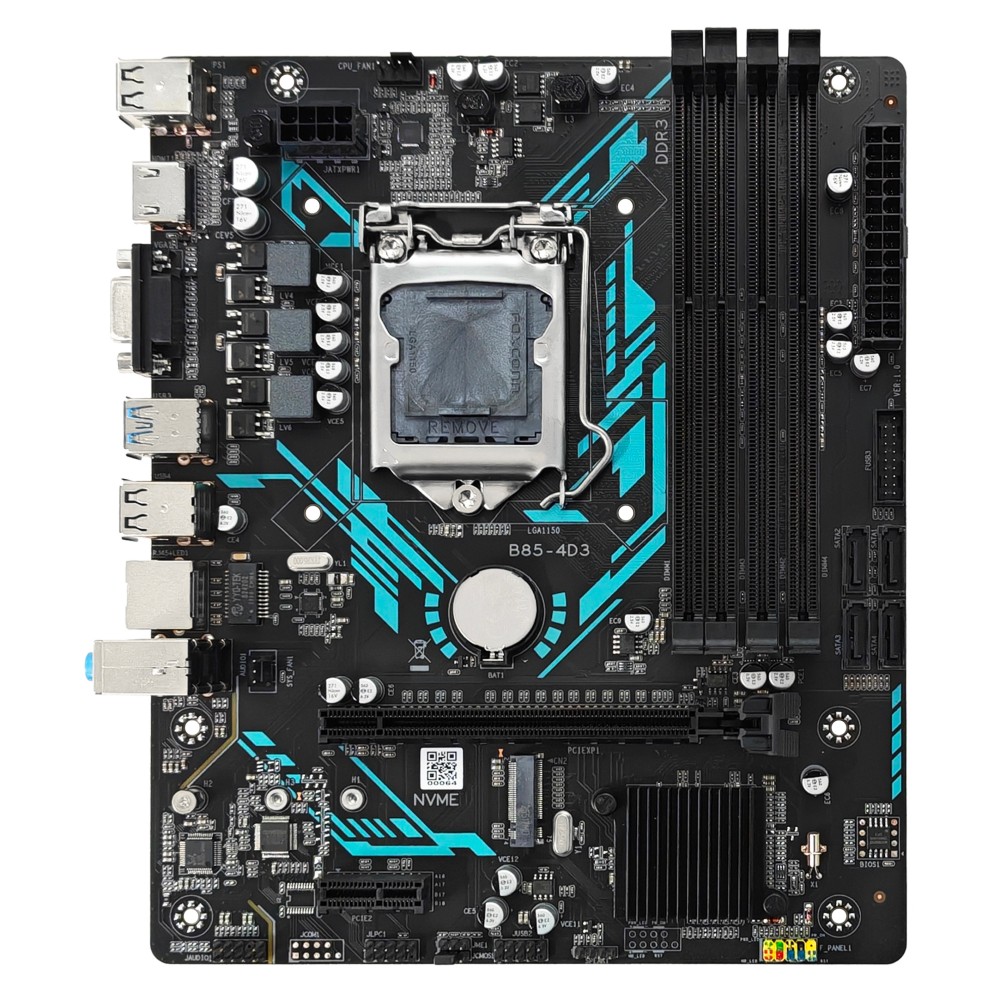

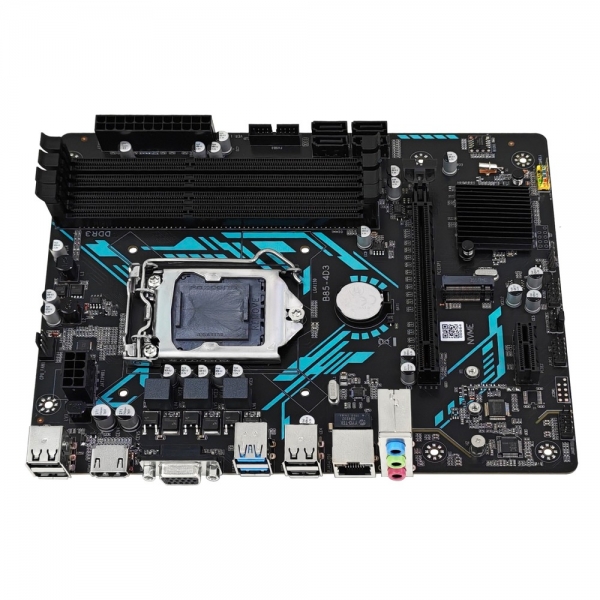

Motherboard chip

Intel B85

CPU

InteI LGA 1150-pin series CPU

Optional: I3-4370/I5-4460/I7-4770 and so on.

memory

4*DDR3 DIMM, 1600MHz/32G, single slot supports up to 8 G.

Cunzhu

1* M.2 slot (NVME protocol); 4*SATA3.0 interface

Display interface

1*HDMI 1.4 interface, 1*VGA interface

network

1*RJ45 interface

Network card chip

Realtek gigabit network card chip

PCIE slot

1*PCIE X16 slot (PCIE3.0 X16 signal)

1*PCIE X1 slot (PCIE2.0 X1 signal)

audio frequency

1*Line out； 1*Mic In； 1*Line In； 1*F_Audio built-in pin

Audio chip

Realtek HD audio chip

Usb interface

Rear interface: 4 * USB 2.0; 2*USB3.0

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 can be extended)

1 set of USB3.0 pins (2 USB3.0 can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan

Power input

24Pin+8Pin ATX power socket

product size

181.18x 221.27mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 20~50W Full load power consumption: 80~150W (for reference only, excluding discrete graphics power consumption)

other

1*JCMOS jump cap; 2*5Pin diagnostic card interface
