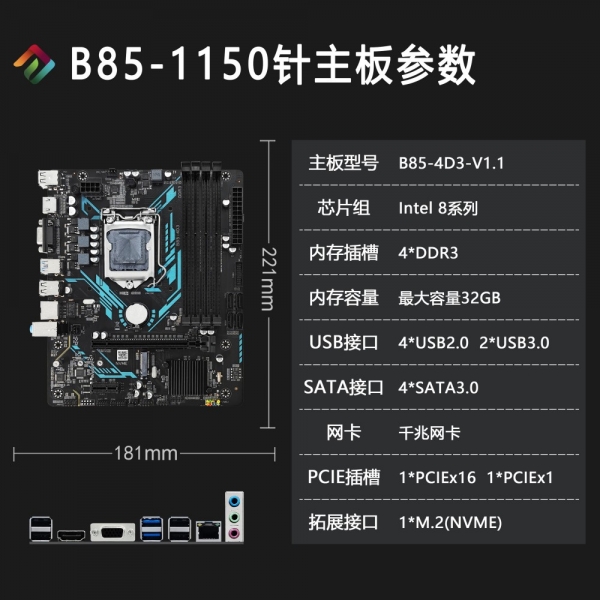

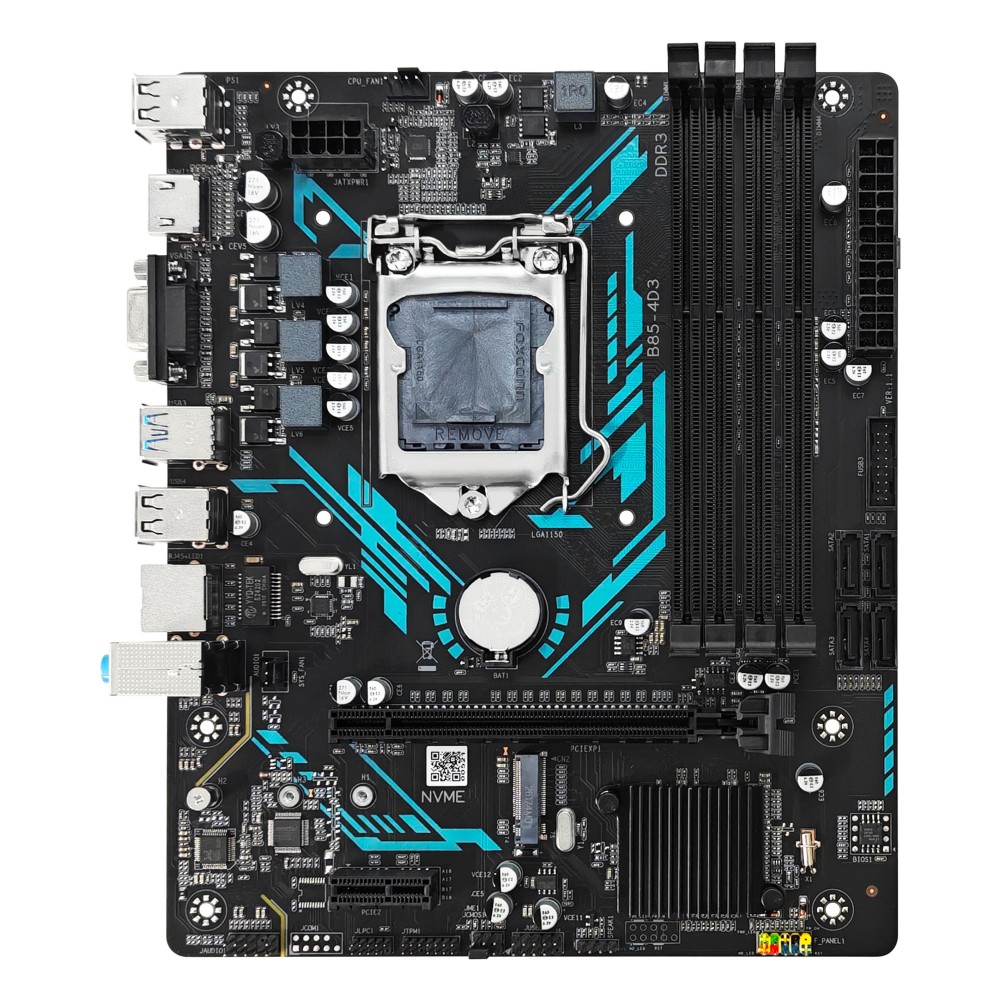

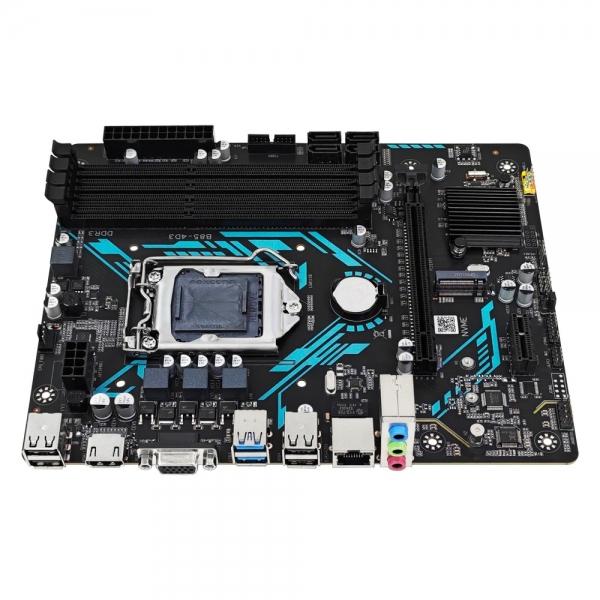

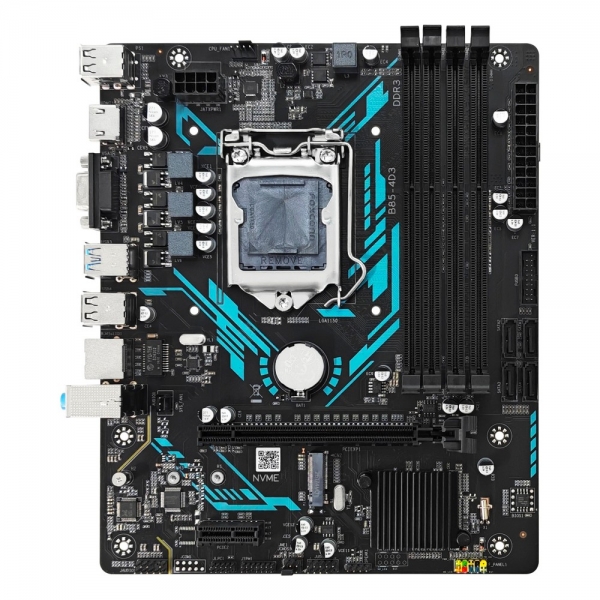

Motherboard chip

Intel 8 Series Chipsets

CPU

Intel 1150 Series CPU

Optional: G1820, I3-4150, I5-4460, I7-4770, I7-4790K, etc.

memory

4*DDR3 DIMM, quad-channel, 1333/1600MHz/32G, single slot supports up to 8G.

Cunzhu

1*M.2 slot (only PCIE 2.0 X4 mode is supported); 4 *SATA 3.0 interface

Network card chip

1*Realtek Gigabit NIC chip

Display interface

1*HDMI, 1*VGA interface

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

1*Realtek HD Audio Chip

PCIE

1*PCIE X16 slot (PCIE3.0 X16 signal for processor)

1*PCIE X1 slot (chipset PCIE 2.0 X1 signal)

Usb interface

IO interface: 4*USB2.0, 2*USB3.0.

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 can be extended)

1 set of USB3.0 pins (2 USB3.0 can be expanded)

TPM

1*TPM pin

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan, 1*3Pin SYS fan; 1*4Pin buzzer pin

Power input

24Pin+8Pin ATX power socket

product size

181.18 mm x 221.27 mm x 4L

power consumption

Standby power consumption: 40~60W Full load power consumption: 150~180W

other

1*JCMOS jump cap; 1*JME pin; 2*5Pin diagnostic card interface
