Motherboard chip

Inter B85

CPU

InteI I3/ I5 /I7 and other LGA1150 pin processors.

memory

2*DDR3 DIMM, 1600MHZ, single slot up to 8G.

Cunzhu

1*M.2 slot (default NVME), 4*SATA 3.0 interface.

Network card chip

RTL8111H gigabit network card chip

Display interface

1*HDMI+1*VGA (supporting synchronous dual display)

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

Realtek ALC887 HD audio chip

Usb interface

IO interface: 4*USB2.0, 2*USB3.0.

Built-in pins: 2*USB2.0 (a set of USB pins can be extended by 2 USB2.0) and 2*USB3.0 (a set of USB pins can be extended by 2 USB3.0).

PCIE

1*PCIE X16 slot; 1*PCIE X1 slot

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan, 1*3Pin SYS fan; 1* Buzzer pin

Power input

24Pin+8Pin ATX power socket

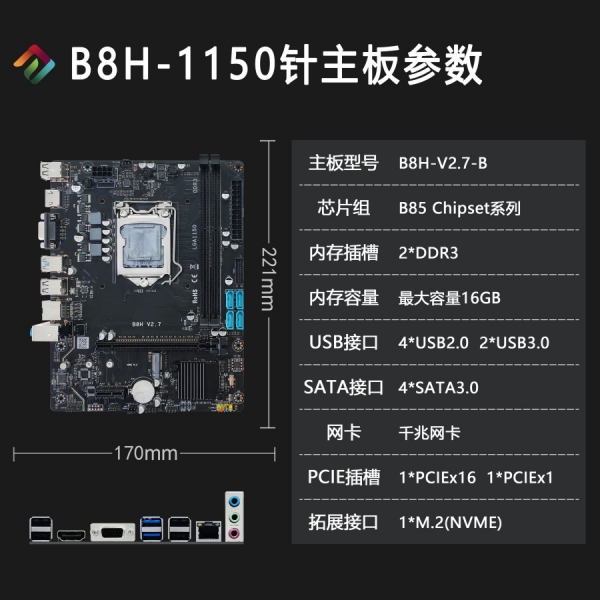

product size

221.27 MM x 170 MM 4 floors

Working temperature

10℃~60℃

power consumption

Standby power consumption: 50~70W Full load power consumption: 180~300W

other

1*JCMOS jump cap; 2*5Pin diagnostic card interface
