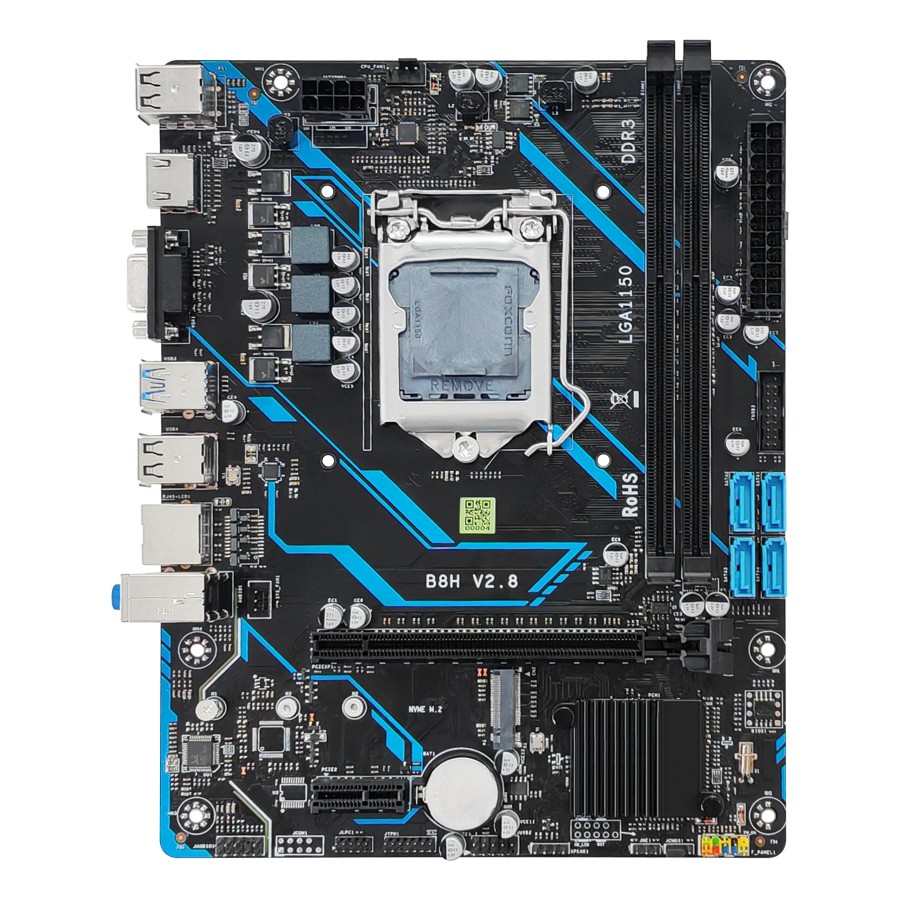

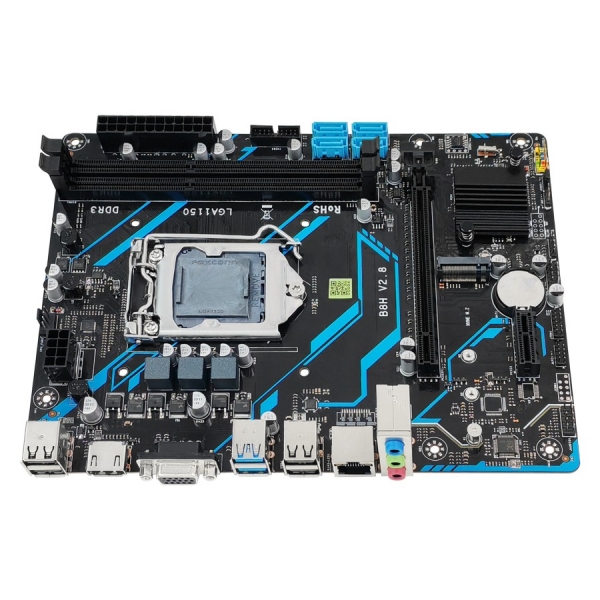

Motherboard chip

Intel B85

CPU

Intel 1150 Series CPU

Optional: G1820, I3-4150, I5-4460, I7-4770, I7-4790K, etc.

memory

2*DDR3 DIMM, 1600MHZ/16G, single slot supports up to 8G.

Cunzhu

1*M.2 slot (only nvme and pcie 2.0x4 mode are supported); 4*SATA 3.0 interface

Display interface

1*HDMI； 1*VGA interface

Network card chip

1*RTL8111H Gigabit NIC chip

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

Realtek ALC887 HD audio chip

PCIE

1*PCIE X16 slot (PCIE3.0 X16 signal)

1*PCIE X1 slot (PCIE 2.0 X1 signal)

Usb interface

IO interface: 4*USB2.0, 2*USB3.0.

Built-in pins: 2*USB2.0 (a set of USB2.0 pins can be extended by 2 USB2.0)

2*USB3.0 (a set of USB3.0 pins can be extended by 2 USB3.0)

TPM

1*TPM pin

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan, 1*3Pin SYS fan; 1*4Pin buzzer pin

Power input

24Pin+8Pin ATX power socket

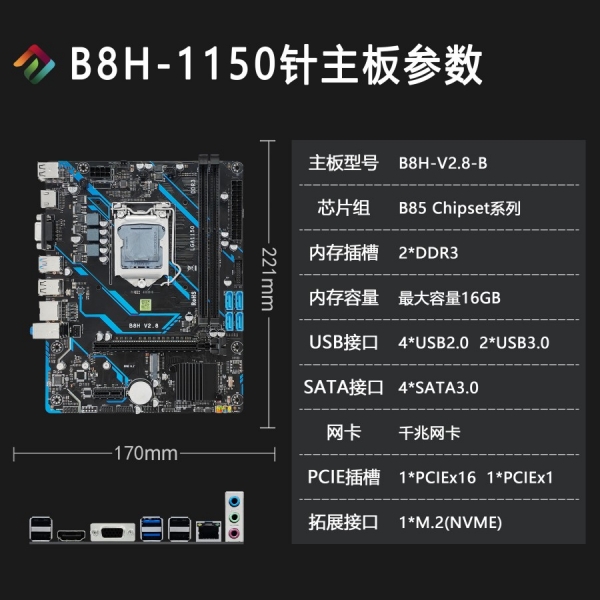

product size

221.27mm x 170.00mm x 4L

Working temperature

10℃~60℃

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 50~70W Full load power consumption: 180~260W

other

1*JCMOS jump cap; 2*5Pin diagnostic card interface
