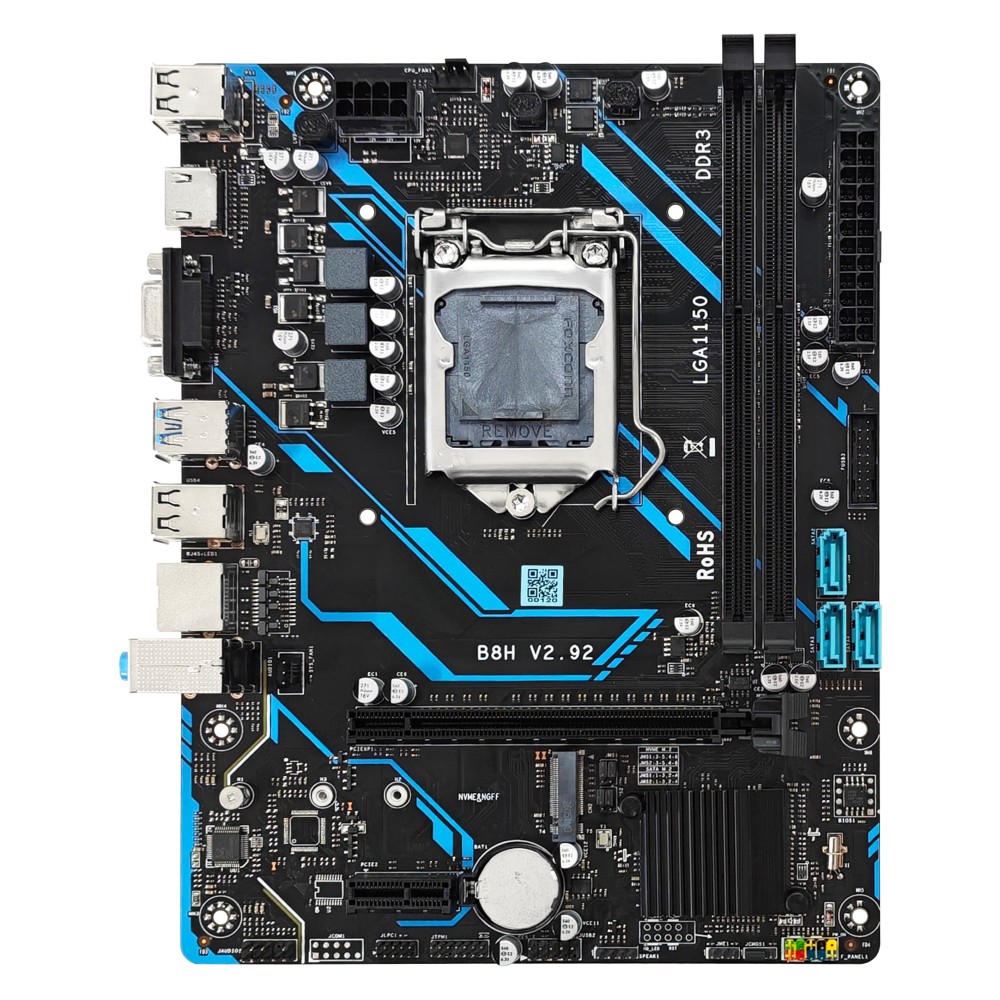

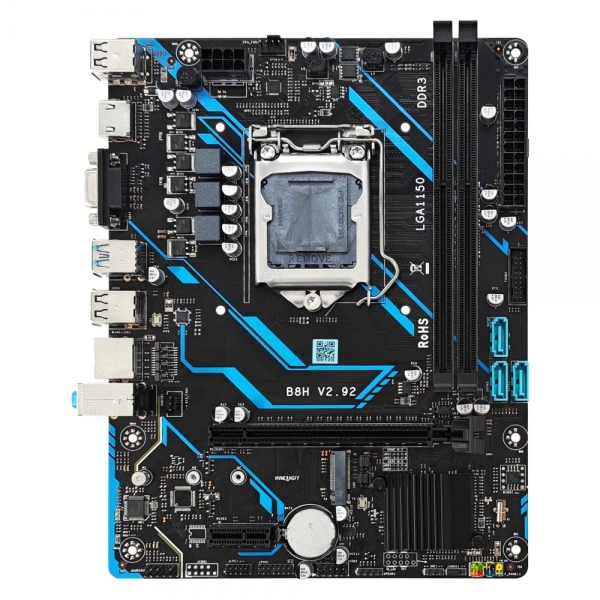

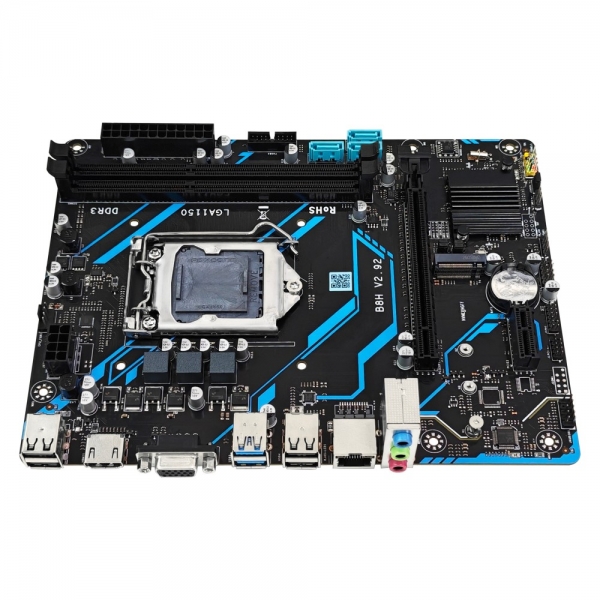

Motherboard chip

Intel 8 Series Chipsets (B85)

CPU

Intel Core i7/i5/i3 Celeron/Pentium /EXON LGA1150 pin CPU

For example: G1820/E3-1230V3/i7-4770/i5-4590, etc.

memory

2*DDR3 dual-channel DIMM, 1333/1600MHz(MAX), maximum support for 16G (8G*2).

Cunzhu

1*M.2 slot (NVME protocol; PCIE2.0 X4/SATA3.0 protocol, cap hopping); 3*SATA3.0 interface

Display interface

1*HDMI 1.4 + 1*VGA

network

1*RJ45 interface

Network card chip

Realtek gigabit network card chip

TPM

1*14Pin TPM pin (compatible with MSI 14Pin TPM module)

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

Realtek HD audio chip

Usb interface

IO interface: 2*USB3.0, 4*USB2.0;

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be extended);

1 set of USB3.0 pins (actually 2 USB3.0 ports can be expanded)

PCIE/PCI

1*PCIE X16 3.0 slot (from CPU)

1*PCIE X1 2.0 slot (from PCH)

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan; 1*SPEAK pin

Power input

24Pin+8Pin ATX power socket

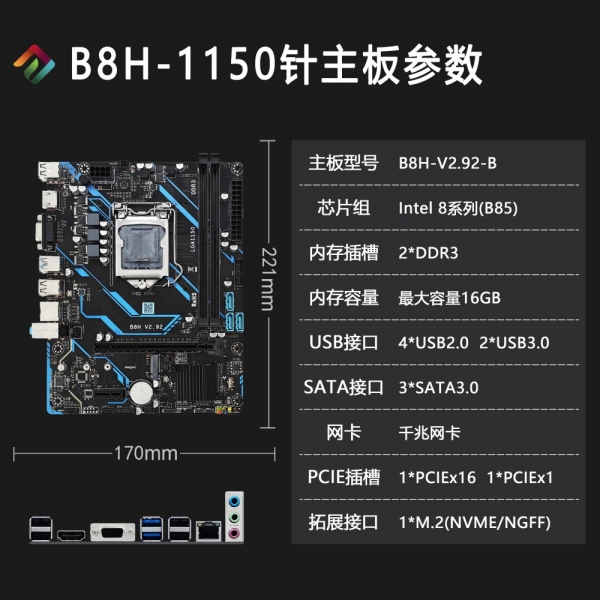

product size

170.00 mm x 221.27 mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 30~40W Full load power consumption: 80~110W (for reference only, excluding discrete graphics power consumption)

other

1*JCMOS pin; 1*JLPC pin; 1*JME pin
