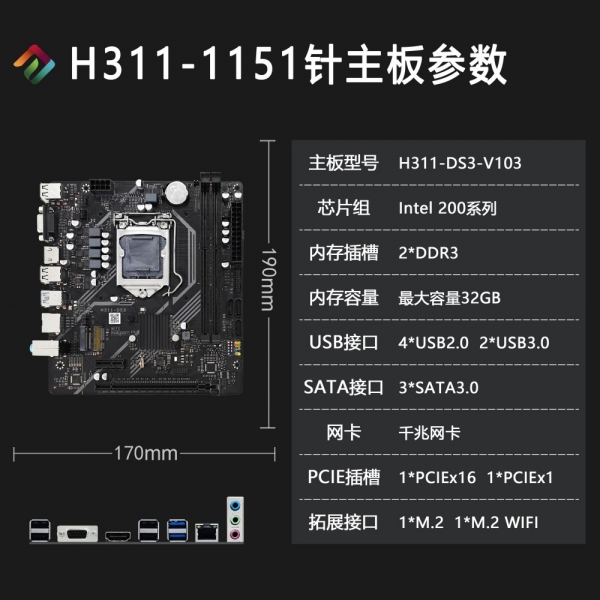

Motherboard chip

Intel 200 Series Desktop Chipsets

CPU

Intel 1151 Series CPU

Optional: g5400, i3-6100, i5-7400, i5-8500, i7-9700k, etc.

memory

2*DDR3 DIMM, 1333MHz,1600MHz/16G, single slot supports up to 8 G.

Cunzhu

1*M.2 slot (supports NVME 3.0 x4 and NGFF 3.0 modes, and jumps the cap); 3*SATA3.0 interface

Network card chip

1*Realtek Gigabit NIC chip

Display interface

1*HDMI, 1*VGA interface

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

1*Realtek HD Audio Chip

PCIE

1*PCIE X16 slot (PCIE3.0 X16 signal)

1*PCIE X1 slot (PCIE3.0 X1 signal)

Usb interface

IO interface: 4*USB2.0, 2*USB3.0.

Built-in pins: one set of USB2.0 pins can be extended by two USB2.0 pins.

One set of USB3.0 pins can be extended by two USB3.0 pins.

TPM

1*TPM pin (compatible with MSI 14Pin TPM module)

WIFI

1*WIFI M.2 slot

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan, 1*3Pin SYS fan; 1*4Pin buzzer pin

Power input

24Pin+8Pin ATX power socket

product size

170.00 mm x 190.00 mm x 4L

power consumption

Standby power consumption: 30~55W Full load power consumption: 120~160W

other

1*JBAT； 2*5Pin diagnostic card interface
