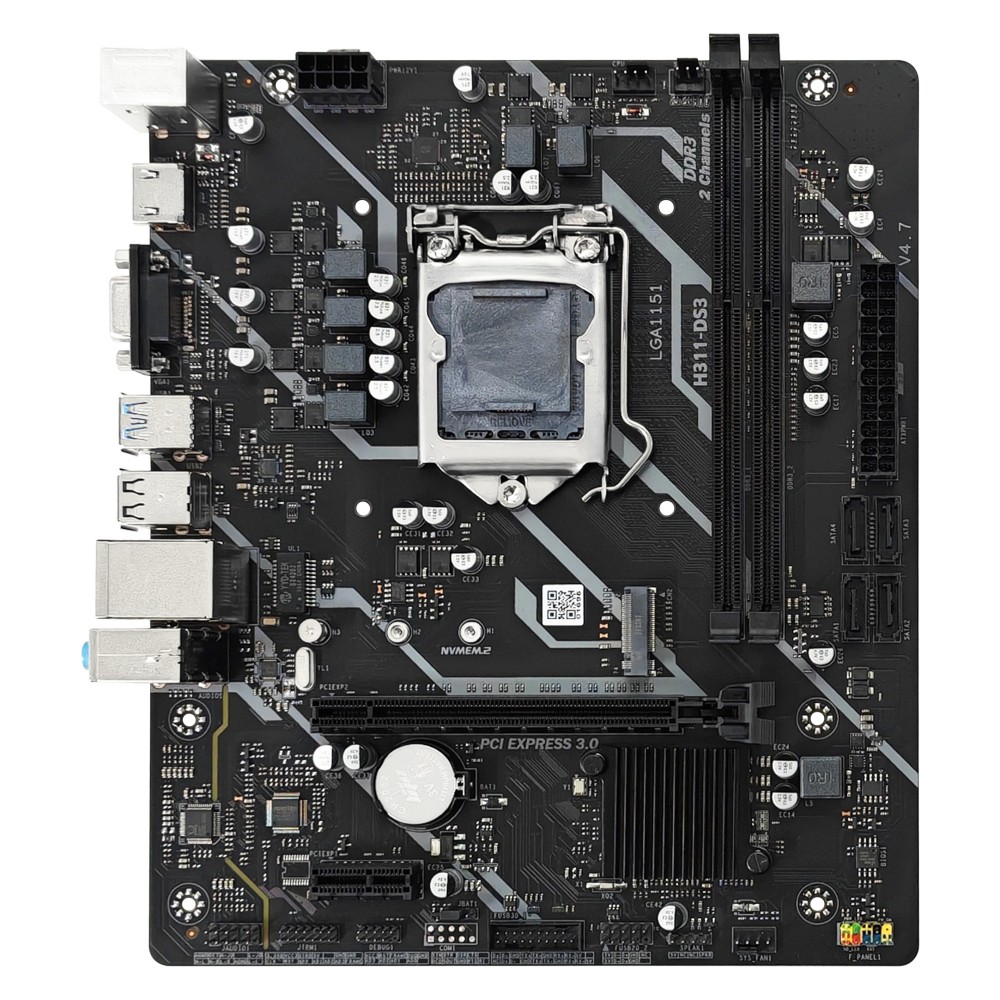

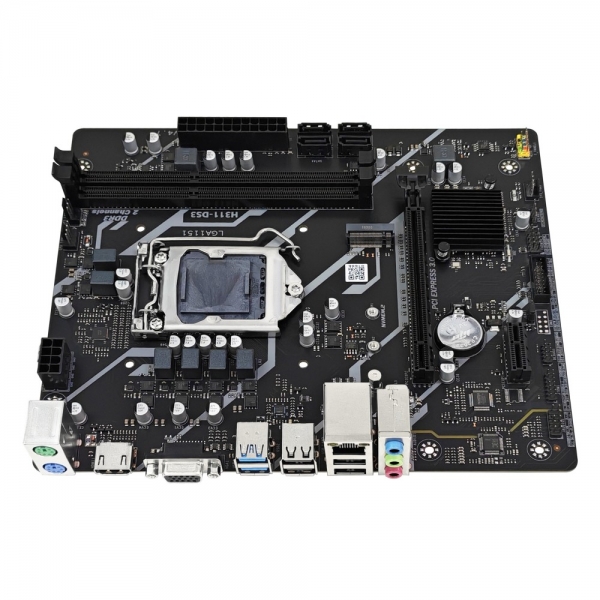

Motherboard chip

Intel H110

CPU

Intel LGA1151 Series CPU

Optional: I3-6100, I3-7100, I5-7400, I5-8500, I3-9100, I7-9700K, G5400, G3900, etc.

memory

2*DDR3 DIMM, 1333/1600MHZ, single slot supports up to 8G.

Cunzhu

1*M.2 slot (only PCIE 2.0 X4 mode is supported); 4*SATA 3.0 interface

Display interface

1*HDMI 1.4,1*VGA

audio frequency

1*Line out； 1*Mic In； 1*Line In； 1*F_Audio built-in pin

Audio chip

1*Realtek HD Audio Chip

PCIE slot

1*PCIE X16 slot (PCIE3.0 X16 signal)

1*PCIE X1 slot (PCIE2.0 X1 signal)

network

1*RJ45 interface

Network card chip

1*Realtek Gigabit NIC chip

PS2

1*PS/2 keyboard and mouse interface

TPM

1*14Pin pin (compatible with MSI 14Pin TPM module)

Usb interface

IO interface: 2 * USB 3.0; 4*USB2.0

Built-in pins: 1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

1 set of USB2.0 pins (2 USB2.0 ports can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin SYS fan, 1*3Pin SYS fan; 1*JBAT pin

1*Speak pin (buzzer); 1*DEBUG pin (diagnostic card)

Power input

24Pin+8Pin ATX power socket

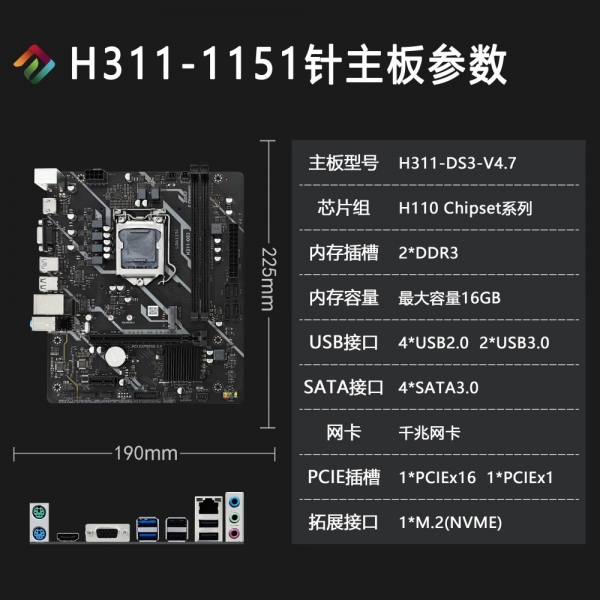

product size

190mm x 225mm x 4L

power consumption

Standby power consumption: 20~40W Full load power consumption: 120~160W (for reference only, excluding discrete graphics power consumption)
