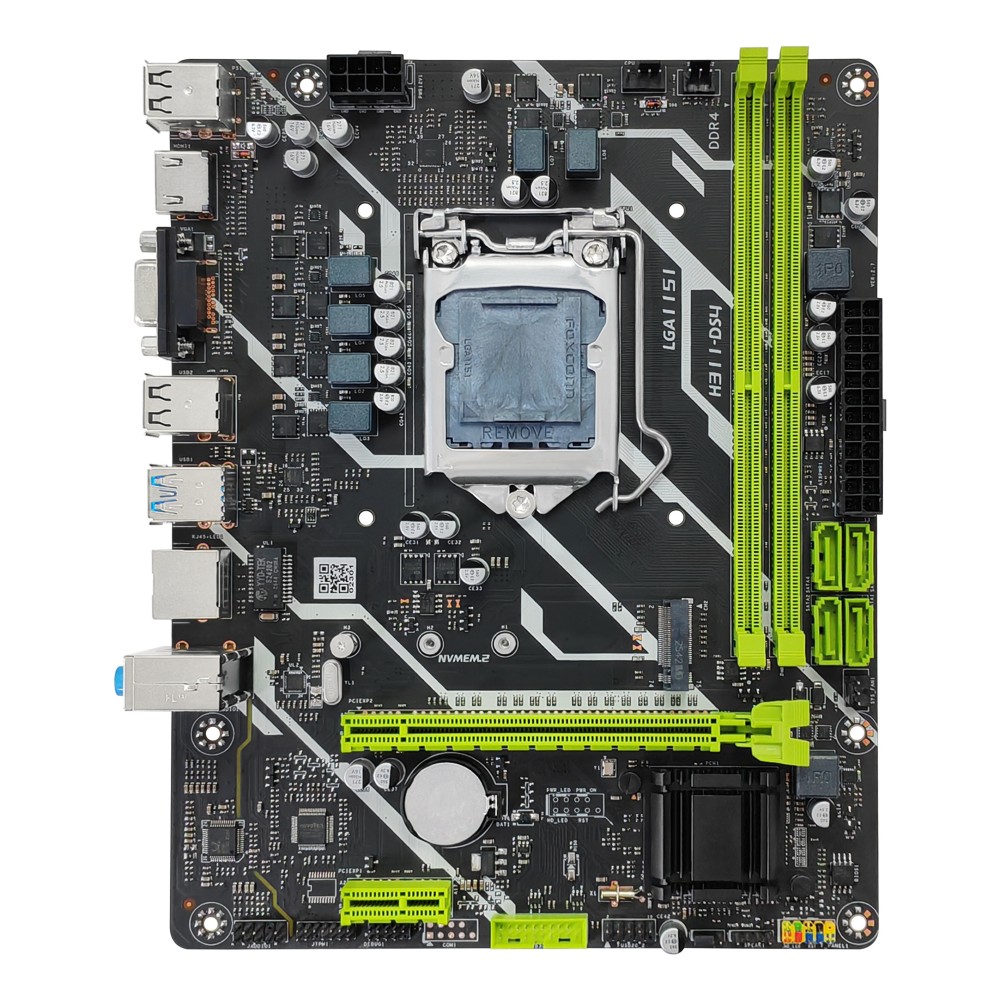

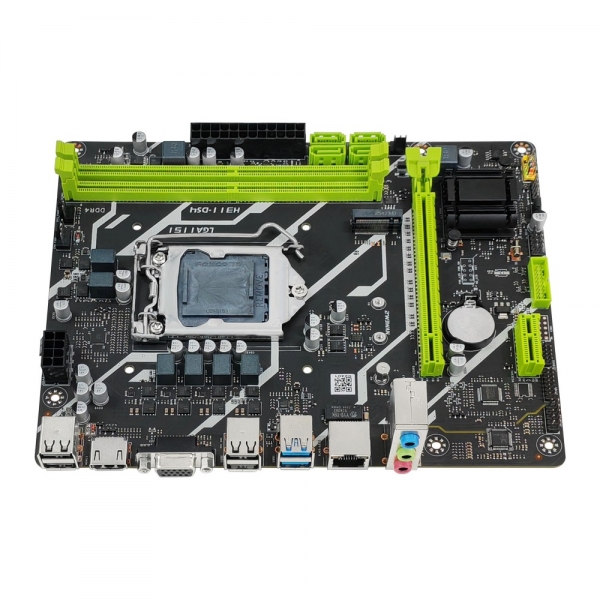

Motherboard chip

Intel Q150

CPU

Support LGA1151 slot-6th/7th/8th/9th generation processors:

Intel Core i7/i5/i3 processors;

Intel® Pentium® processor/Intel® Celeron® processor/Intel® Xeon® E3 processor;

Optional: G3900, G5400, I3-6100, I3-7100, I5-8500, I7-9700K, E3-1220 V5, etc.

memory

Dual channel memory;

2*288Pin-DDR4 DIMM slot, supporting up to 32GB；; Support 2666/2400/2133 MHz;

(Actual memory frequency support depends on processor type and memory stick)

save

1* M.2 slot (nvme); Support 2280/2260/2242 storage devices (M.2: Gen3x4).

4*SATA 3.0 interface

Display interface

1* HDMI 1.4 interface, 1*VGA interface (supporting synchronous dual display)

TPM

1*TPM 2.0 pin (14Pin)

network

1*Realtek Gigabit NIC interface (RJ45+LED)

PCIE slot

1*PCIEXP2 slot (Intel processor PCIe 3.0x16);

1*PCIEXP1 slot (Intel chipset PCIe 3.0x1);

audio frequency

1*Line_out； 1*Mic_In； 1*Line_In；

1*JAUDIO1 Front Audio Pin (Realtek HD Audio Chip)

Usb interface

Rear panel: 2 * USB 3.0; 4*USB2.0；

Front panel: 1 set of FUSB20_1 pins (2 USB2.0 ports can be extended);

1 set of FUSB30_1 pins (2 USB3.0 ports can be extended);

Functional pin

1*F_PANEL front panel pin; ; 1*CPU_FAN fan (4pin); 2*SYS_FAN fan (3 pin);

Power input

24Pin+8Pin ATX power socket

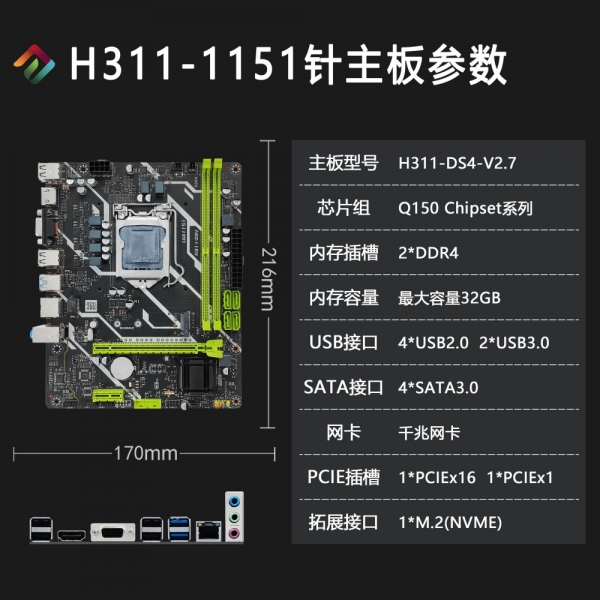

product size

170MM x 216 MM x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 27~30W Full load power consumption: 120W~ (for reference only)

(If you want to install hardware equipment with high power consumption, please use a high-power power supply.)

other

1*DEBUG diagnostic card pin; 1*JBAT clears CMOS pins; 1* Buzzer SPEAK
