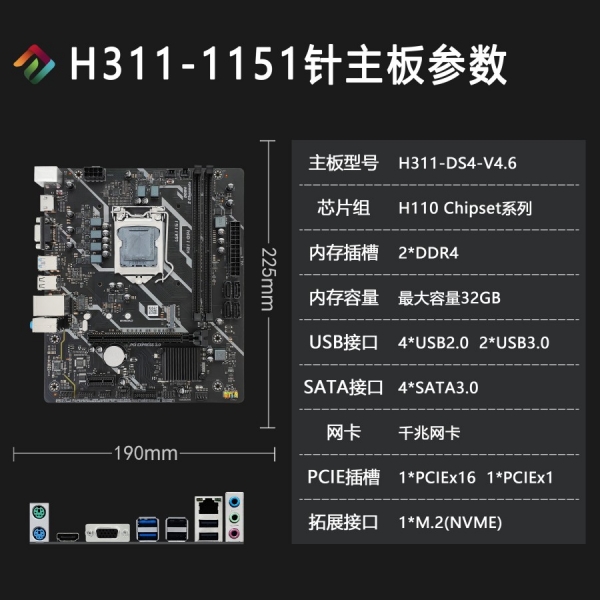

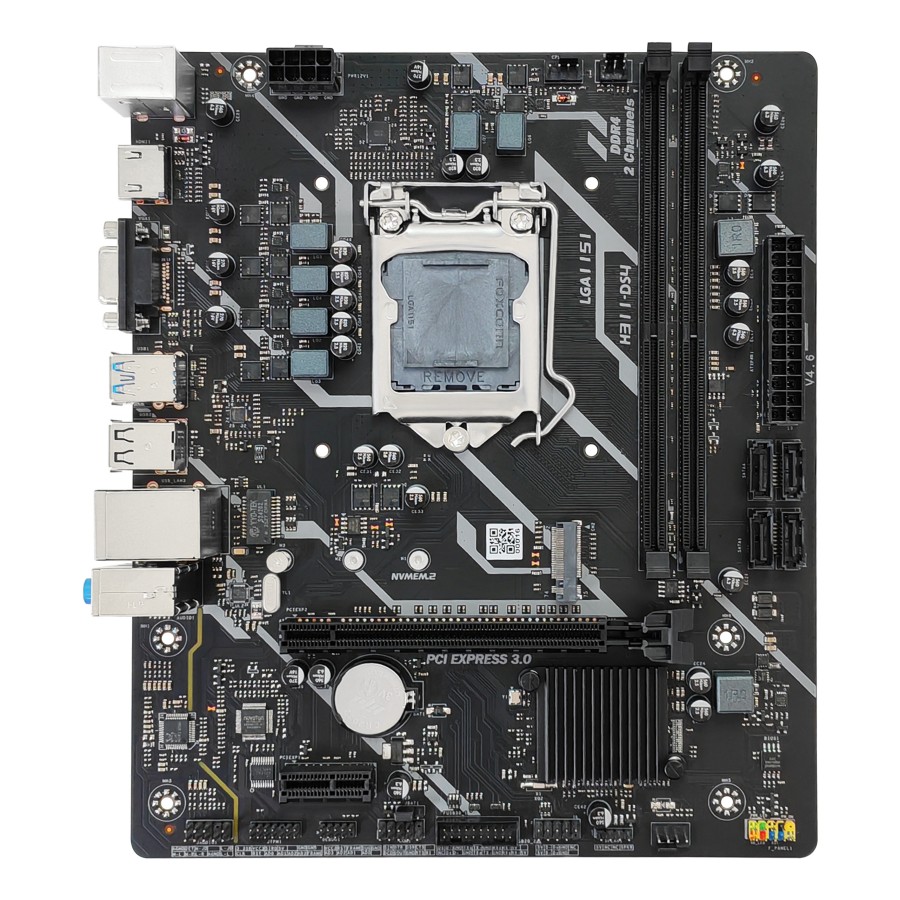

Motherboard chip

Intel H110

CPU

Intel 1151 Series CPU

Optional: i3-6100, i3-8100, i5-8400, I5-9400, I7-9700, I7-9700K, etc.

memory

2*DDR4 DIMM, 2666MHz/32G, single slot supports up to 16 G.

Cunzhu

1*M.2 slot (only NVME,PCIE2.0 x4 mode is supported); 4*SATA 3.0 interface

Display interface

1*HDMI； 1*VGA

audio frequency

1*Line out； 1*Mic In； 1*Line In； 1*F_Audio built-in pin

Audio chip

1*Realtek HD Audio Chip

PCIE slot

1*PCIE X16 slot (PCIE3.0 X16 signal)

1*PCIE X1 slot (PCIE 2.0 X1 signal)

network

1*RJ45 interface

Network card chip

1*Realtek Gigabit NIC chip

serial port

1*COM; The built-in serial port only supports RS232 mode.

TPM

Support TPM2.0

PS/2 interface

1*PS/2 keyboard and mouse

Usb interface

IO interface: 2 * USB 3.0; 4*USB2.0

Built-in pins: 1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

1 set of USB2.0 pins (2 USB2.0 ports can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin SYS fan; 1*3Pin SYS fan

Power input

24Pin+8Pin ATX power socket

product size

190 x 225mm x 4L;

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 20~45W Full load power consumption: 80~130W (for reference only, excluding discrete graphics power consumption)

other

1 JBAT jump cap; 2*5Pin diagnostic card interface
