Motherboard chip

Intel H310

CPU

Intel 1200 Series CPU

Optional: G5900, G6500, I3-10100, I5-10400, I5-10600K, I7-10700KF, etc.

memory

2*DDR4 DIMM, supporting XMP up to 2933MHz/64G, and single slot up to 32G.

Cunzhu

1*M.2 slot (supporting automatic switching between PCIE 2.0 x4 mode and NGFF 3.0 mode); 3*SATA3.0 interface

Network card chip

1*Realtek Gigabit NIC chip

Display interface

1*HDMI, 1*DP(VGA) interface

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

1*Realtek HD Audio Chip

PCIE

1*PCIE X16 slot (PCIE3.0 X16 signal)

1*PCIE X1 slot (PCIE2.0 X1 signal)

Usb interface

IO interface: 4*USB2.0, 2*USB3.0.

Built-in pins: 2 * USB2.0 (one set of USB2.0 pins can be extended by two USB 2.0)

2 * USB3.0 (one set of USB3.0 pins can be extended by two USB 3.0)

COM

1*COM pin

TPM

1*TPM pin

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan, 2*3Pin SYS fan; 1*4Pin buzzer pin; 1*JME pin

Power input

24Pin+8Pin ATX power socket

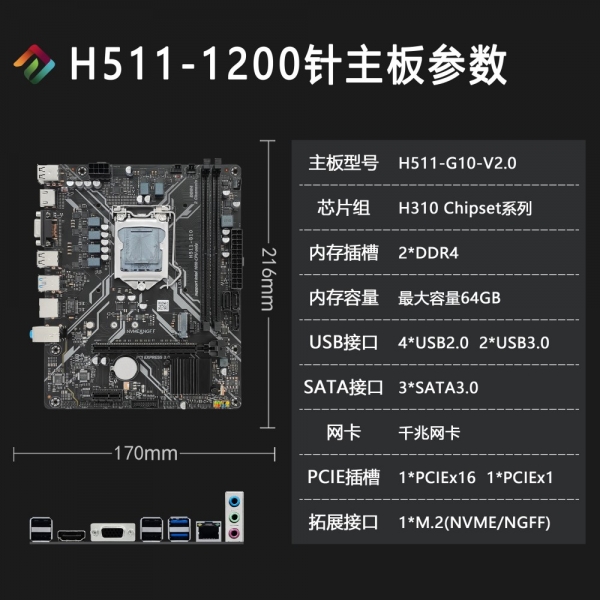

product size

216.00 mm x 170.00 mm x 4L

Working temperature

10℃~60℃

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 45~70W Full load power consumption: 180~300W

other

1*JCMOS jump cap; 2*5Pin diagnostic card interface
