Motherboard chip

Intel H55

CPU

Intel 1156 Series CPU

Optional: I3-530, I3-540, I5-660, I7-750, I7-860, etc.

memory

2*DDR3 DIMM, 1066MHZ,1333MHZ/16G, single slot supports up to 8 G.

Cunzhu

1*M.2 slot (only NGFF 2.0 mode is supported); 3*SATA 2.0 interface

Network card chip

1*Realtek 100 MB network card chip

Display interface

1*HDMI, 1*VGA interface

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

1*Realtek HD Audio Chip

PCIE

1*PCIE X16 slot (PCIE2.0 X16 signal)

1*PCIE X1 slot (PCIE2.0 X1 signal)

Usb interface

IO interface: 6*USB2.0

Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 ports can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan, 1*3Pin SYS fan; 1*4Pin buzzer pin

Power input

24Pin+8Pin ATX power socket

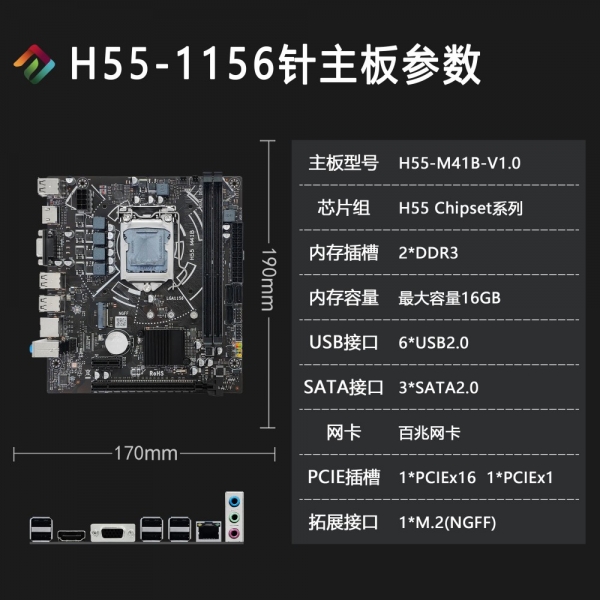

product size

170.00 mm x 190.00 mm x 4L

power consumption

Standby power consumption: 30~60W Full load power consumption: 120~150W

other

1*JCMOS jump cap
