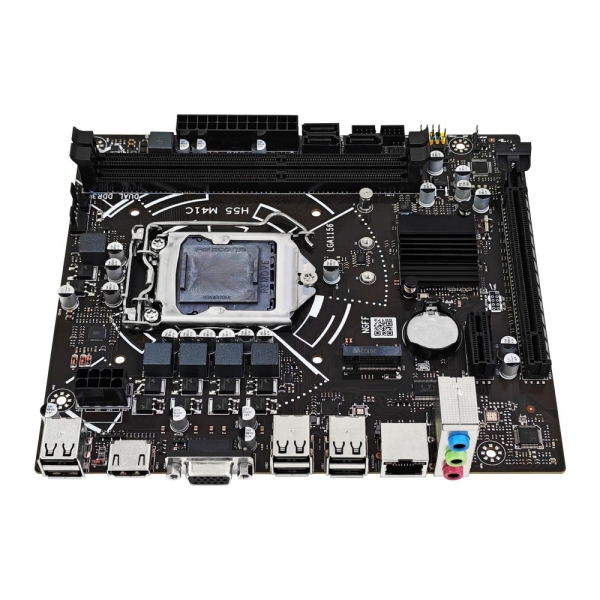

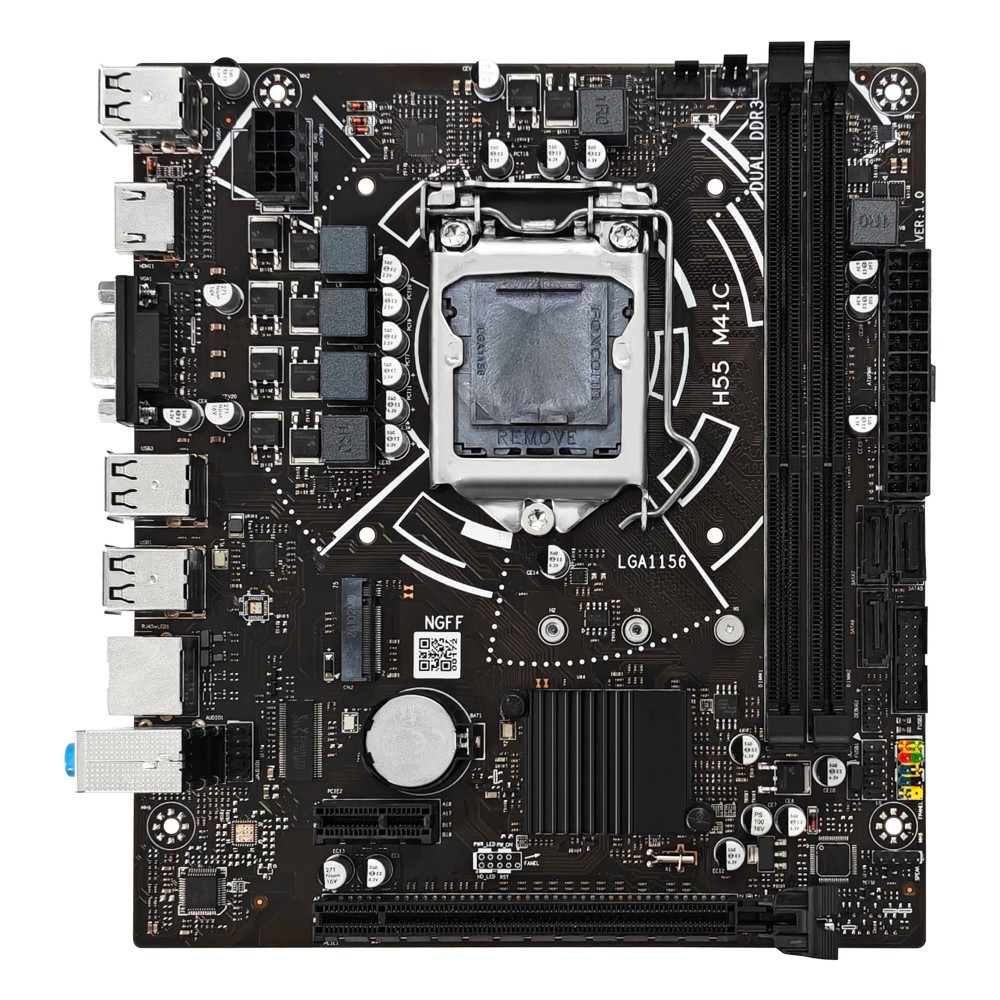

Motherboard chip

Intel 5 Series Chipsets

CPU

Support LGA1156 pin series processor

Optional: I3-530, I3-540, I3-550, I5-660, I5-750, I5-760, I7-860, I7-870, etc.

memory

2*DDR3 dual-channel DIMM；; 1600MHz/16G；

CPU with nuclear display: single slot can support 4G at most, and dual CPU can support 8G in total.

CPU without nuclear display: single slot can support 8G at most, and dual CPU can support 16G in total.

save

1*M.2 slot (only NGFF)； is supported); Support 2280/2260/2242 storage devices (M.2：SATA2.0).

3*SATA 2.0 interface

Display interface

1*HDMI interface

1*VGA interface (supporting synchronous dual display)

network

1*RJ45 interface

Network card chip

Realtek 100 MB network card chip

PCIE slot

1*PCIE_X16 slot (PCIE2.0 X16)

1*PCIE_X1 slot (PCIE1.0 X1)

audio frequency

1*Line_out； 1*Mic_In； 1*Line_In

1*JAUDIO1 Front Audio Pin (Realtek HD Audio Chip)

Usb interface

Rear panel: 6*USB2.0

Front panel: 1 set of USB2.0 pins (2 USB2.0 ports can be expanded)

1 set of USB3.0 pins (actually 2 USB2.0 ports can be expanded)

Functional pin

1*FPANEL front panel pin; 1*CPU fan (4pin); 1*SYS fan (3Pin)

Power input

24Pin+8Pin ATX power socket

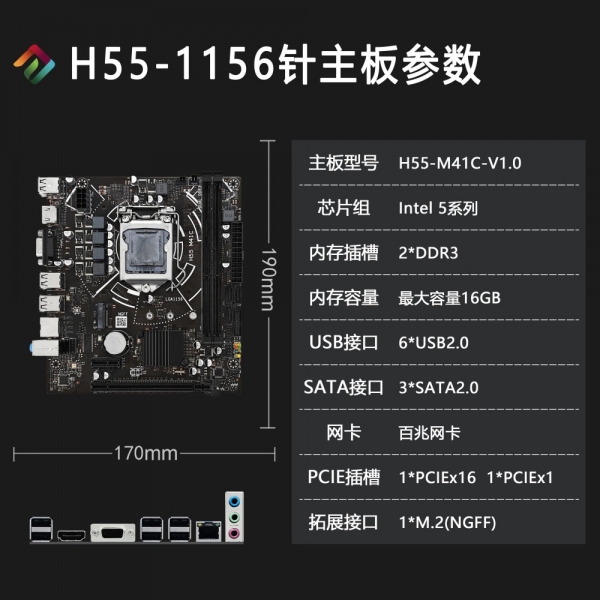

product size

170.00 mm x 190.00 mm x 4L

power consumption

Standby power consumption: 24~27W Full load power consumption: 58~60W (for reference only)

other

1*DEBUG diagnostic card pin; 1*JBAT clears the pin; 1*SPEAK buzzer pin
