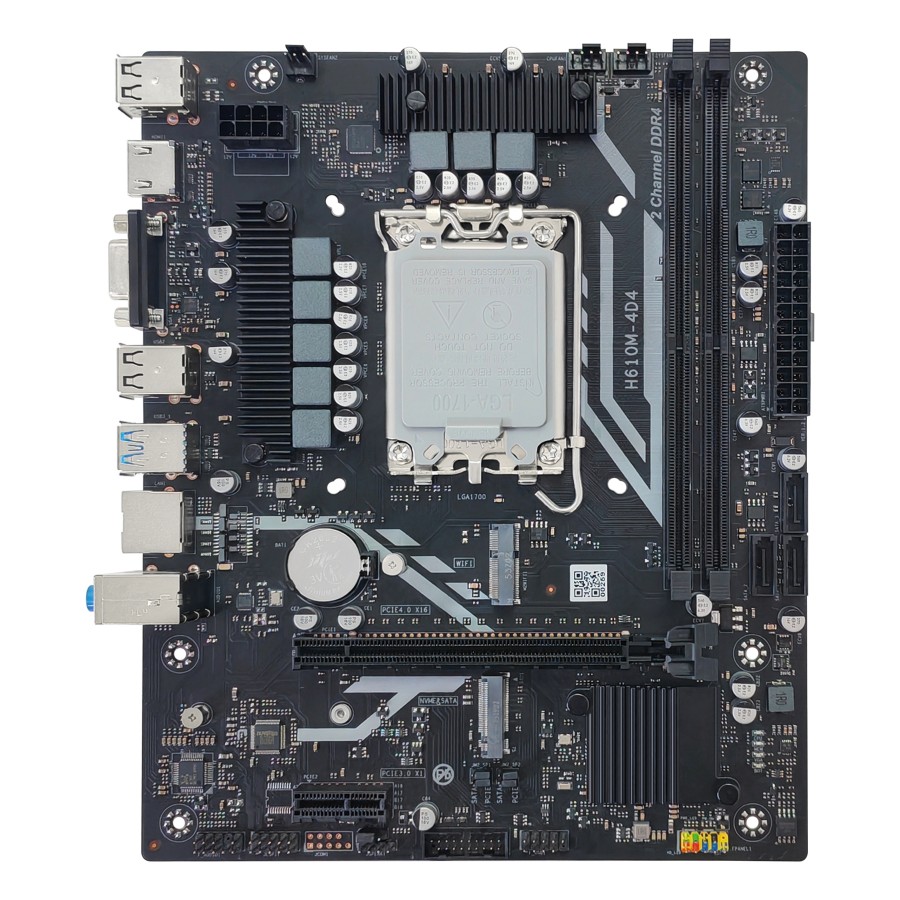

Motherboard chip

Intel H610

CPU

Intel 12th/13th/14th Generation LGA1700 Platform Processor

Optional: I3-12100, I5-13400, etc.

memory

2*DDR4 DIMM, 3200MHz/ maximum memory support 64G.

Cunzhu

1* M.2 interface (PCIE3.0X4 NVME SSD and SATA3.0, which need to be switched); 3*SATA 3.0 6Gbps interface

Display interface

1*HDMI interface, 1*VGA interface

network

1*RJ45 interface /1*M.2 WIFi interface (supporting Pcie protocol)

Network card chip

Realtek gigabit network card chip

PCIE slot

1*PCIE 4.0X16 slot; 1*PCIE3.0X1 slot

audio interface

3.5mm interface; 1*Line out； 1*Mic In； 1*Line In； 1*F_Audio built-in pin

Audio chip

Realtek HD audio chip

serial port

/

PS/2 interface

/

Usb interface

Rear interface: 2*USB3.0, 4 * USB 2.0;

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be extended);

1 set of USB3.0 pins (2 USB3.0 ports can be expanded);

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin SYS fan; 1*3Pin SYS fan;

Power input

24Pin+8Pin ATX power socket

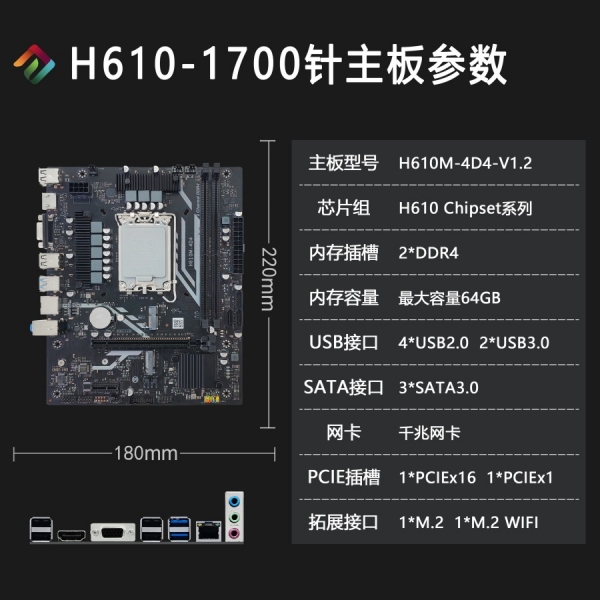

product size

180 x 220 mm x 4L;

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 20~45W Full load power consumption: 140~260W (for reference only)

other

1*JCMOS； Debug lamp
