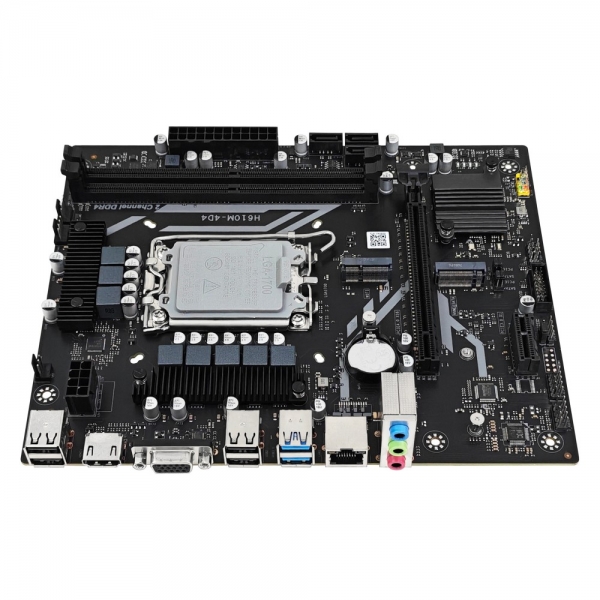

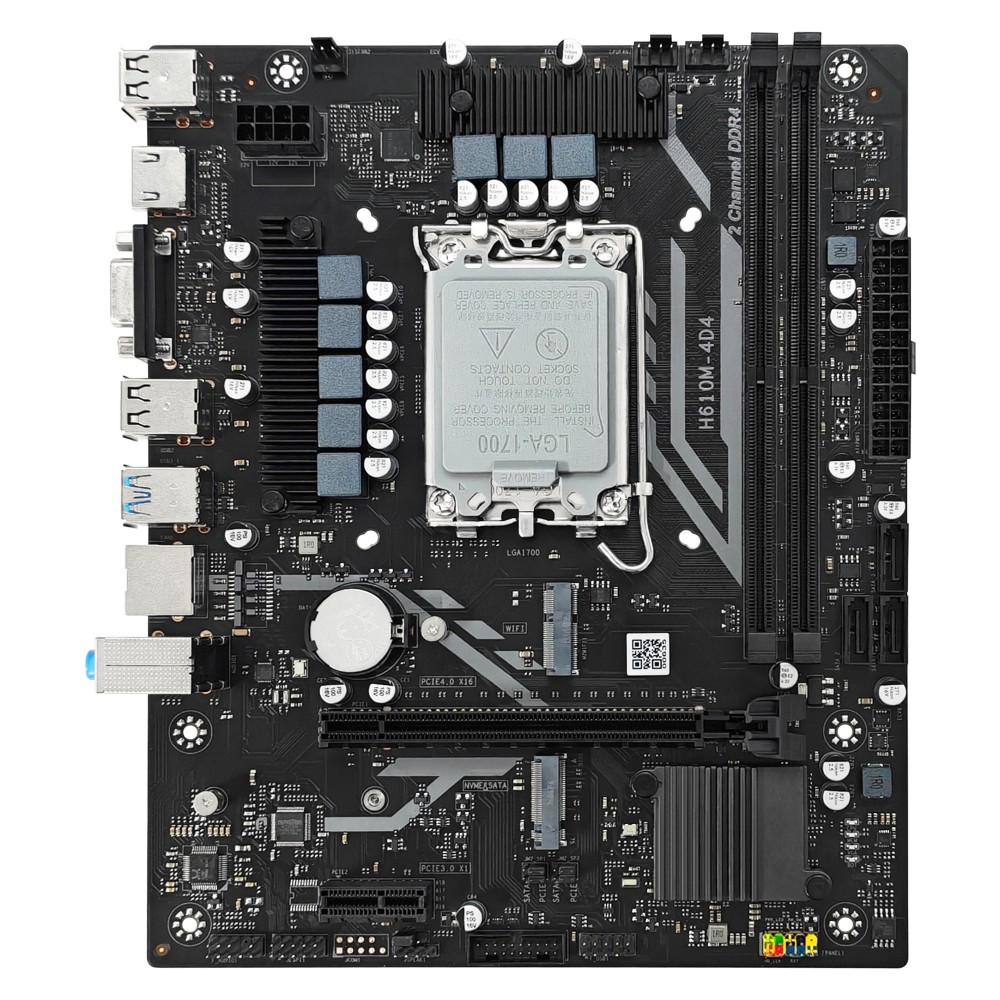

Motherboard chip

Intel 600 series

CPU

Intel 12th/13th/14th Generation LGA1700 Processor

Optional: I3-12100, I5-13400, etc.

memory

2*DDR4 DIMM, 3200MHz/64G, single slot supports 32G at most.

Cunzhu

1* M.2 interface (supports NVME3.0x4 and NGFF3.0 modes, and needs to switch the cap).

3*SATA 3.0 interface

Display interface

1*HDMI interface, 1*VGA interface

Network card chip

1*Realtek Gigabit NIC chip

WIFI

1*M.2 WIFI (supporting Pcie protocol)

audio interface

1*Line out； 1*Mic In； 1*Line In； 1*F_Audio built-in pin

Audio chip

1*Realtek HD Audio Chip

PCIE slot

1*PCIE X16 slot (PCIE4.0 X16 signal for processor)

1*PCIE X1 slot (chipset PCIE 3.0 X1 signal)

Usb interface

IO interface: 2*USB3.0, 4 * USB 2.0;

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be extended);

1 set of USB3.0 pins (2 USB3.0 ports can be expanded);

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin SYS fan; 1*3Pin SYS fan; 1*4Pin buzzer pin

Power input

24Pin+8Pin ATX power socket

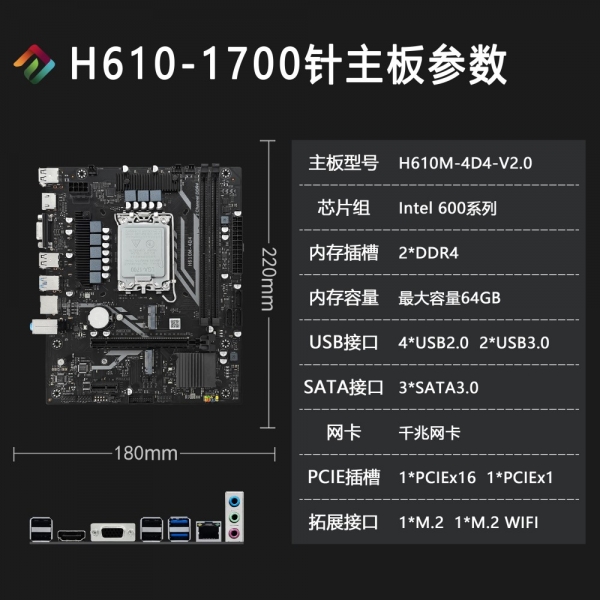

product size

180 x 220 mm x 4L;

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 20~45W Full load power consumption: 140~260W (for reference only)

other

1*JCMOS jump cap; 1*JESPI pin
