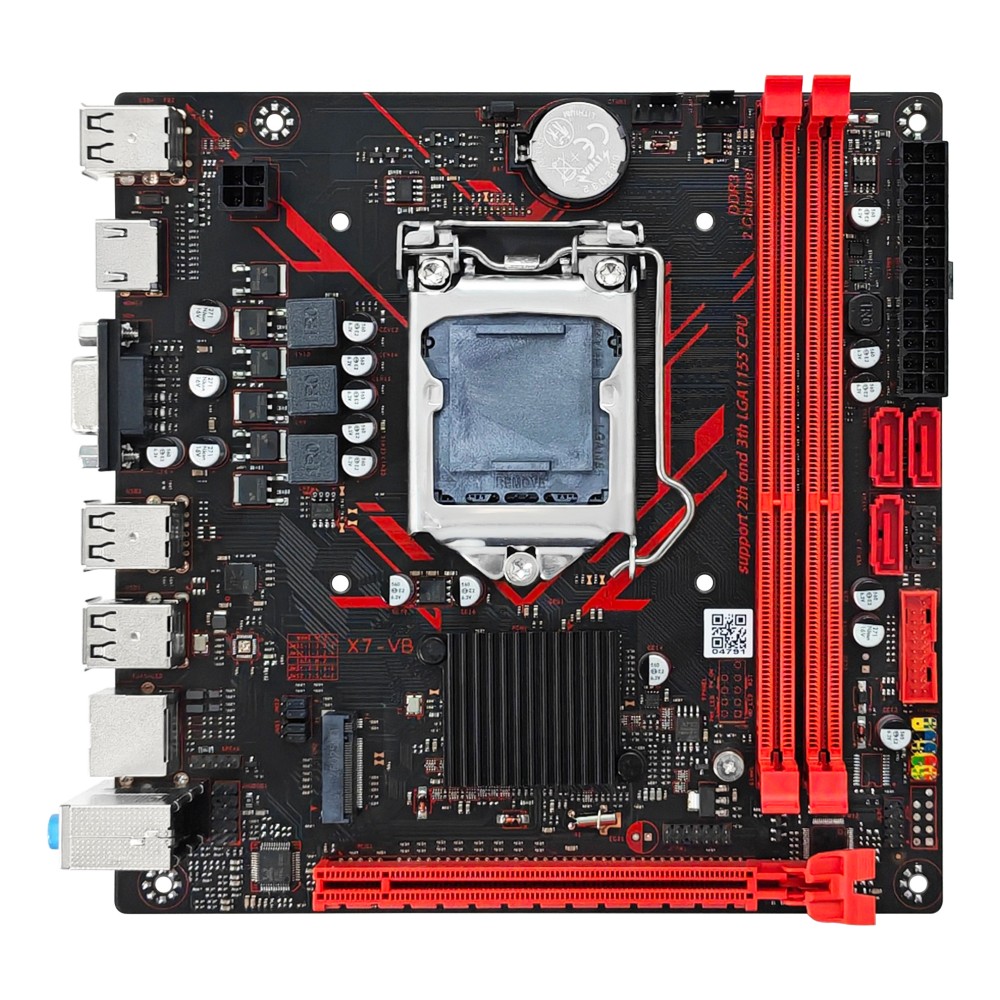

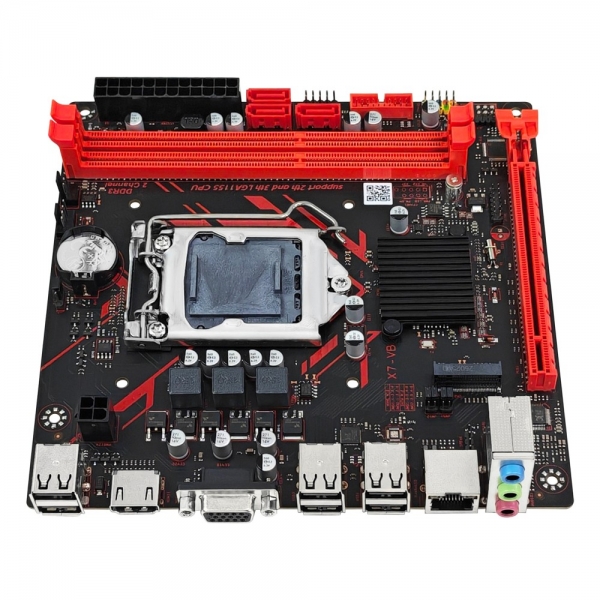

Motherboard chip

Intel H61 chipset

CPU

Support LGA1155 slot-2nd/3rd generation processor

Optional: G1620/I5-2400/I7-3770/I7-2600 and so on.

memory

Dual channel memory;

2*DDR3 DIMM slot, supporting the maximum memory of 16G (8G * 2); Support DDR3 1600/1333/1066MHz.

(Actual memory frequency support depends on processor type and memory stick)

save

1*M.2 slot (NVME&NGFF protocol); (M.2:PCIE2.0 x4 & SATA2.0)； Support 2280 type devices

JMS1/JMS2: M.2 mode switching pin

3*SATA 2.0 interface

Display interface

1*HDMI

1*VGA (supporting synchronous dual display)

Network function

1*RJ45 interface (Realtek 100M network card chip)

TPM

1*TPM pin (14Pin)

PCIE expansion slot

1*PCIE1 slot (PCIe2.0/3.0 x8 slot of Intel processor); (depending on CPU)

audio frequency

1*Line_out； 1*MIC_In； 1*Line_In；

1*JAUDIO front audio connector (Realtek HD audio chip)

Usb interface

Rear panel: 6*USB2.0

Front panel: 1 set of FUSB1 pins (2 USB2.0 ports can be extended)

1 set of FUSB3 pins (2 USB2.0 ports can be expanded)

Functional pin

1*FPANEL front panel pin; 1* CFAN fan (4pin); 1* SFAN fan (3 pin); 1* Buzzer SPEAK

Power input

24Pin+4Pin ATX power socket

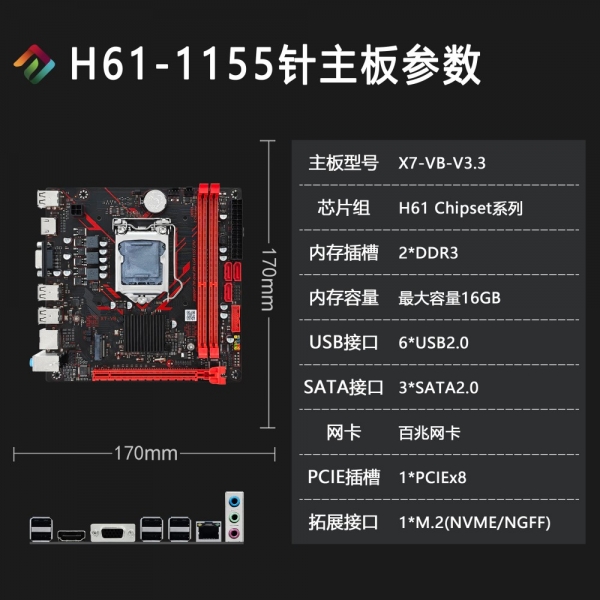

product size

170mm x 170mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 30~35W Full load power consumption: 105W~125W (for reference only)

(If you want to install hardware equipment with high power consumption, please use a high-power power supply.)

other

1* Diagnostic card pin; 1*JBAT clear pin
