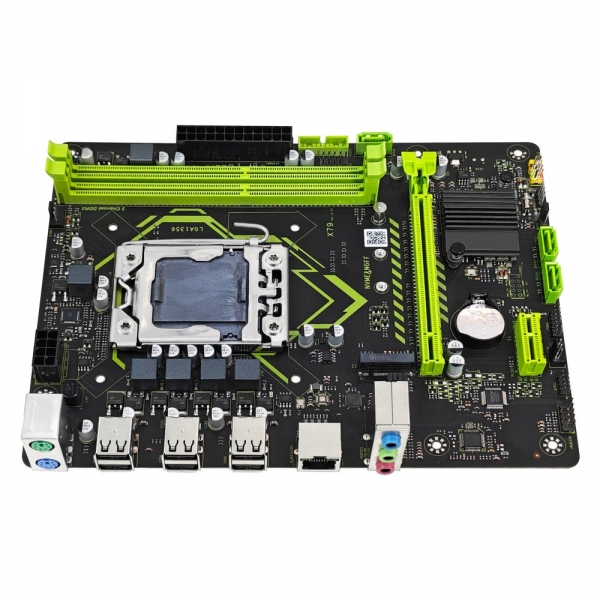

Motherboard chip

Intel 6 series chipset

CPU

Intel LGA1356 CPU

Optional: E5-2450/E5-2440V2/E5-2470V2, etc.

memory

2*DDR3 DIMM, 1866MHz/64G, single slot maximum support 32G.

Cunzhu

1*M.2 slot (PCIE3.0x4 and SATA modes are supported, and cap hopping is required);

3 * SATA (the maximum 3*SATA(SATA depends on the chipset) (Q67: supports 2*SATA2.0, 1*SATA3.0) (H61: supports 3*SATA2.0).

audio frequency

1*Line out； 1*Mic In； 1*Line In； 1*F_Audio built-in pin

Audio chip

1* Realtek HD Audio Chip

PCIE slot

1*PCIE X16 slot (processor 3.0 X16 signal)

1*PCIE X1 slot (chipset 2.0 X1 signal)

network

1*RJ45 interface

Network card chip

1*Realtek Gigabit NIC chip

TPM interface

1*14Pin TPM interface

PS/2 interface

1*PS2 keyboard; 1*PS2 mouse

Usb interface

IO interface: 6*USB2.0

Built-in pins: 2 sets of FUSB pins (4 USB2.0 ports can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan

Power input

24Pin+8Pin ATX power socket

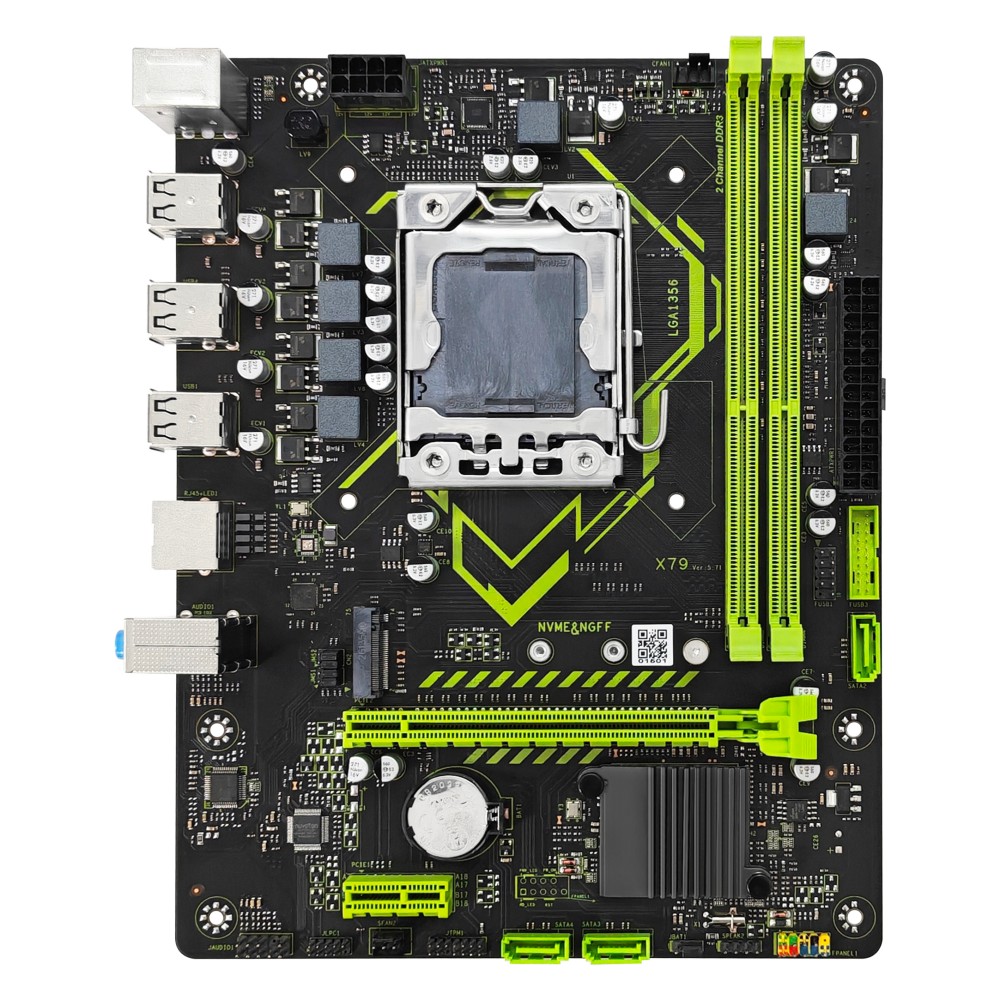

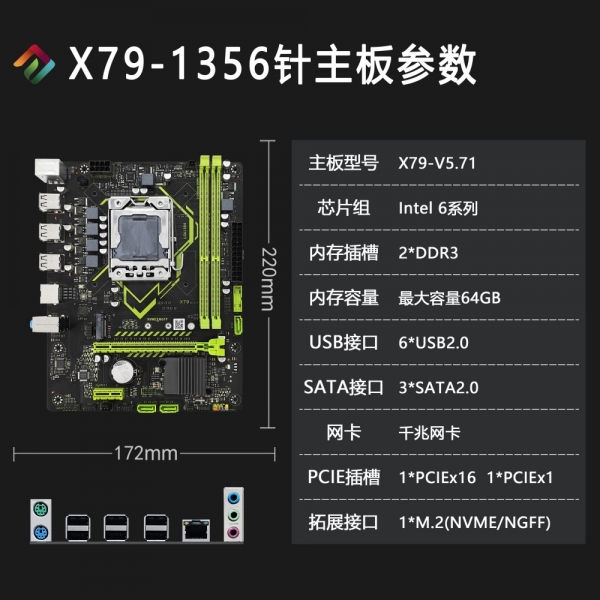

product size

172 x 220mm x 4L

power consumption

Standby power consumption: 20~40W Full load power consumption: 140~160W (for reference only)

other

1 JBAT jump cap; 2*5Pin diagnostic card interface
