Motherboard chip

Intel X79

CPU

Intel LGA2011-0 CPU

Optional: E5-1650/E5-2689/E5-2696V2, etc.

memory

2*DDR3 DIMM, 1866MHz/64G, single slot maximum support 32G.

Cunzhu

1*M.2 slot (PCIE3.0x4 and SATA3.0 modes are supported, and dip switch switching is required);

1*SATA 3.0，3*SATA2.0

audio frequency

1*Line out； 1*Mic In； 1*Line In； 1*F_Audio built-in pin

Audio chip

1* Realtek HD Audio Chip

PCIE slot

1*PCIE X16 slot (PCIE3.0 X16 signal)

1*PCIE X1 slot (PCIE2.0 X1 signal)

network

1*RJ45 interface

Network card chip

1*Realtek Gigabit NIC chip

TPM interface

1*14Pin TPM interface

Usb interface

IO interface: 8*USB2.0

Built-in pins: 2 sets of FUSB pins (4 USB2.0 ports can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan

Power input

24Pin+8Pin ATX power socket

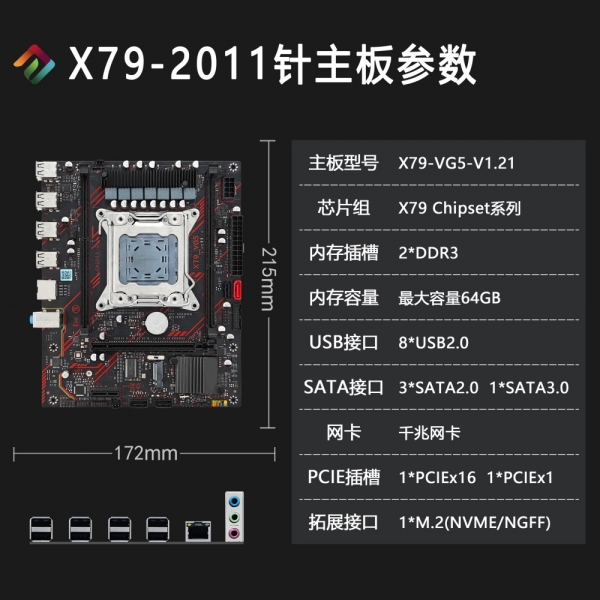

product size

172.03 x 215mm x 4L

power consumption

Standby power consumption: 20~40W Full load power consumption: 300~350W (for reference only)

other

1 JBAT jump cap; 2*5Pin diagnostic card interface
