Motherboard chip

Intel X79

CPU

Intel Xeon E5 LGA2011 processor

Optional: E52680V2, E52670V2, E52696V2, E52687V2 and so on.

memory

4*DDR3 DIMM, dual channel (black as the main channel and red as the secondary channel), 1066/1333/1600/1866MHZ, and single slot supports 32G at most.

Cunzhu

1* M.2 slot (NVME/NGFF dip switch switching); , 1*SATA3.0 interface, 3*SATA 2.0 interface

network

1*RJ45 interface

Network card chip

Realtek RTL8111H Gigabit NIC Chip

PCIE slot

1*PCIE X1 slot; 1*PCIE X16 slot

audio frequency

1*Line out； 1*MIC In； 1*Line In； 1*F_Audio built-in pin

Audio chip

Realtek ALC662 HD audio chip

TPM

1*TPM external pin

Usb interface

IO interface: 8*USB2.0 interface.

Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 ports can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan

Power input

24Pin+8Pin ATX power socket

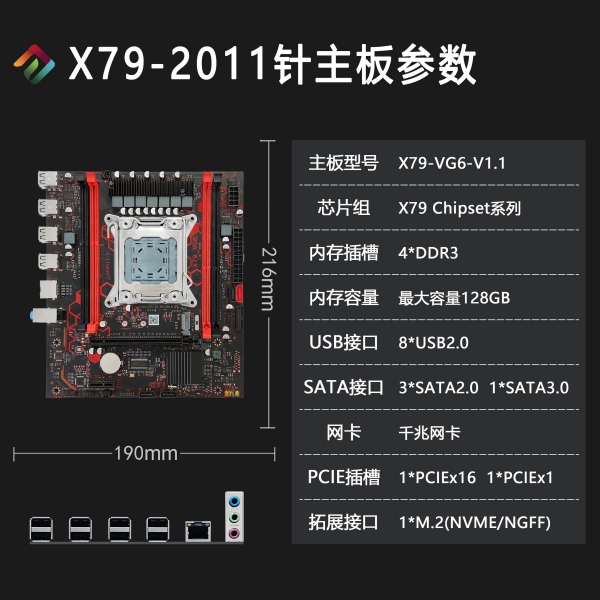

product size

M -ATX motherboard specification, 216MM x 190MM x 4L

power consumption

Standby power consumption: 50~70W Full load power consumption: 180~260W

other

1*BAT； 2*5Pin diagnostic card interface
