Motherboard chip

Intel X79

CPU

Intel Xeon E5 LGA2011 processor

Optional: E52696V2, E52687W, E52692V2, E52690V2, E52680V2 and so on.

memory

4*DDR3 DIMM, dual channel (black as the main slot and red as the auxiliary slot), 1333/1600/1866MHZ, single slot supports 32G at most.

Cunzhu

1* M.2 slot (supports dialing switching between PCIE 3.0 x4 mode and NGFF 3.0 mode)

1*SATA 3.0； 3*SATA 2.0 interface

Network card chip

1*Realtek Gigabit NIC chip

audio frequency

1*Line out； 1*MIC In； 1*Line In； 1*F_Audio built-in pin

Audio chip

1*Realtek HD Audio Chip

PCIE

1*PCIE X16 slot (PCIE3.0 X16 signal)

1*PCIE X1 slot (PCIE2.0 X1 signal)

TPM

1*TPM pin

Usb interface

IO interface: 8*USB2.0

Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 ports can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan

Power input

24Pin+8Pin ATX power socket

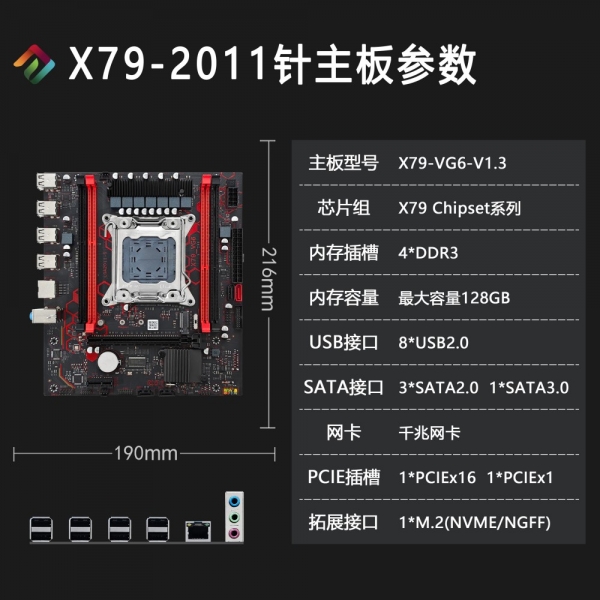

product size

216.00 mm x 190.00 mm x 4L

power consumption

Standby power consumption: 50~70W Full load power consumption: 180~260W

other

1*JCMOS jump cap; 2*5Pin diagnostic card interface
