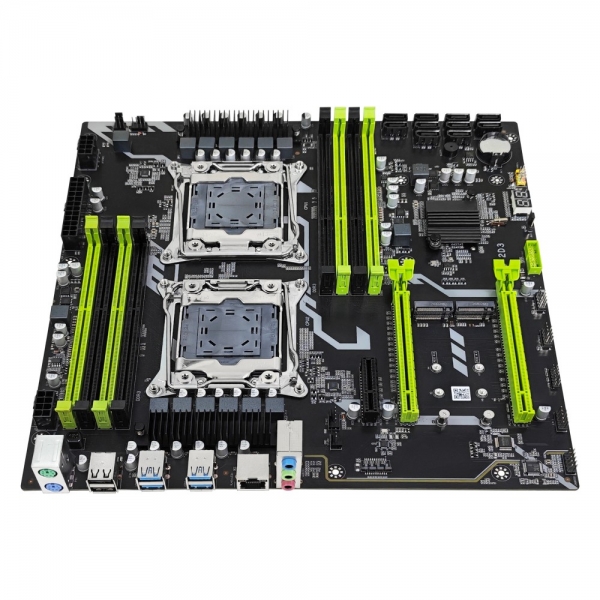

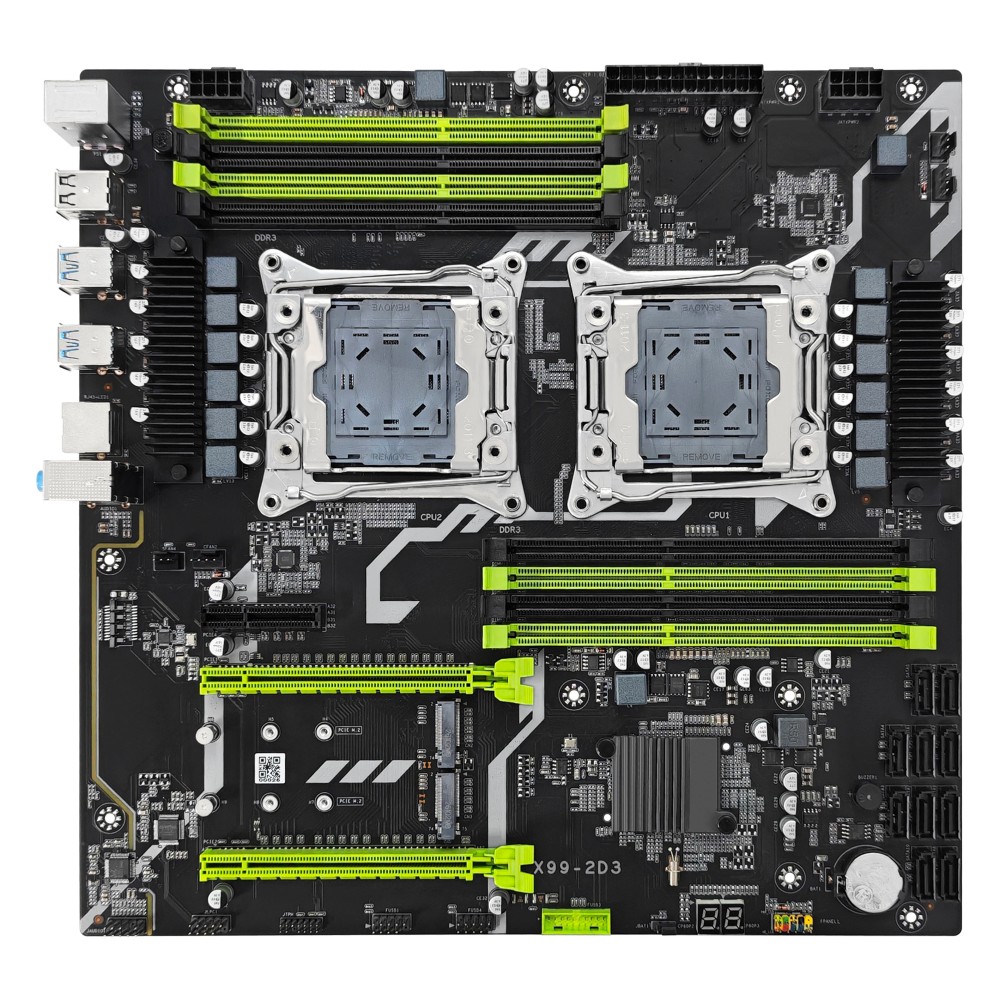

Motherboard chip

Intel C610 Series Chipsets

CPU

Intel Xeon E5 LGA2011-3 processor

Optional: E5266v3, E5 2673V3, E5 2678V3, E5 2696V3, etc.

memory

8 *DDR3 DIMM, quad-channel, 1333/1600/1866MHz, single slot maximum support 32G.

(Black slot is the primary channel, and green slot is the secondary channel)

Cunzhu

2*M.2 slot (PCIE 3.0 x4 mode only)

10 *SATA3.0 interface

Network card chip

1*Realtek Gigabit NIC chip

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin; Realtek HD audio chip

PCIE

2*PCIE X16 slot (PCIE3.0 X16 signal)

1*PCIE X4 slot (PCIE3.0 X4 signal)

Usb interface

IO interface: 2*USB2.0, 4*USB3.0.

Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 pins can be extended)

1 set of USB3.0 pins (2 USB3.0 can be expanded)

PS2

1*PS2 keyboard mouse interface

TPM

1*14 Pin TPM pin

Functional pin

1*FPANEL panel pin; 2*4Pin CPU fan, 2*3Pin SYS fan.

Power input

24Pin+8Pin+8Pin ATX power socket

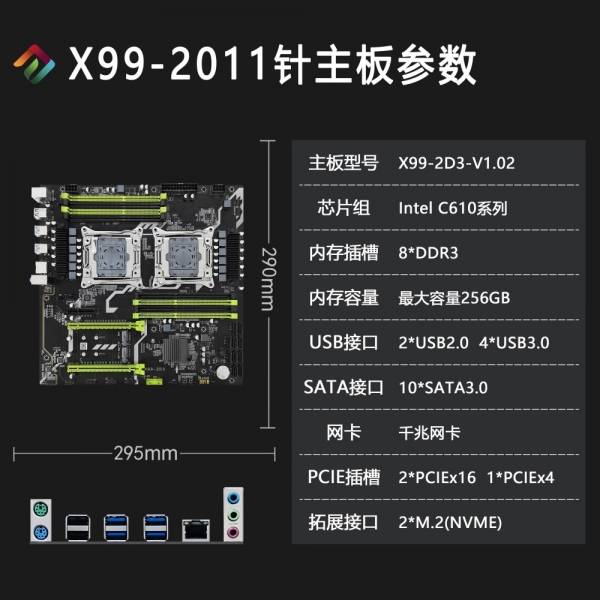

product size

290.00 mm x 295.00 mm x 6L

power consumption

Standby power consumption: 120~180W Full load power consumption: 460~560W (for reference only)

other

1*JBAT jumping cap; 1* buzzer; 1* Diagnostic card; 2*5Pin diagnostic card interface
