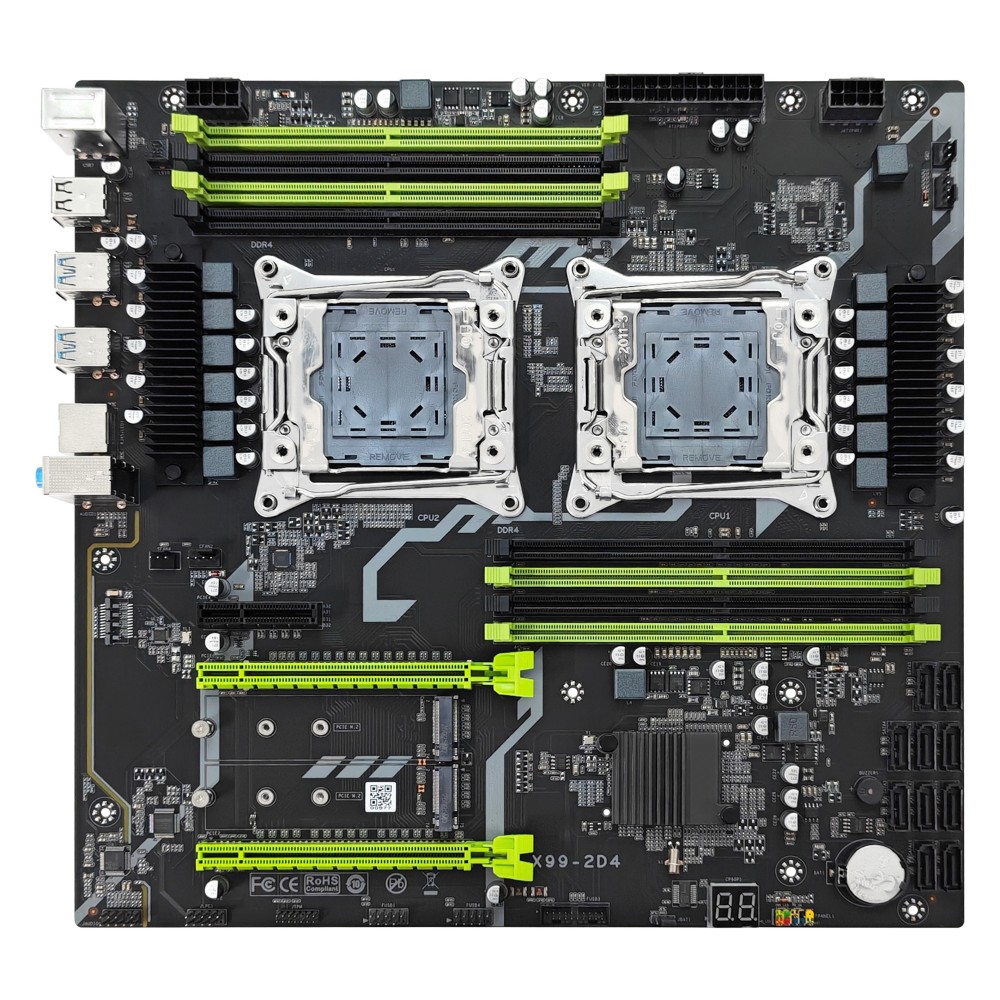

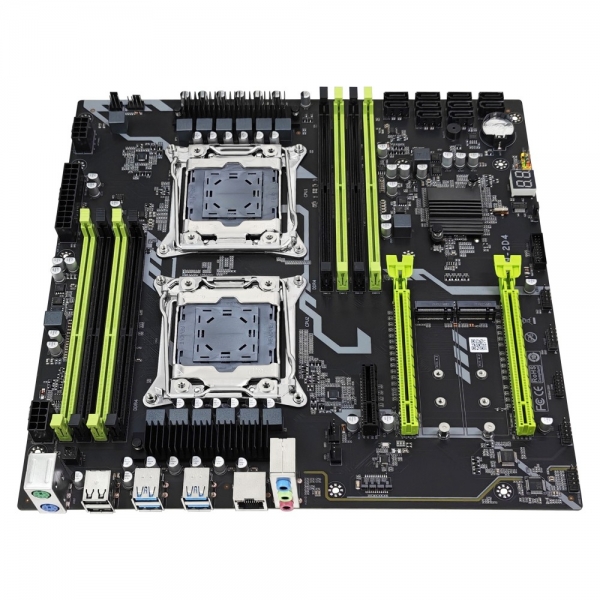

Motherboard chip

Intel C610 series

CPU

Intel LGA2011-3 dual-channel CPU

Optional: E5-2603v3/2666v3/2678v3/2696v3/2603v4/2680v4/2696v4 and so on.

memory

8*DDR4 DIMM, 2133/2400MHz, maximum support of 256G (32G*8), green slot as the main channel.

Cunzhu

2*M.2 slot (NVME protocol); 10*SATA3.0 interface

External TPM

1*14Pin TPM pin

network

1*RJ45 interface

Network card chip

Realtek gigabit network card chip

PS/2

1 KB interface and 1 MS interface.

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

Realtek HD audio chip

Usb interface

IO interface: 4*USB3.0, 2*USB2.0;

Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 ports can be expanded);

1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

PCIE

2*PCIE X16 slot (PCIE3.0 X16 signal)

1*PCIE X4 slot (PCIE3.0 X4 signal)

Functional pin

1*FPANEL panel pin; 2*4Pin CPU fan; 2*3Pin SYS fan

Power input

24Pin+2*8Pin ATX power socket

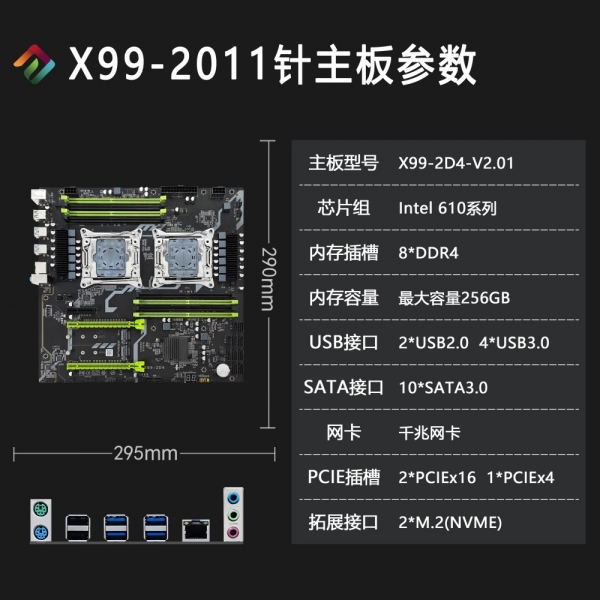

product size

290 x 295mm, 6-layer PCB

other

1*JBAT pin; 2*5Pin diagnostic card interface
