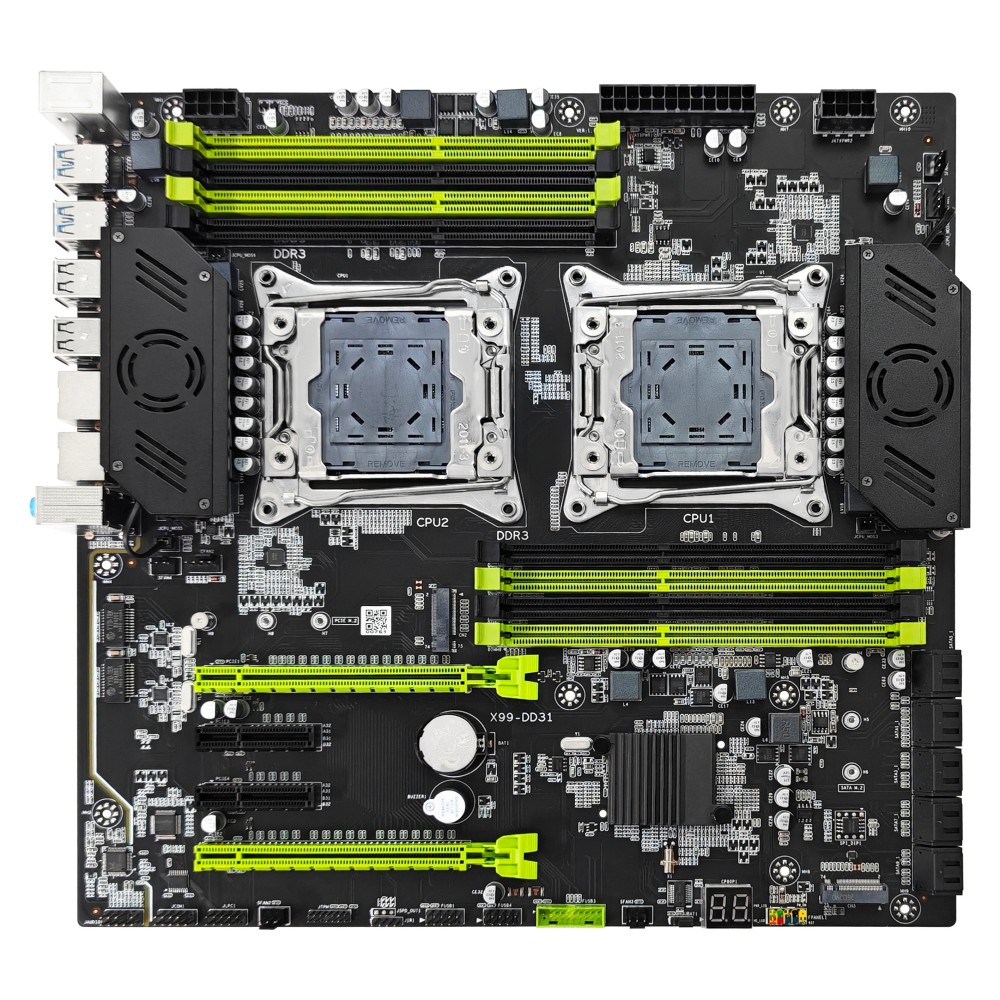

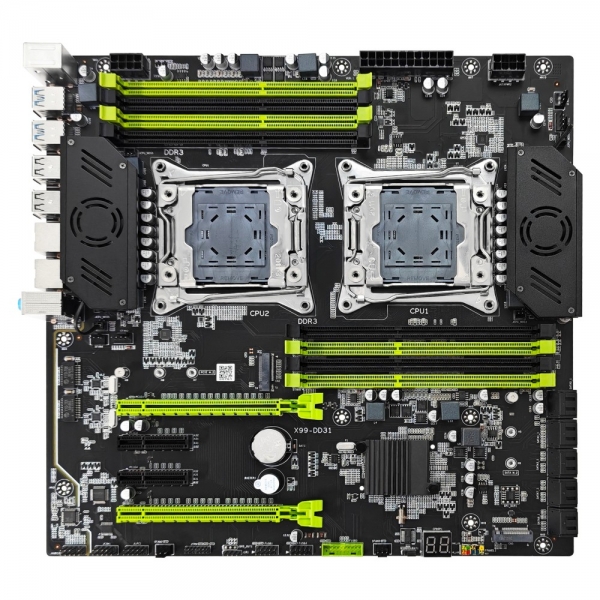

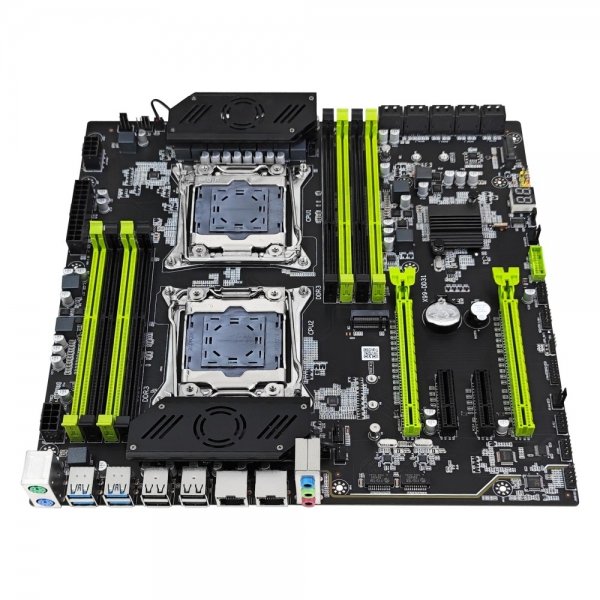

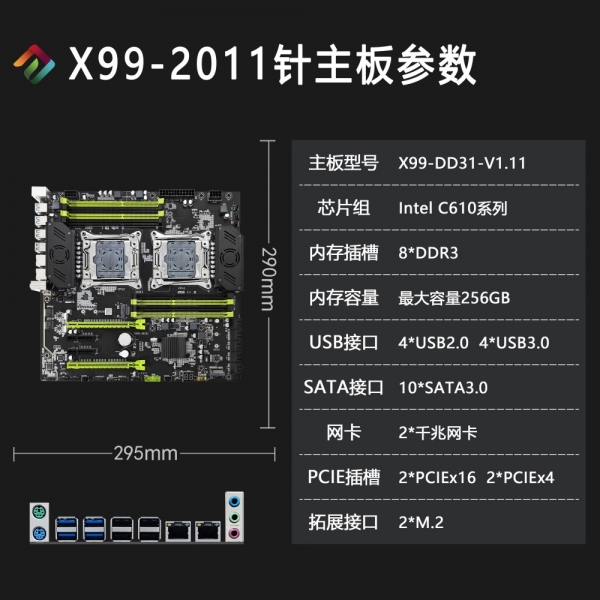

Motherboard chip

Intel C610 Series Chipsets

CPU

Intel LGA2011-3 CPU

memory

Dual channel memory; (Black is the main channel; Green is the secondary channel)

8*DDR3 DIMM slot, supporting up to 256 GB (32 GB * 8); Support 1066/1333/1600 MHz;

(Actual memory frequency support depends on processor type and memory stick)

save

1* PCIE M.2 slot; Support 2280/2260/2242 storage devices (M.2: PCIe 3.0x4).

1* SATA M.2 slot; Support 2280/2260/2242 storage devices (M.2：SATA3.0).

10*SATA 3.0 interface

TPM

1*TPM 2.0 pin (14Pin)

serial port

1* Built-in serial port

PS/2

1*PS/2 keyboard; 1* PS/2 mouse

network

2*Realtek Gigabit NIC interface

PCIE slot

2*PCIE_x16 slot (PCIe3.0 x16)

2*PCIE_x4 slot (PCIe3.0 x4)

audio frequency

1*Line_out； 1*Mic_In； 1*Line_In；

1*JAUDIO1 Front Audio Pin (Realtek HD Audio Chip)

Usb interface

Rear panel: 4 * USB 3.0; 4*USB2.0；

Front panel: 2 sets of USB2.0 pins (4 USB2.0 ports can be expanded);

1 set of USB3.0 pins (2 USB3.0 ports can be expanded);

Functional pin

1*FPANEL front panel pin; 2*CPU fan (4pin); 4* Chassis fan (3 pin); 4*CPU_MOS fan (2Pin)

Power input

24Pin+8Pin+8Pin ATX power socket

product size

290mm x 295 mm x 6L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

other

1* diagnostic card pin (jlpc); 1*CMOS clear pin (JBAT)
