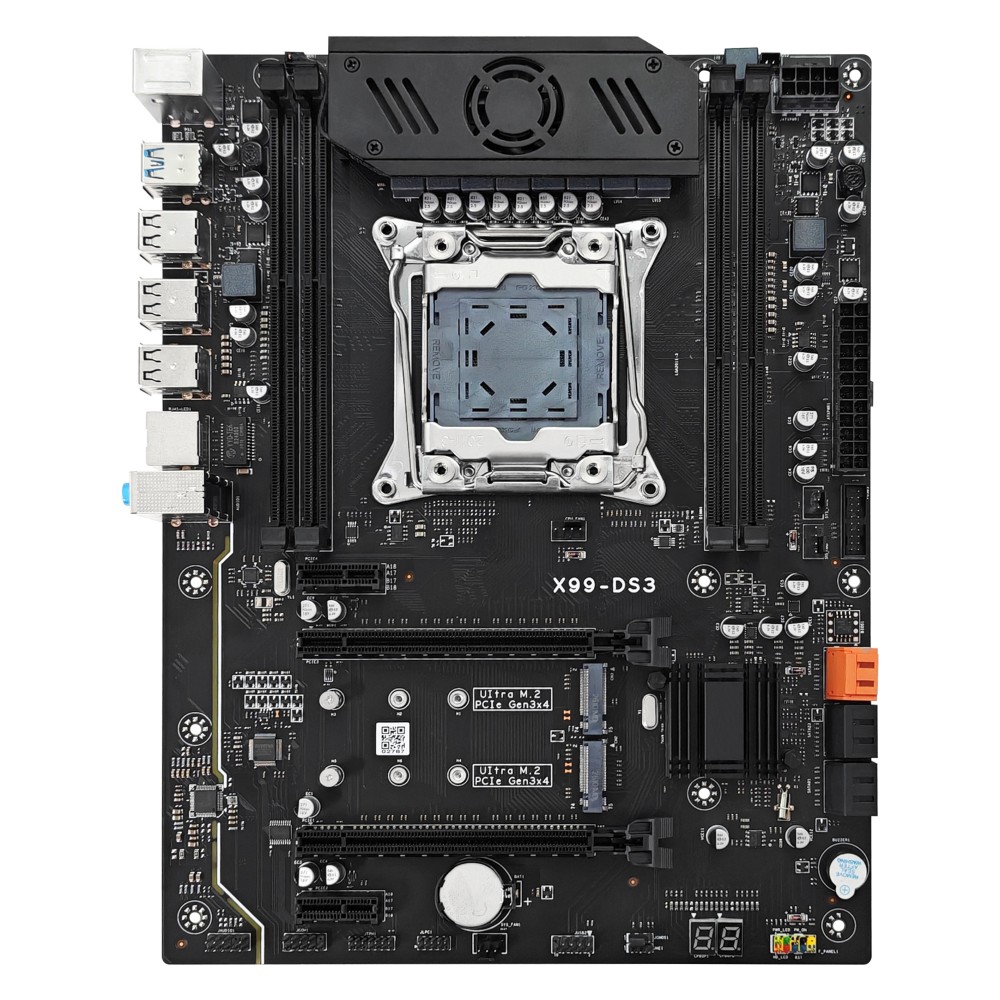

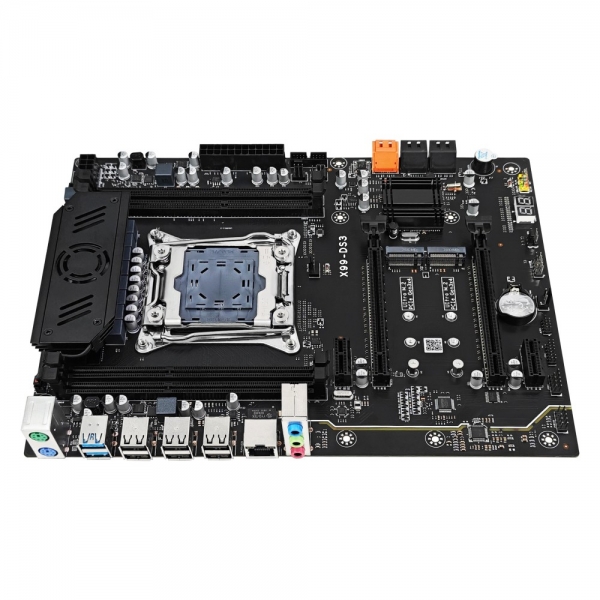

Motherboard chip

Intel 8 series chipset

CPU

Intel LGA2011-3 CPU

Optional: E52673v3/E52676v3/E52666v3/E52678v3/E52696v3/E52686v4/E52696v4 and so on.

memory

4*DDR3 DIMM, 1866MHz/128G, single slot maximum support 32 G.

Cunzhu

2*M.2 slot (only PCIE3.0 x 4 mode is supported);

6 * SATA (the maximum rate of SATA depends on the chipset) (B85: SATA 3.0 * 4+SATA 2.0 * 2) (Q87: SATA 3.0 * 6)

audio frequency

1*Line out； 1*Mic In； 1*Line In； 1*F_Audio built-in pin

Audio chip

1*Realtek HD Audio Chip

PCIE slot

2*PCIE X16 slot (processor 3.0 X16 signal)

2*PCIE X1 slot (chipset 2.0 X1 signal)

network

1*RJ45 interface

Network card chip

1*Realtek Gigabit NIC chip

PS/2 interface

1*PS/2 keyboard; 1*PS/2 mouse

TPM interface

1*14Pin TPM interface

Usb interface

IO interface: 2 * USB 3.0; 6*USB2.0

Built-in pins: 1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

1 set of USB2.0 pins (2 USB2.0 ports can be expanded)

COM

1* Built-in COM pin

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin SYS fan; 2*3Pin SYS fan;

Power input

24Pin+8Pin ATX power socket

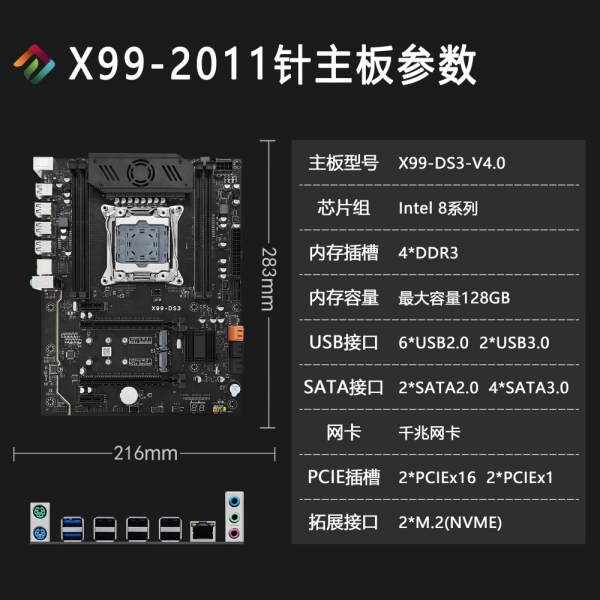

product size

215.77 x 282.93mm x 6L

power consumption

Standby power consumption: 20~40W Full load power consumption: 250~350W (for reference only)

other

1 JCMOS jump cap; 1 JME pin; 2*5Pin diagnostic card interface
