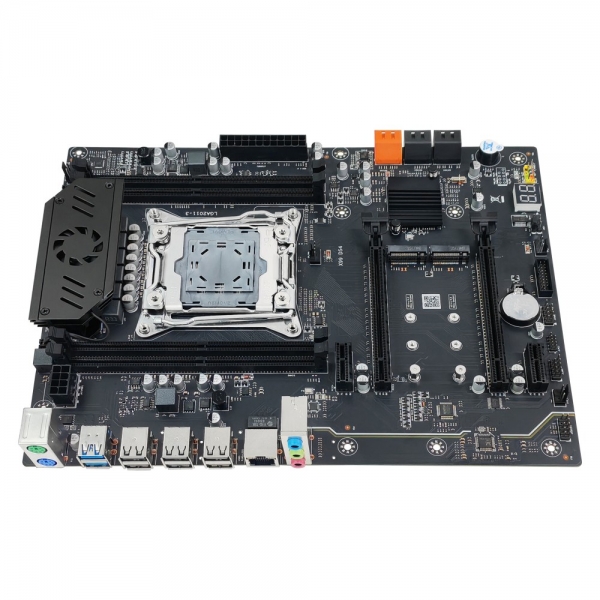

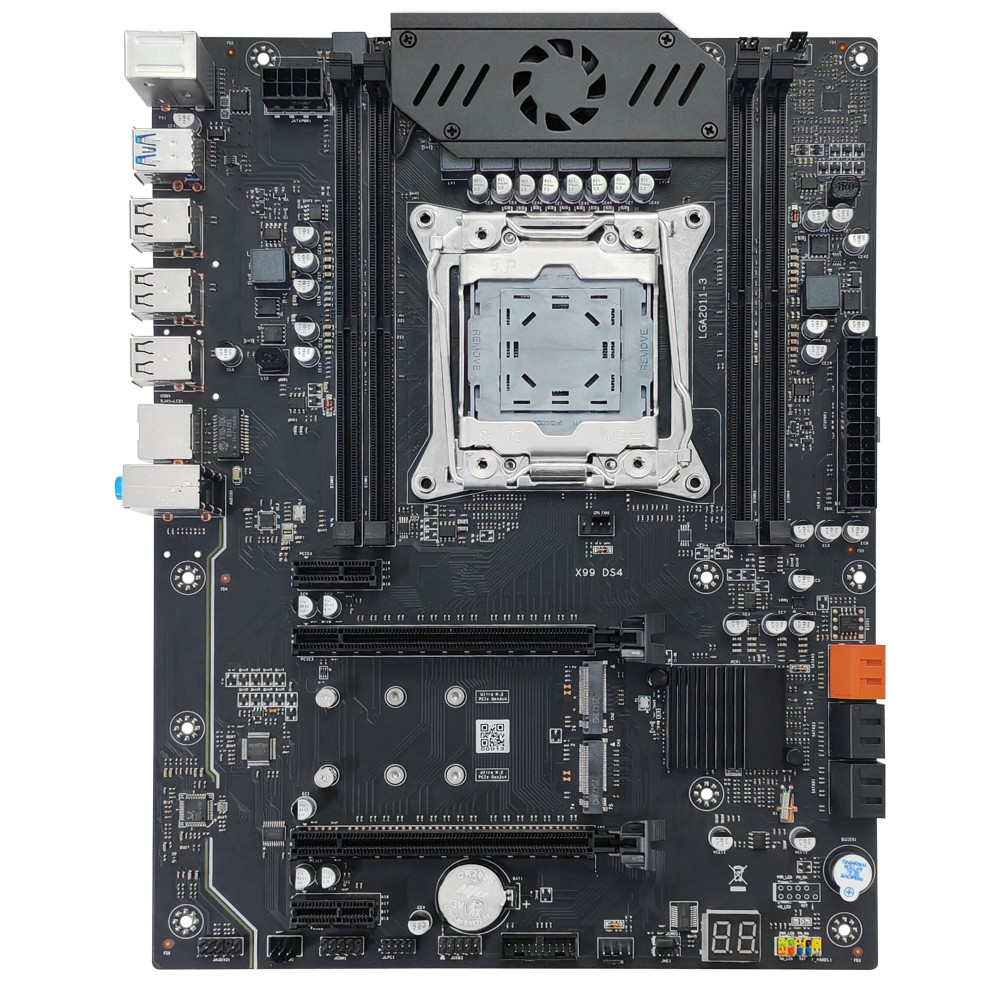

Motherboard chip

Intel B85

CPU

InteI LGA 2011-3 specification slot processor; (e.g. E5-2678v3/E5-2696v3/E5-2696v4/E5-1650v3, etc.)

memory

Four channels of memory;

4*DDR4; 288-Pin DIMM slot, supporting 2133/2400MHz, and a single slot can support 32GB at most.

(Actual memory frequency support depends on processor type and memory stick)

save

2* NVME M.2 slot (pcie 3.0x4); Support 2280/2260/2242 devices.

4* SATA 3.0 interface; 2* SATA 2.0 interface

Network function

1*Realtek Gigabit NIC interface;

PCIE expansion slot

PCIE1 slot (Intel processor PCIe3.0 x16)

PCIE3 slot (Intel processor PCIe3.0 x16)

PCIE4 slot (Intel chipset PCIe2.0 x1)

PCIE2 slot (Intel chipset PCIe2.0 x1)

PS2

1*PS2 keyboard; 1*PS2 mouse

audio frequency

1*Line_out； 1*MIC_In； 1*Line_In

1*JAUDIO1 Front Audio Pin (Realtek HD Audio Chip)

serial port

1* Built-in serial port (serial port only supports RS232 mode)

Usb interface

Rear panel: 6 * USB 2.0; 2* USB3.0

Front panel: 1 set of JUSB2 pins (expandable 2 * USB2.0 port)

1 set of FUSB3 pins (expandable 2 * USB3.0 port)

Functional pin

1*F_PANEL front panel pin; 1* CPU_FAN fan (4pin); 2* SYS_FAN fan (3 pin); 1* SYS_FAN3 fan (4Pin);

2*JCPU_MOS fan (2Pin)

Power input

24Pin+8Pin ATX power socket

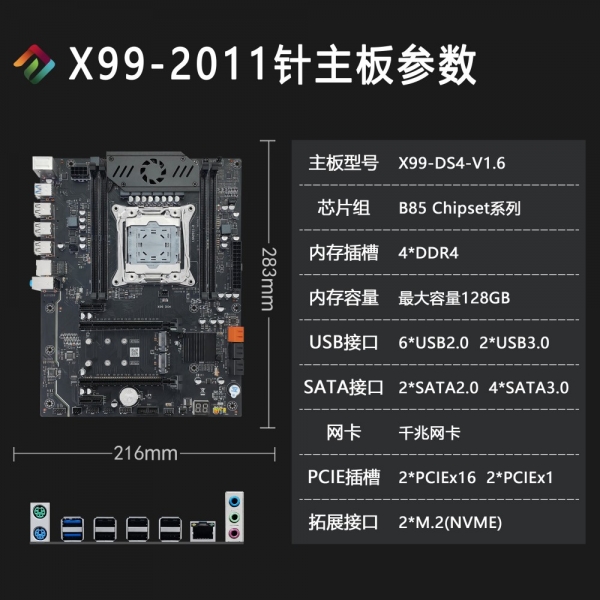

product size

215.77mm x 282.93mm x 6L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 60-65W Full load power consumption: 270~275W (for reference only) (excluding GPU power consumption)

(If you want to install hardware equipment with high power consumption, please use a high-power power supply.)

other

1*JCOMS clears the pin; 1*JLPC diagnostic card interface; 1*JME pin
