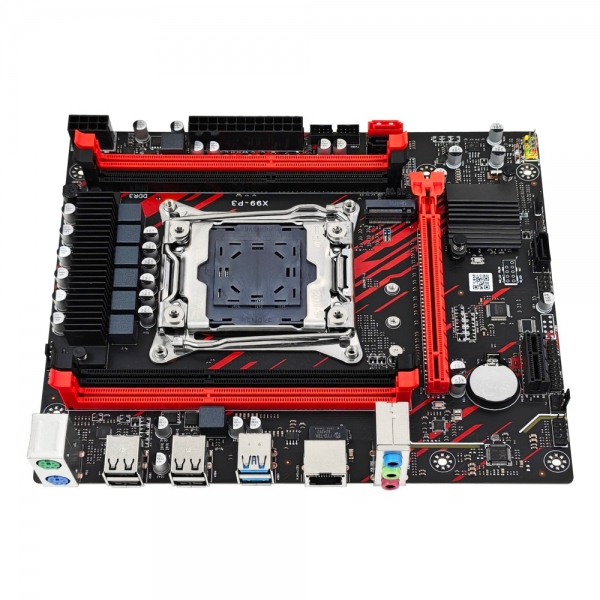

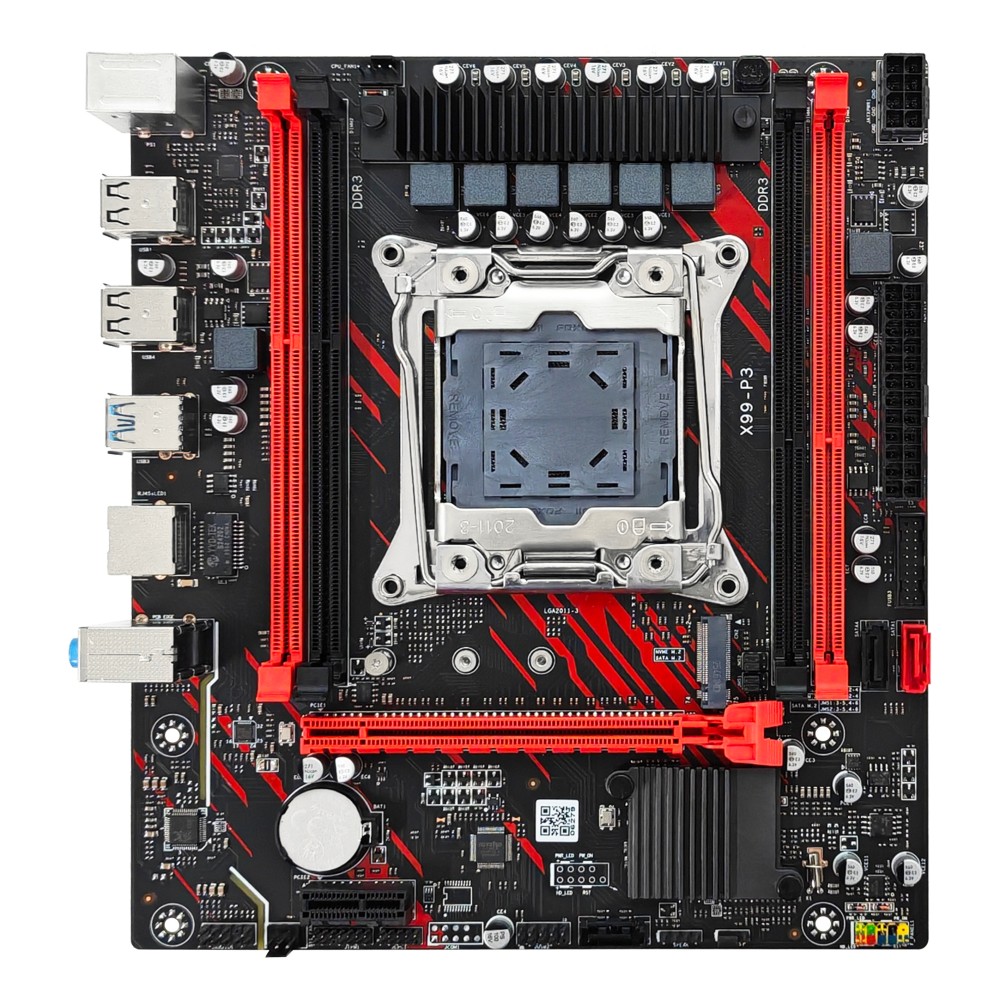

Motherboard chip

Intel H81

CPU

Intel LGA2011-3 CPU

Optional: E52673v3/E52676v3/E52666v3/E52678v3/E52696v3/E52686v4/E52696v4 and so on.

memory

4*DDR3 DIMM, 1866MHz/128G, single slot supports up to 32G (dual channel, red memory slot is the main channel).

Cunzhu

1*M.2 slot (PCIE3.0x4 and SATA3.0 modes are supported, so it needs to be switched); 1*SATA 3.0, 2*SATA2.0 interface

audio frequency

1*Line out； 1*Mic In； 1*Line In； 1*F_Audio built-in pin

Audio chip

1*Realtek HD Audio Chip

PCIE slot

1*PCIE X16 slot (PCIE3.0 X16 signal)

1*PCIE X1 slot (PCIE2.0 X1 signal)

network

1*RJ45 interface

Network card chip

1*Realtek Gigabit NIC chip

PS/2 interface

1*PS/2 keyboard and mouse

TPM

1*14Pin TPM pin

Usb interface

IO interface: 2 * USB 3.0; 4*USB2.0

Built-in pins: 2 sets of FUSB front pins (4 USB2.0 ports can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan; 1*JCMOS pin

1*Speak pin (buzzer); 1*JLPC pin (diagnostic card)

Power input

24Pin+8Pin ATX power socket

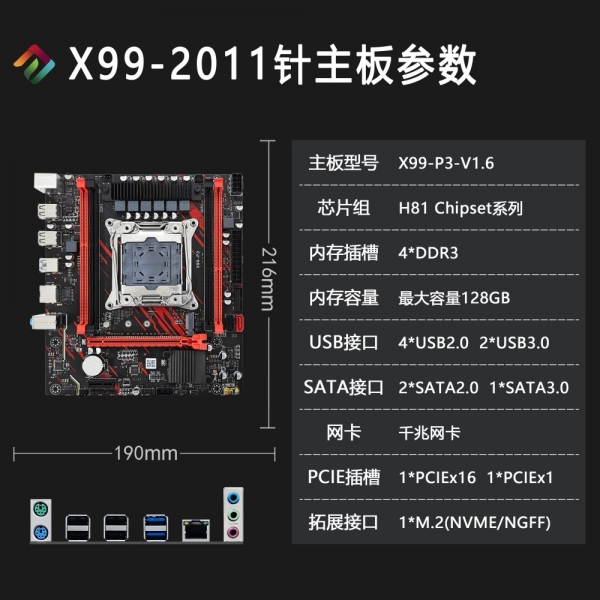

product size

190 x 216 mm x 4L;

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 20~40W Full load power consumption: 200~300W (for reference only, excluding discrete graphics power consumption)
