Motherboard chip

Intel 8 series chipset

CPU

Intel LGA2011-3 CPU

Optional: E52673v3/E52676v3/E52666v3/E52678v3/E52696v3/E52686v4/E52696v4 and so on.

memory

Dual channel memory (red memory slot is the main channel)

4*DDR3 DIMM, supporting 1333/1600/1866 MHz; Maximum support 128G, single slot maximum support 32G.

save

1*M.2 slot (NVME&NGFF); Support 2280/2260/2242 storage devices (M.2:PCIE3.0 x4&SATA3.0).

JMS 1/JMS 2: M.2 Mode Switching Jumping Cap

1*SATA3.0； 2*SATA2.0

audio frequency

1*Line out； 1*Mic In； 1*Line In；

1*JAUDIO Front Audio Pin (Realtek HD Audio Chip)

PCIE slot

1*PCIE1 slot (PCIE3.0 X16 signal for processor)

1*PCIE2 slot (chipset PCIE2.0 X1 signal)

network

1*Realtek Gigabit NIC chip

PS/2 interface

1*PS/2 keyboard; 1*PS/2 mouse

TPM

1*TPM2.0 pin (14Pin)

Usb interface

Rear panel: 2 * USB 3.0; 4*USB2.0

Front panel: 2 sets of USB front pins (4 USB2.0 ports can be expanded)

Functional pin

1*F_PANEL front panel pin; 1* CPU fan (4pin); 1* Chassis fan (3 pin); 1*JCMOS clear pin;

1*Speak pin (buzzer); 1*JLPC pin (diagnostic card)

Power input

24Pin+8Pin ATX power socket

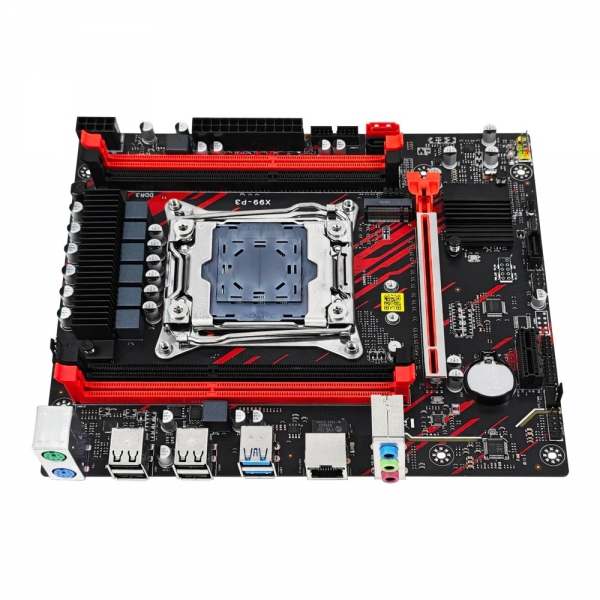

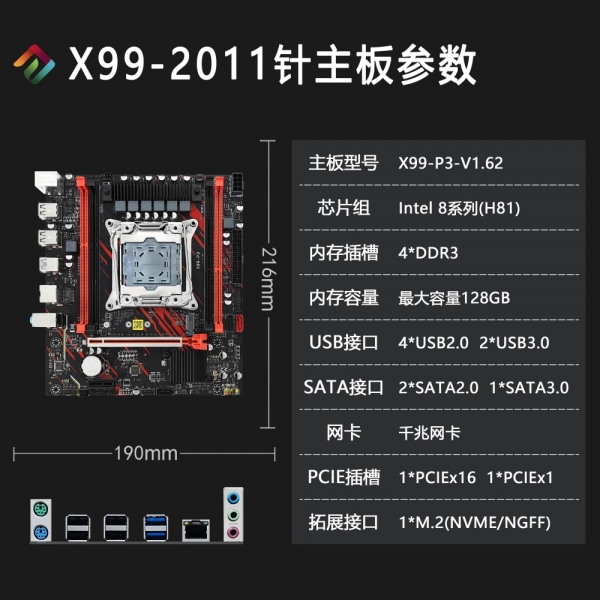

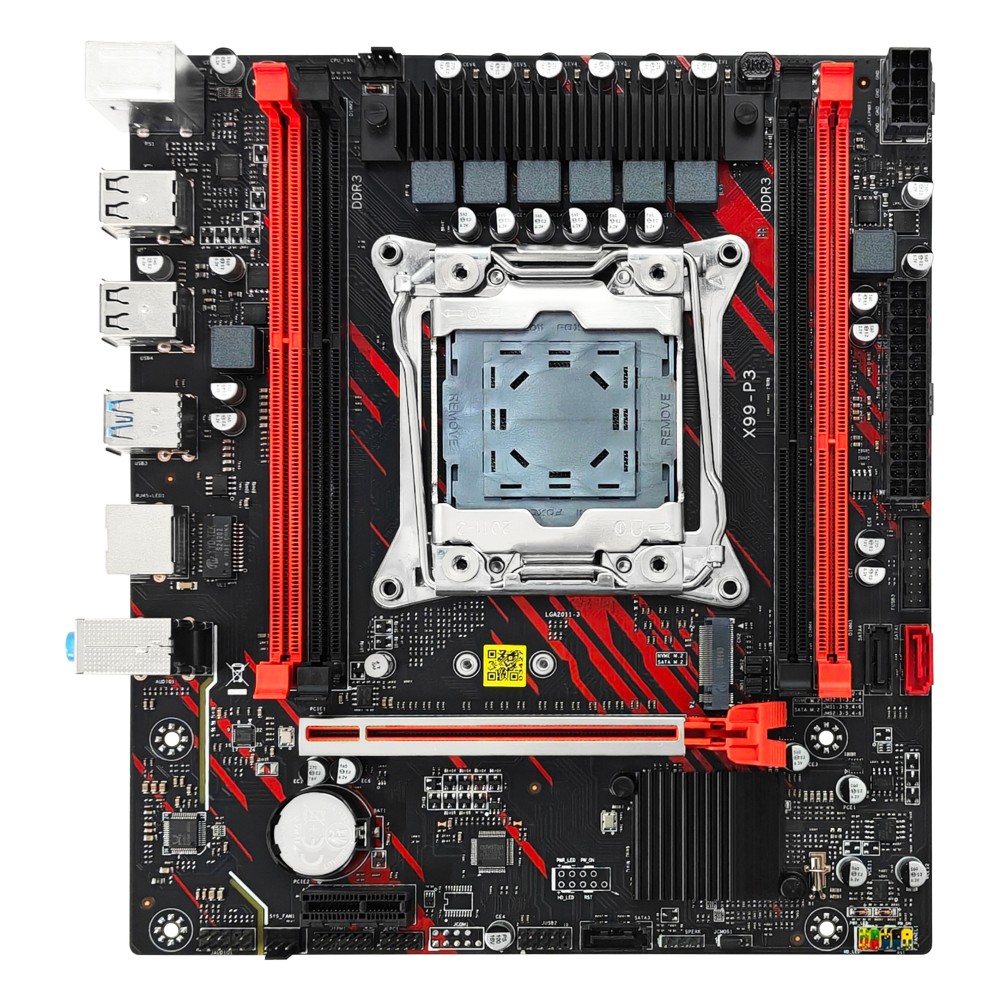

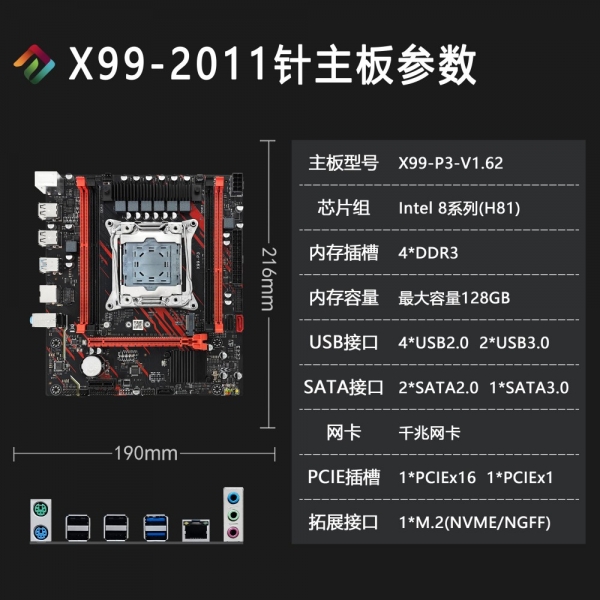

product size

190 MM x 216 MM x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 45~50W Full load power consumption: 400~470W (for reference only)
