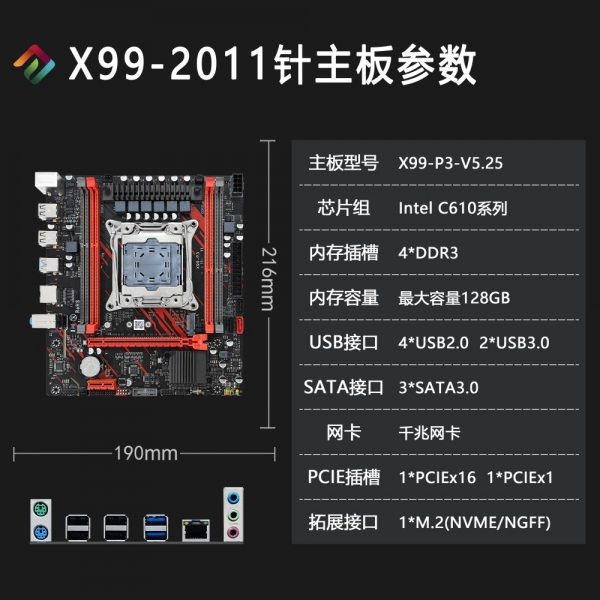

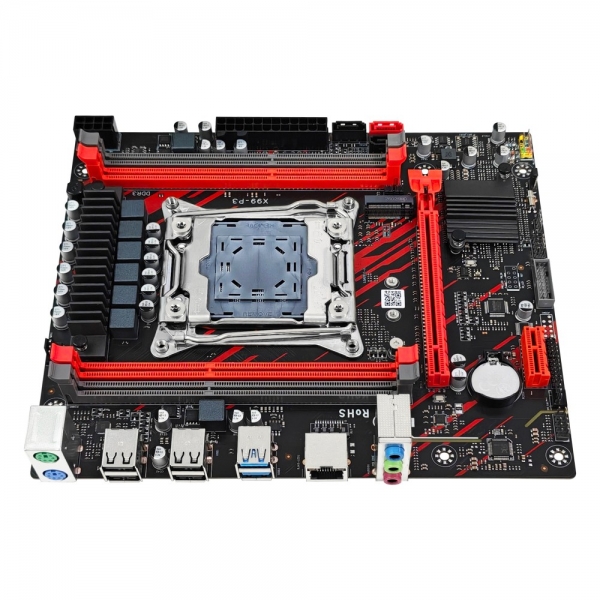

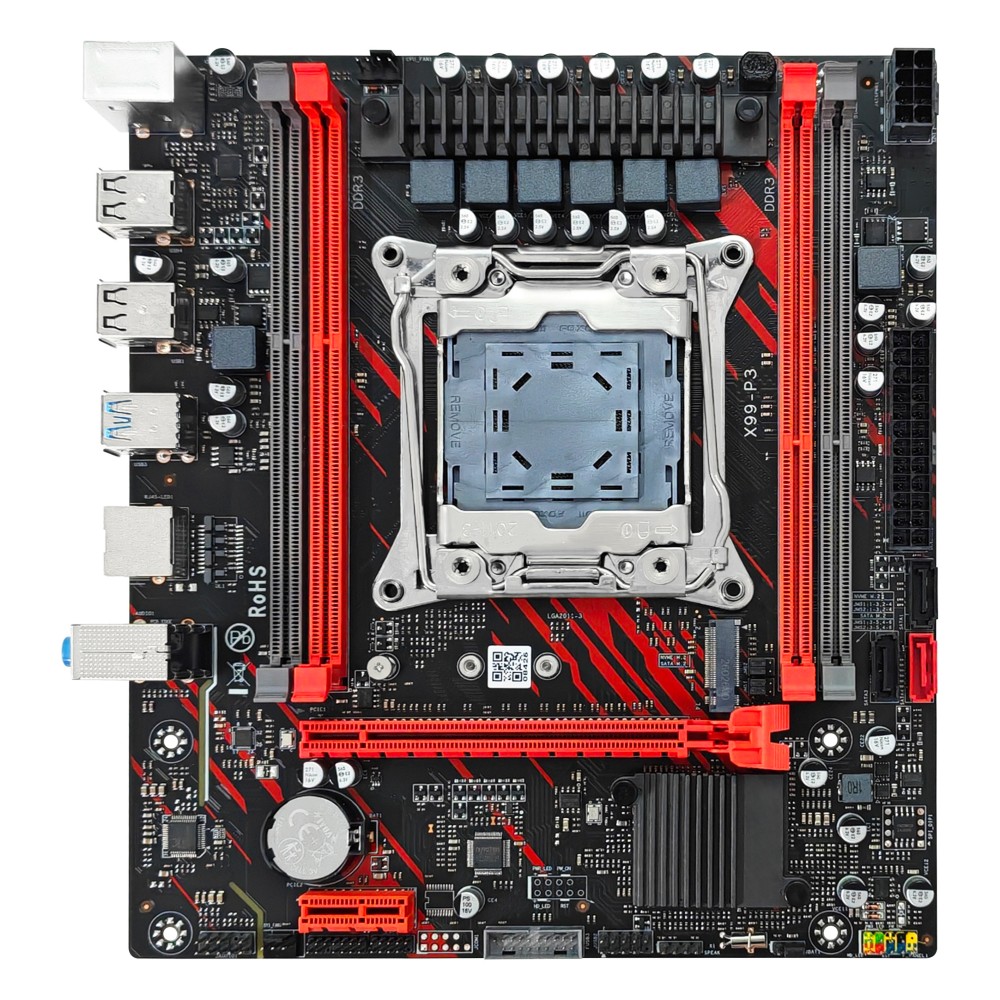

Motherboard chip

Intel C610 Series Chipsets

CPU

Intel Xeon E5 LGA2011-V3 pin CPU (with DDR3 memory controller)

For example: E5-2629v3/2666v3/2673v3/2676v3/2678v3/2696v3/2684v4/2696v4, etc.

memory

4*DDR3 DIMM, dual-channel, with red slot as the main channel, supports 1066/1333/1600/1866MHz(MAX), and the maximum support is 128G (32G*4).

Cunzhu

1*M.2 slot (PCIE 3.0 X4/SATA protocol, cap hopping);

3*SATA interface (SATA3.0)

External TPM

1*14Pin pin (compatible with MSI 14Pin TPM module)

network

1*RJ45 interface

Network card chip

Realtek gigabit network card chip

PS/2

1 KB interface and 1 MS interface.

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

Realtek HD audio chip

Usb interface

IO interface: 4 * USB 2.0; 2*USB3.0

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be extended); 1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

PCIE

PCIE1 :PCIE X16 3.0 slot (from CPU)

PCIE2:PCIE X1 2.0 slot (from PCH)

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan; 1*JBAT pin; 1*Speak pin; 1*JLPC pin;

Power input

24Pin+8Pin ATX power socket

product size

190 x 216mm x 4L
