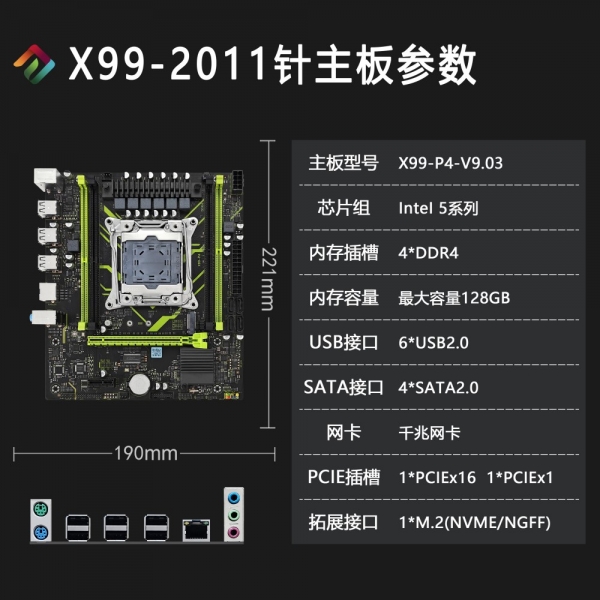

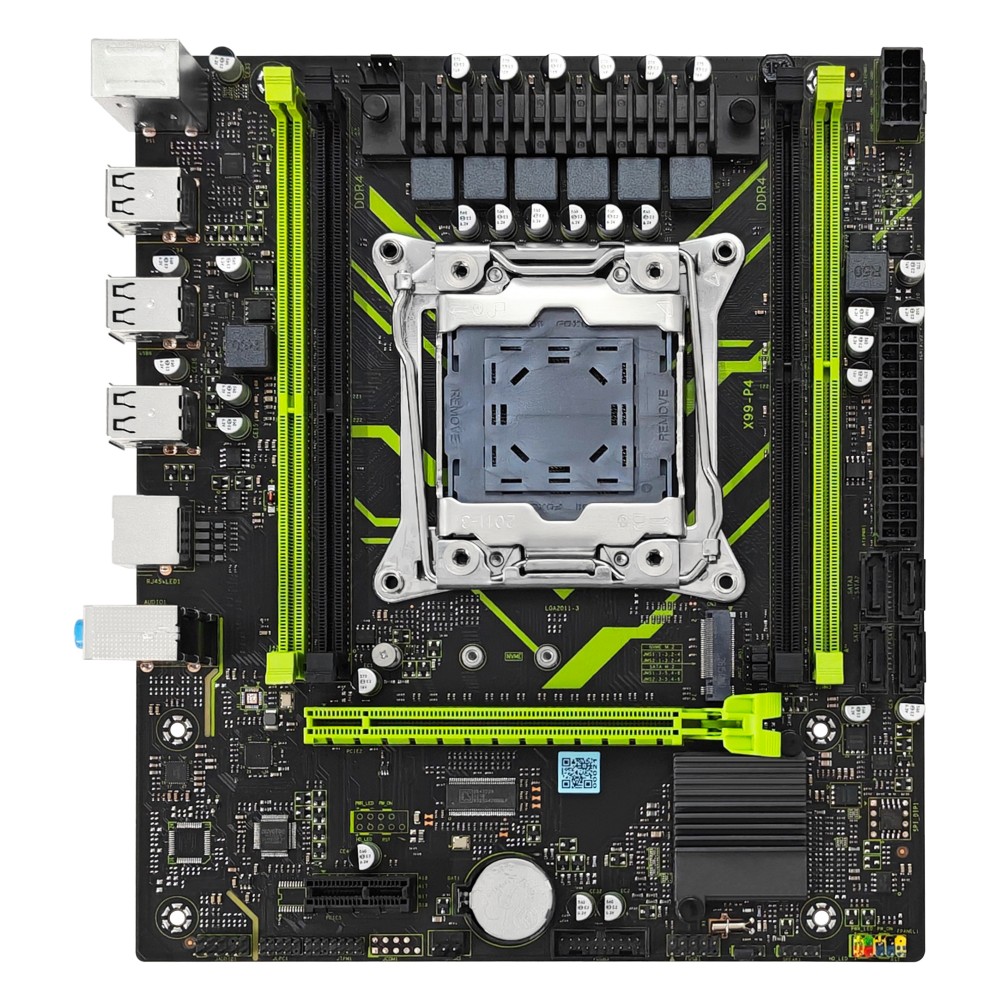

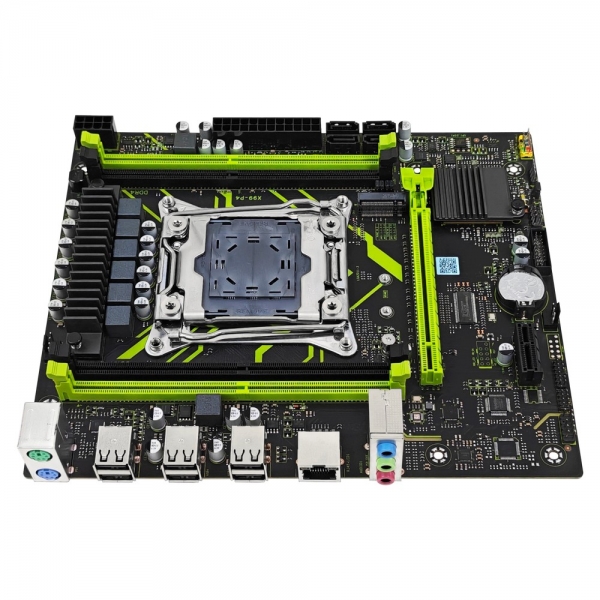

Motherboard chip

Intel 5 Series Chipsets

CPU

Intel Xeon E5 LGA2011-3 processor

Optional: E5266v3, E5 2673V3, E5 2678V3, E5 2696V3, etc.

memory

4*DDR4 DIMM, dual channel (green slot as primary channel and black slot as secondary channel)

2133/2400/2666MHz/128G, single slot can support 32G at most.

Cunzhu

1* M.2 slot (PCIE 3.0 x4, NGFF2.0 mode is supported, which can be switched by jumping the cap).

4*SATA2.0 interface

Network card chip

1*Realtek Gigabit NIC chip

audio frequency

1*Line out； 1*MIC In； 1*Line In； 1*F_Audio built-in pin

Audio chip

1*Realtek HD Audio Chip

PCIE

1*PCIE X16 slot (PCIE3.0 X16 signal for processor)

1*PCIE X1 slot (chipset PCIE1.0 X1 signal)

TPM

1*14Pin TPM pin

PS2

1*PS2 keyboard mouse interface

Usb interface

IO interface: 6*USB2.0

Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 ports can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan; 1* Buzzer pin

Power input

24Pin+8Pin ATX power socket

product size

190.00 mm x 220.57 mm x 4L

power consumption

Standby power consumption: 50~80W Full load power consumption: 180~260W (for reference only)

other

1*JBAT jumping cap; 2*5Pin diagnostic card interface
