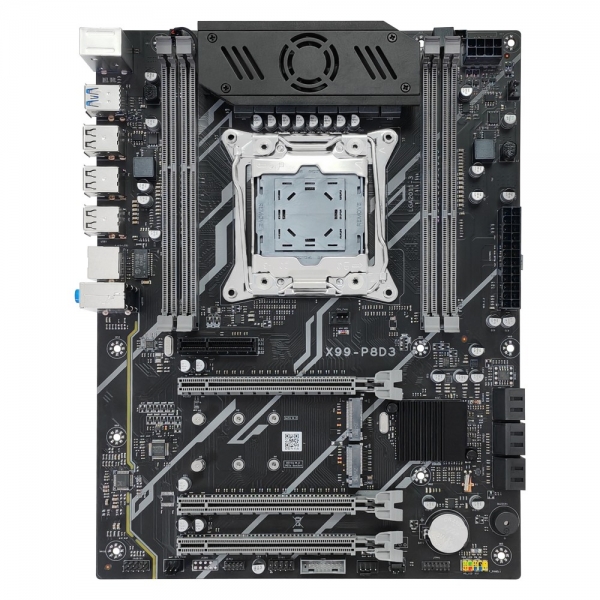

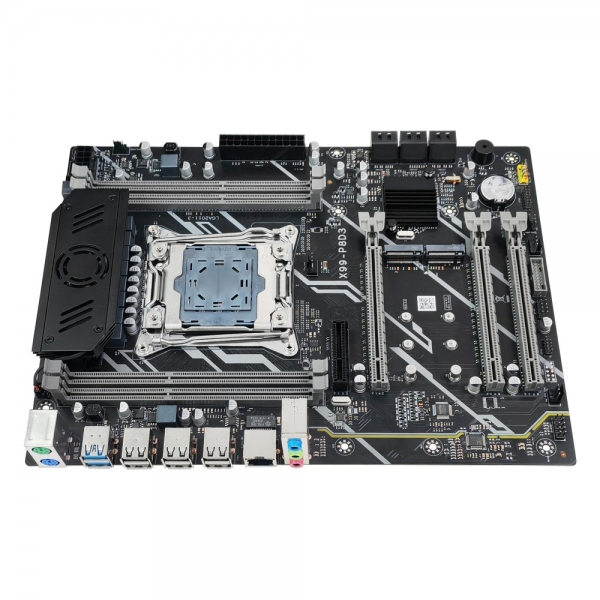

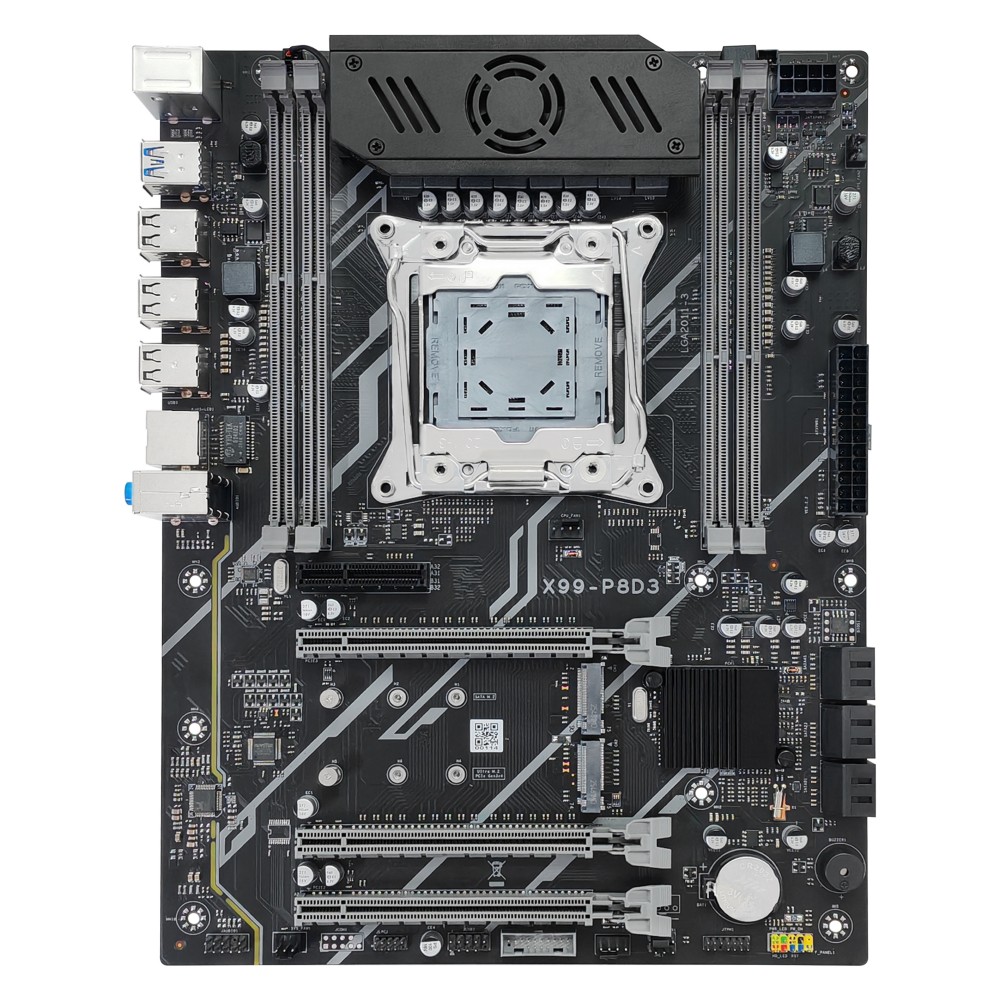

Motherboard chip

Intel Q87

CPU

InteI LGA 2011-3 specification slot processor

Such as: E5-2678v3/E5-2696v3/E5-2696v4/E5-2666v3 and so on.

memory

Four channels of memory;

4*DDR3 DIMM slot, supporting 1066/1333/1600/1866MHz, and a single slot can support up to 32GB.

(Actual memory frequency support depends on processor type and memory stick)

save

1* M.2 slot (nvme 3.0); 1* M.2 slot (NGFF 3.0); Support 2280/2260/2242 type equipment;

6* SATA 3.0 interface

Network function

1*Realtek Gigabit NIC interface;

PCIE expansion slot

PCIE1 slot (Intel processor PCIe 3.0x16);

PCIE3 slot (Intel processor PCIe 3.0x16);

PCIE2 slot (Intel chipset PCIe 2.0x16);

PCIE4 slot (Intel chipset pcie 3.0x4);

PS/2

1*PS/2 keyboard; 1*PS/2 mouse

audio frequency

1*Line_out； 1*MIC_In； 1*Line_In；

1*JAUDIO1 Front Audio Pin (Realtek HD Audio Chip)

TPM

1*TPM2.0 pin (14Pin)

Usb interface

Rear panel: 6 * USB 2.0; ：2* USB3.0；

Front panel: 1 set of pins can expand 2 * USB2.0 ports.

1 set of pins can expand 2 * USB3.0 ports.

Functional pin

1*F_PANEL front panel pin; 1* CPU_FAN fan (4pin); 2* SYS_FAN fan (3 pin); 1* SYS_FAN fan (4Pin);

2*JCPU_MOS fan (2Pin)

Power input

24Pin+8Pin ATX power socket

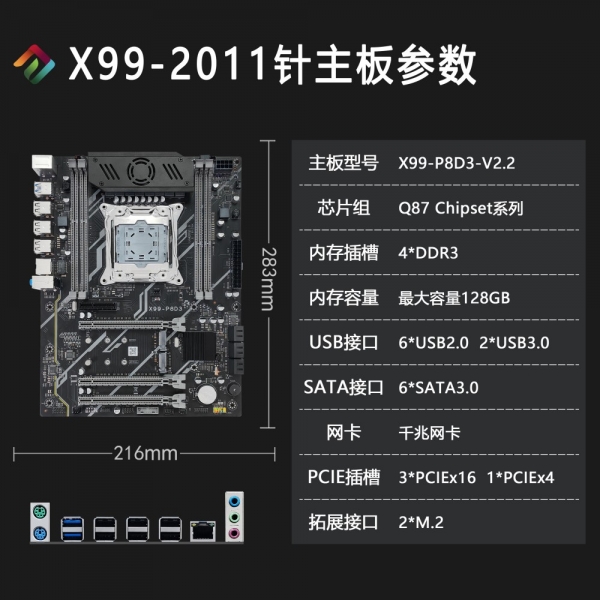

product size

216mm x 283mm x 6L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 60-65W Full load power consumption: 270~275W (for reference only) (excluding GPU power consumption)

(If you want to install hardware equipment with high power consumption, please use a high-power power supply.)

other

1*JCMOS clear pin; 1*JLPC diagnostic card pin;
