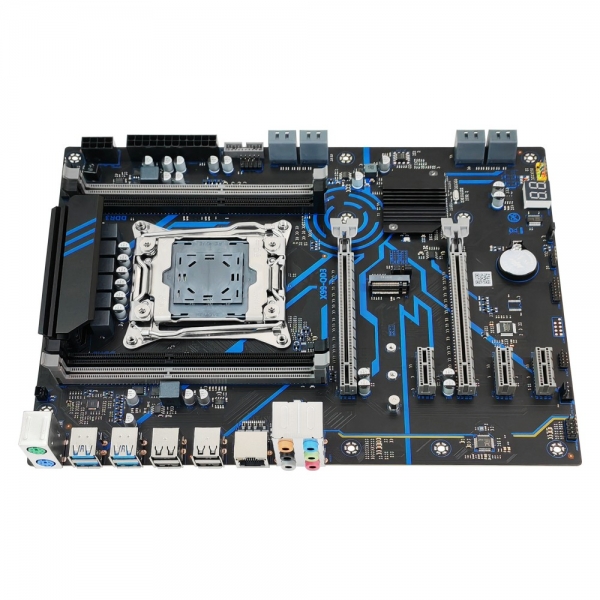

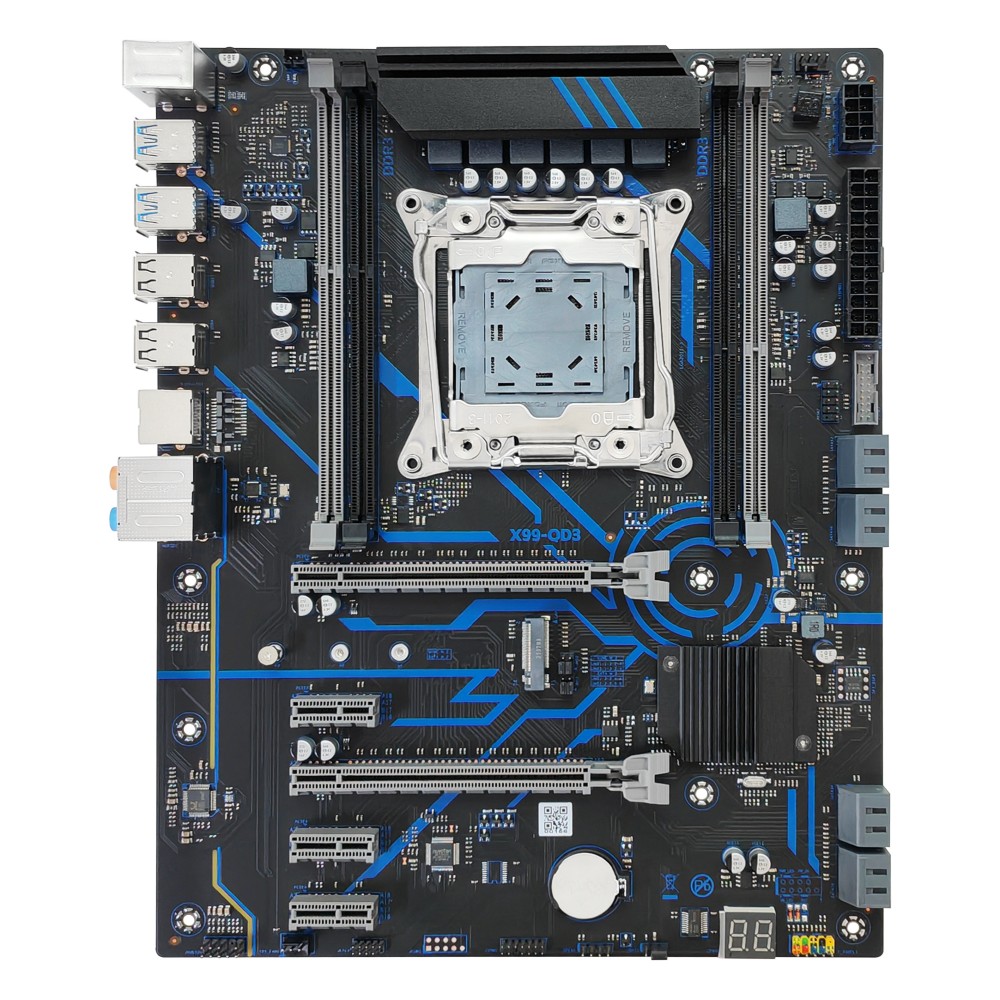

Motherboard chip

Intel C612

CPU

InteI LGA 2011-3 specification slot processor; (e.g. E5-2678v3/E5-2696v3/E5-2696v4/E5-2666v3, etc.)

memory

Dual channel memory; (Black is the main channel; Gray is the secondary channel)

4*DDR3； 240-Pin DIMM slot, which supports 1066/1333/1600/1866MHz, and the maximum single slot supports 32GB；;

(The actual memory frequency support depends on the processor type and memory stick);

save

1* M.2 slot (NVME&SATA); Support 2280/2260/2242 type equipment; (JMS1/2 pin: M.2 mode switching pin);

5* SATA 3.0 interface; 3* sSATA 3.0 interface;

Network function

1*Realtek Gigabit NIC interface;

PCIE expansion slot

PCIE1 slot (Intel processor PCIe 3.0x16);

PCIE3 slot (Intel processor PCIe 3.0x16);

PCIE2 slot (Intel chipset PCIe 2.0x1);

PCIE4 slot (Intel chipset pcie 2.0x1);

PCIE5 slot (Intel chipset pcie 2.0x1);

PS/2

1*PS/2 keyboard; 1*PS/2 mouse

audio frequency

1*Line_out； 1*MIC_In； 1*Line_In； 1*Side_Speaker； 1*Rear_Speaker； 1*Central / Bass；

1*JAUDIO1 Front Audio Pin (Realtek HD Audio Chip)

TPM

1*TPM2.0 pin (14Pin)

Usb interface

Rear panel: 4 * USB 2.0; ：4* USB3.0；

Front panel: 1 set of JUSB2 pins (2 * USB2.0 ports can be expanded);

1 set of FUSB3 connector (expandable 2 * USB3.0 port);

Functional pin

1*F_PANEL front panel pin; 1* CPU_FAN fan (4pin); 1* SYS_FAN fan (3 pin); 1* SYS_FAN2 fan (4Pin);

1*JCPU_MOS fan (2Pin)

Power input

24Pin+8Pin ATX power socket

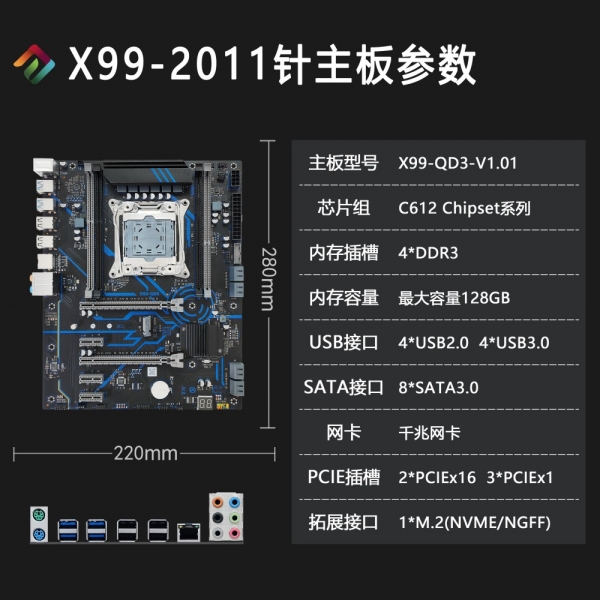

product size

220mm x 280mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 60-65W Full load power consumption: 270~275W (for reference only) (excluding GPU power consumption)

(If you want to install hardware equipment with high power consumption, please use a high-power power supply.)

other

1*JBAT clears the pin; 1*JLPC diagnostic card pin;
