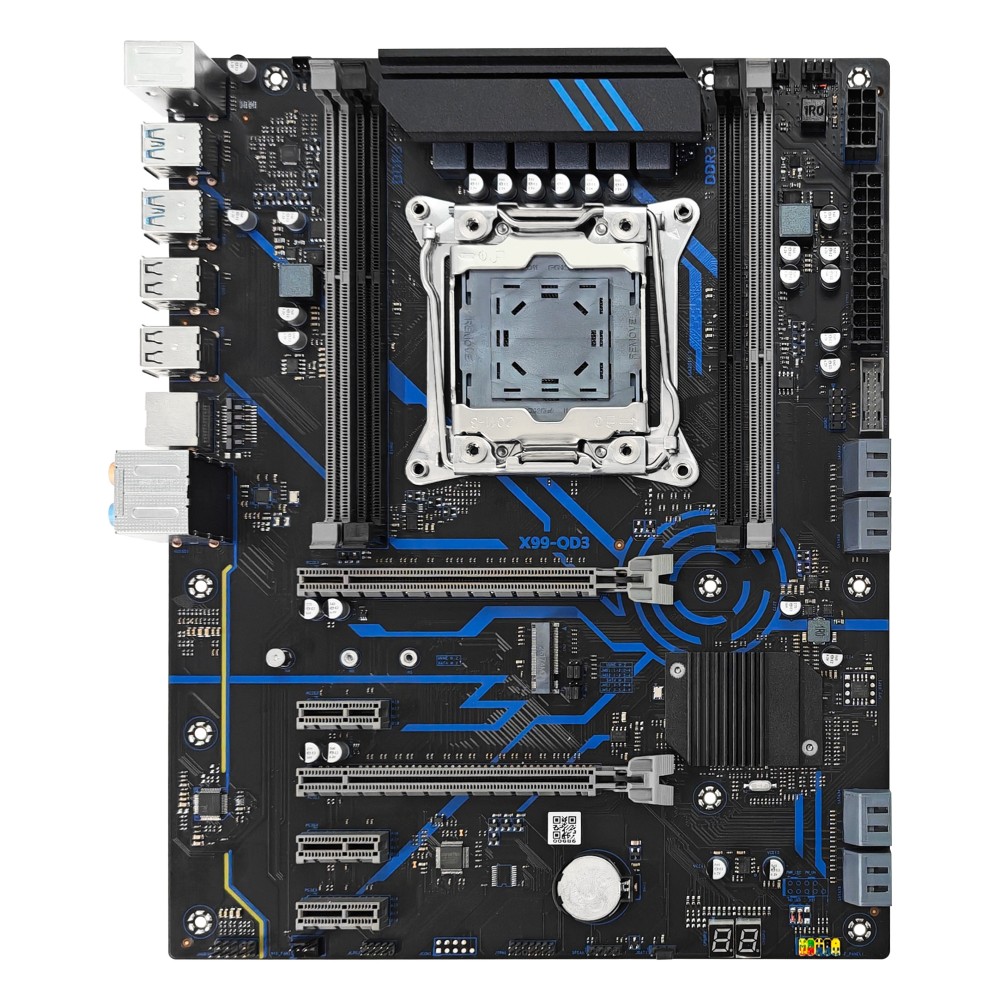

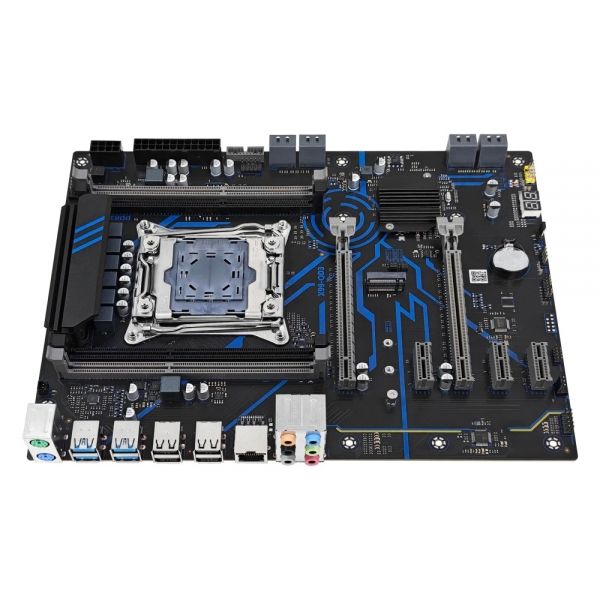

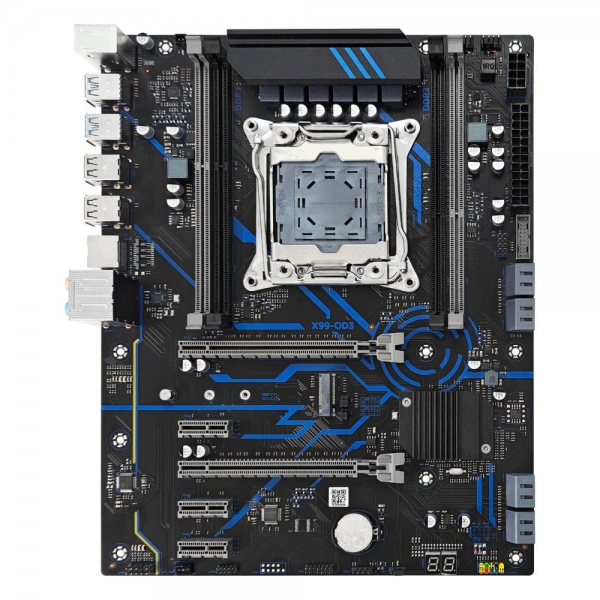

Motherboard chip

Intel C610 Series Chipsets

CPU

Support LGA2011-3 slot

Optional: E5 2696V4, E5 2696V3, E5 2686V4, E5 2683V3, E5 2680V3, E5 2678V3, E5 2673V3 and so on.

memory

Dual channel memory; (Black is the main channel; Gray is the secondary channel)

4*DDR3 DIMM slot, supporting up to 128 GB (32 GB * 4); Support 1600/1866MHz

(Actual memory frequency support depends on processor type and memory stick)

save

1*M.2 slot (NVME&NGFF jump cap switching); Support 2280/2260/2242 storage devices (M.2: PCIe 3.0x4 & SATA 3.0).

8*SATA 3.0 interface

TPM

1*TPM 2.0 pin (14Pin)

PS/2

1*PS/2 keyboard; 1* PS/2 mouse

network

1*Realtek Gigabit NIC interface

PCIE slot

2*PCIE_x16 slot (processor PCIE3.0 x16)

3*PCIE_x1 slot (chipset PCIE2.0 x1)

audio frequency

1*Line_out； 1*Mic_In； 1*Line_In； 1*Side_out,1*Rear_out,1*Center /subwoofer

1*JAUDIO1 Front Audio Pin (Realtek HD Audio Chip)

Usb interface

Rear panel: 4 * USB 3.0; 4*USB2.0

Front panel: 1 set of USB2.0 pins (2 USB2.0 ports can be expanded)

1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

Functional pin

1*FPANEL front panel pin

1*CPU fan (4pin); 1*CPU_MOS fan (2Pin)1*SYS fan (4pin); 1*SYS fan (3Pin)

Power input

24Pin+8Pin ATX power socket

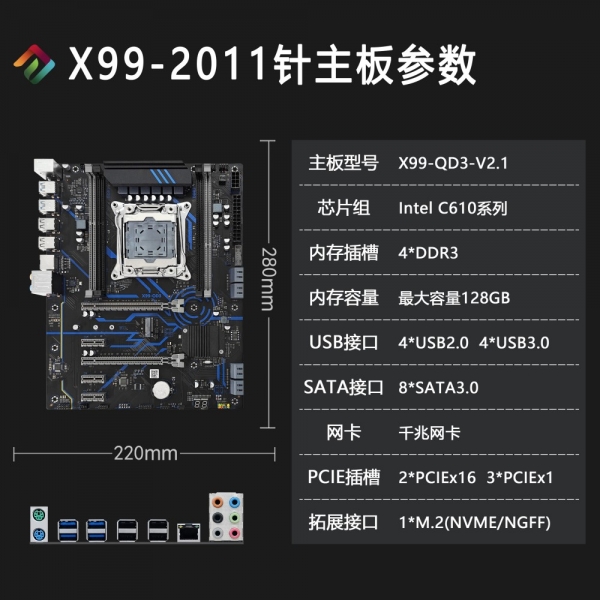

product size

220mm x 280 mm x 4L

power consumption

Standby power consumption: 76~78W Full load power consumption: 210~300W (for reference only)

(If you want to install hardware equipment with high power consumption, please use a high-power power supply.)

other

1*JLPC diagnostic card pin; 1*JBAT clears the pin; 1*SPEAK buzzer pin
