Motherboard chip

Intel C612

CPU

Intel Xeon E5 LGA2011-3 processor

Optional: E5266v3, E5 2678 V3, E5 2673V3, E5 2696V3, etc.

memory

4*DDR4 DIMM, dual channel (the green slot is the main channel, and the black slot is the auxiliary channel), 2133/2400/2666MHZ, and the maximum single slot support is 32G.

Cunzhu

1* M.2 slot (supporting NVME/NGFF mode and cap-jumping switching mode); 8*SATA 3.0 interface

network

1*RJ45 interface

Network card chip

Realtek RTL8111H Gigabit NIC Chip

PCIE slot

2*PCIE X16 slot; 3*PCIE X1 slot

audio frequency

1*Line out； 1*MIC In； 1*Line In； 1*SIDE； 1*REAR； 1*C/SUB； 1*F_Audio built-in pin

Audio chip

Realtek ALC897 HD Audio Chip

PS/2

1*PS/2 interface

TPM

1* External TPM

Usb interface

IO interface: 4*USB2.0 interface; 4*USB3.0 interface

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be extended); 1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*4Pin SYS fan, 1*3Pin SYS fan.

Power input

24Pin+8Pin ATX power socket

product size

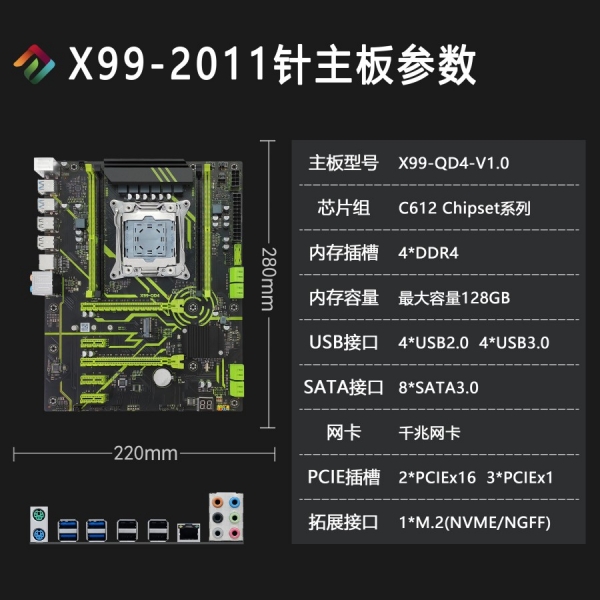

ATX motherboard specification, 280 MM x 220 MM x 4L

power consumption

Standby power consumption: 50~70W Full load power consumption: 180~300W

other

1*BAT； 2*5Pin diagnostic card interface
