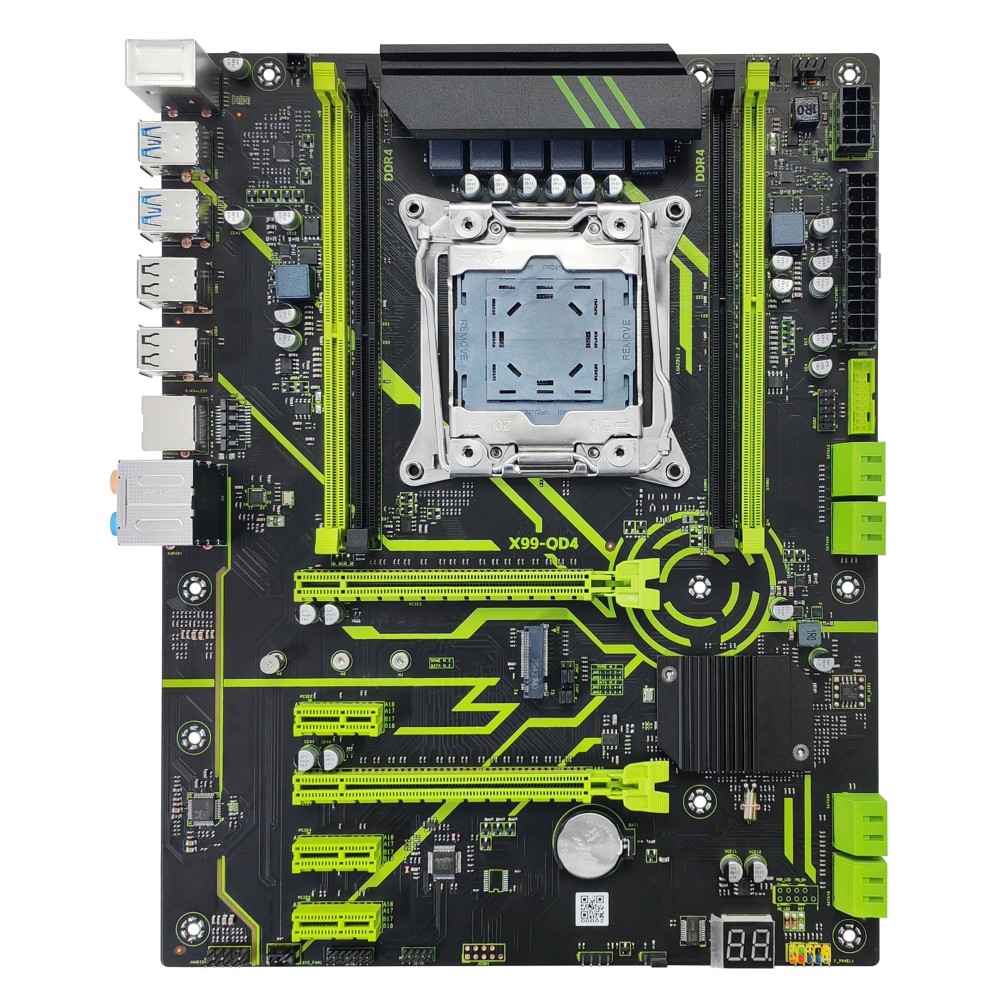

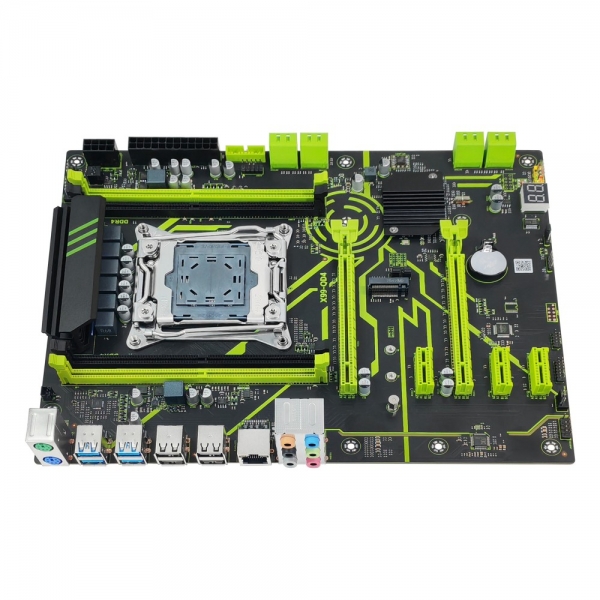

Motherboard chip

Intel C612

CPU

Intel LGA2011-3 CPU

Optional: E52673v3/E52676v3/E52666v3/E52678v3/E52696v3/E52686v4/E52696v4 and so on.

memory

4*DDR4 DIMM, 2400MHz/128G, single slot supports 32G at most (dual channels are supported, and the outer green memory slot is the main channel).

Cunzhu

1*M.2 slot (PCIE3.0x4 and SATA3.0 modes are supported, and the jump cap needs to be switched); 8*SATA 3.0

audio frequency

1*Line out； 1*Mic； 1*Line In； 1*Center/Subwoofer； 1*Rear out； 1*Side out； 1*F_Audio built-in pin

Audio chip

1* Realtek HD Audio Chip

PCIE slot

2*PCIE X16 slot (PCIE3.0 X16 signal)

3*PCIE X1 slot (PCIE2.0 X1 signal)

network

1*RJ45 interface

Network card chip

1*Realtek Gigabit NIC chip

Usb interface

IO interface: 4 * USB 3.0; 4*USB2.0

Built-in pins: 1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

1 set of USB2.0 pins (2 USB2.0 ports can be expanded)

TPM interface

1*14Pin TPM2.0 pin

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin SYS fan; 1*3Pin SYS fan; 1*4Pin SPEAK pin

Power input

24Pin+8Pin ATX power socket

PS/2 interface

1*PS/2 keyboard and mouse interface

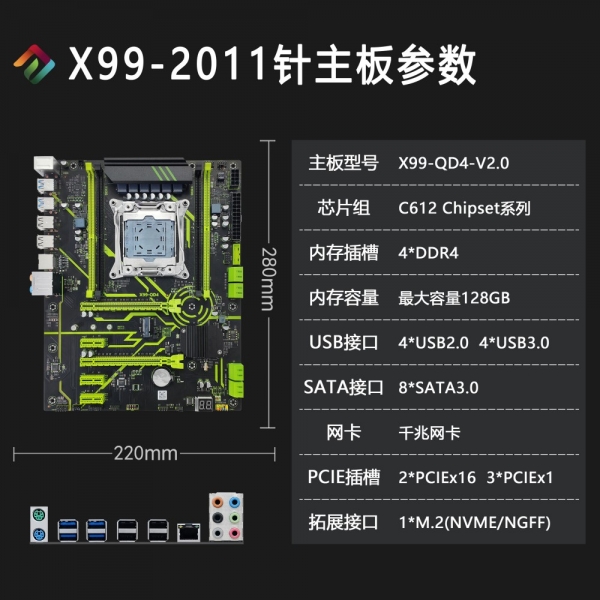

product size

280 x 220 mm x 4L

power consumption

Standby power consumption: 20~40W Full load power consumption: 300~350W (for reference only)

other

1 JBAT jump cap; 2*5Pin diagnostic card interface
