Motherboard chip

Intel C610 Series Chipsets

CPU

Intel Xeon E5 LGA2011-3 processor

Optional: E5266v3, E5 2678 V3, E5 2673V3, E5 2686 V4, E5 2696V3, etc.

memory

4*DDR3 DIMM, quad-channel, 1066/1333/1600/1866MHz, single slot maximum support 32G.

Cunzhu

1* M.2 slot (supports NVME 3.0 x4 mode and NGFF 3.0 mode, and can be switched by jumping the cap).

1* M.2 slot (only NVME 3.0 x4 mode is supported)

6*SATA 3.0 interface

Network card chip

1*Realtek Gigabit NIC chip

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

1*Realtek HD Audio Chip

PCIE

1*PCIE X16 slot (PCIE3.0 X16 signal)

1*PCIE X4 slot (PCIE3.0 X4 signal)

1*PCIE X1 slot (PCIE2.0 X1 signal)

Usb interface

IO interface: 4*USB2.0, 4*USB3.0.

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 can be extended)

1 set of USB3.0 pins (2 USB3.0 can be expanded)

WIFI

1*WIFI M.2 slot

TPM

1*14Pin TPM pin

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan, 1*4Pin SYS fan, 2*3Pin SYS fan.

Power input

24Pin+8Pin ATX power socket

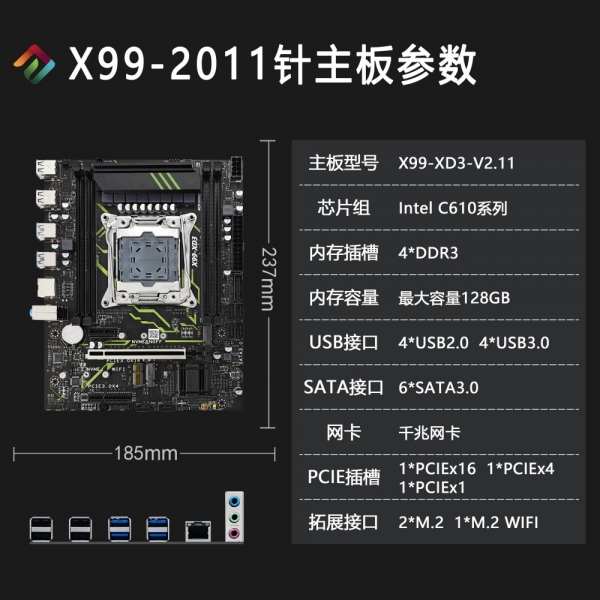

product size

237.13 mm x 185.00 mm x 6L

power consumption

Standby power consumption: 50~70W Full load power consumption: 180~260W

other

1*BAT (clear CMOS); 2*5Pin diagnostic card interface
