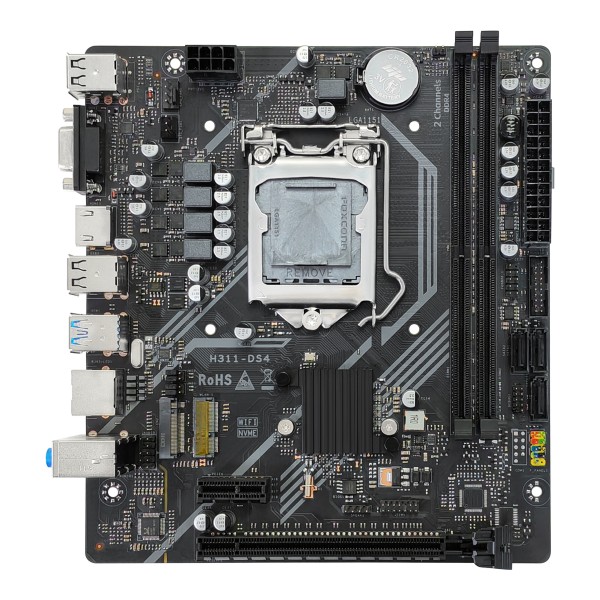

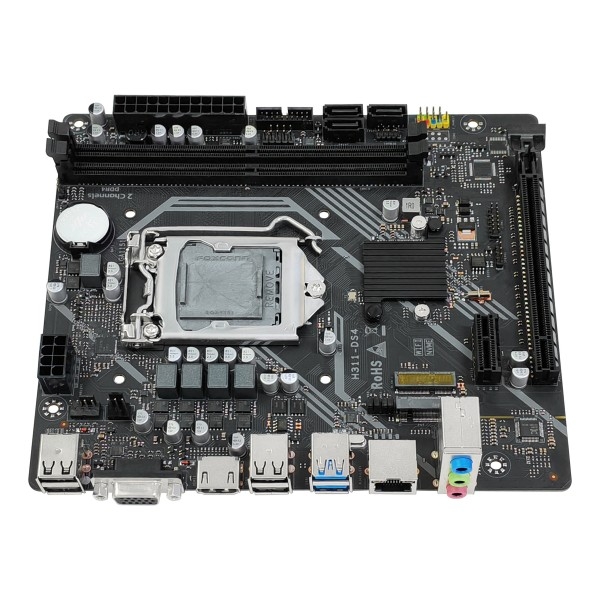

Motherboard chip

Intel Q270

CPU

Support LGA1151 slot-9th/8th/7th/6th generation processors:

Intel Core i7/i5/i3 processors;

Intel® Pentium® processor/Intel® Celeron® processor

memory

2*288Pin-DDR4 DIMM slot, supporting up to 32GB；; Support DDR4 2666/2400/2133MHz.

save

1* M.2 slot (nvme & ngff); 3*SATA 3.0 interface (M.2: Gen3x4 & SATA 3.0)

Display interface

1* HDMI 1.4 interface, 1*VGA interface

network

1*(RJ45+LED) interface (Realtek Gigabit network card chip)

PCIE slot

1*PCIEXP2 slot (Gen3x16); 1*PCIE6 slot (X1)

audio frequency

1*Line out； 1*MIC In； 1*Line In； 1*F_Audio built-in pin (Realtek ALC897 HD audio chip)

WIFI (wireless interface)

1*M.2 WIFI interface (supporting PCIE protocol)

Usb interface

IO interface: 2 * USB 3.0; 4*USB2.0；

Built-in pins: 1 set of FUSB20_1 pins (2 USB2.0 ports can be extended);

1 set of FUSB30_1 pins (2 USB3.0 ports can be extended);

Functional pin

1*F_PANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU_FAN； 1*3Pin SYS_FAN；

Power input

24Pin+8Pin ATX power socket

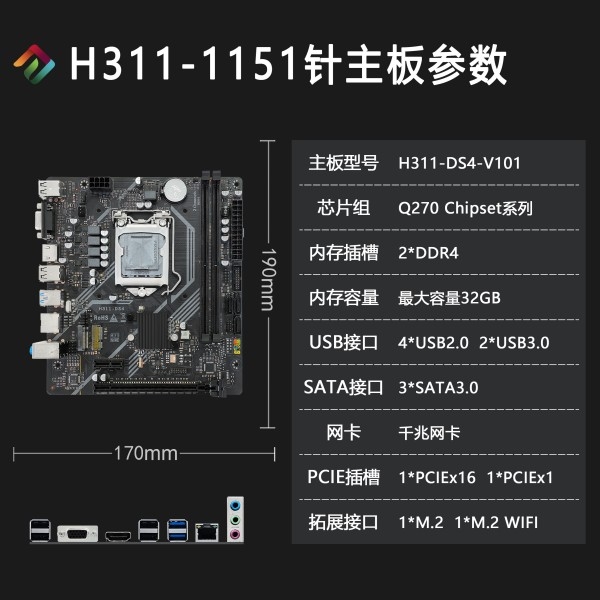

product size

M-ATX motherboard specification, 170 x 190 mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 27~30W Full load power consumption: 120W~ (for reference only)

(If you want to install hardware equipment with high power consumption, please use a high-power power supply.)

other

1*DEBUG interface; 1*JBAT pin; 1*M.2 Switch pins
