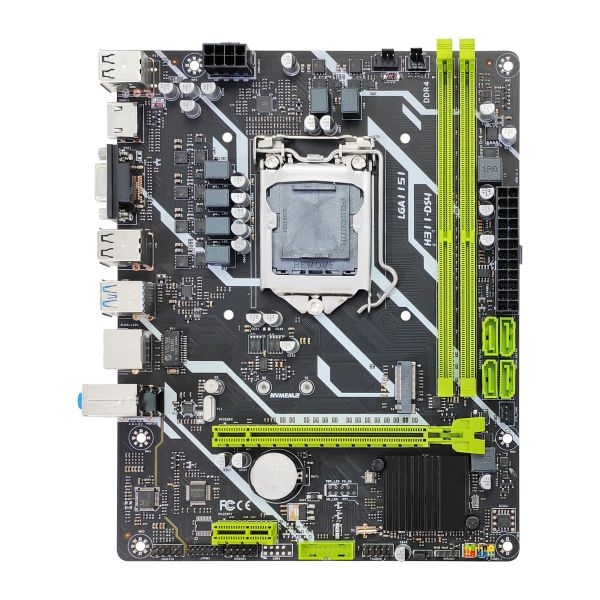

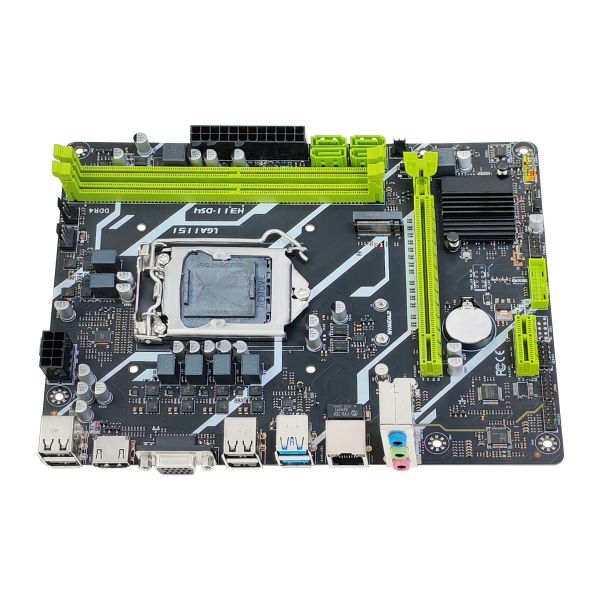

chip set

Intel PCH C236

CPU

Intel Socket LGA1151 GEN 6/7/8/9

Memory standard

Dual channel DDR4; Support 2133/2400/2666Mhz 32GB (16G*2)

Cunzhu

1*M.2 slot (nvme pcie 3.0x4); 4*SATA 3.0 interface

Display interface

1*VGA,1*HDMI1.4

network

1*RJ45 interface

Network card chip

Realtek RTL8111H Gigabit NIC Chip

WIFI

N/A

audio frequency

1*Line out； 1*Line In； 1*MIC In； 1*F_Audio built-in pin

Audio chip

Realtek ALC897 HD Audio Chip

TPM

1 2x7Pin pin

Usb interface

IO interface: 4*USB2.0 2*USB3.2

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be expanded)

1 set of USB3.0 pins (2 USB3.2 ports can be expanded)

PS/2 interface

N/A

PCI-E slot

1* PCI-E 3.0 X16,1*PCI-E 3.0 X1

PCB layer number

4-layer PCB

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 2*3Pin SYS fan

Power input

ATX 24PIN + 12V_8PIN

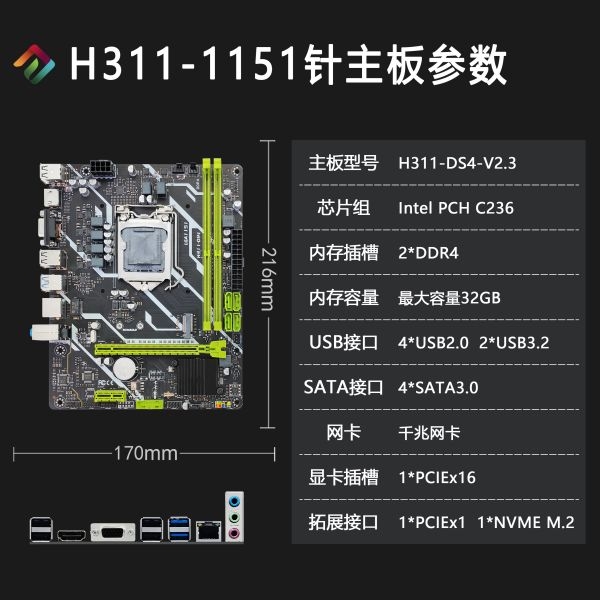

Plate size

170mm x 216 mm

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 40W~60W Full load power consumption: 90W~150W

other

1*3Pin JBAT1 jump cap; 2*5Pin diagnostic card interface; 1*3Pin SPEAK;
