CPU

Intel Celeron J4125

memory

technology

Single channel DDR4

capacity

The maximum capacity supports 16GB and the maximum frequency supports 2400MHz.

Memory slot

1 x 260Pin DDR4 SO-DIMM(Non-ECC)

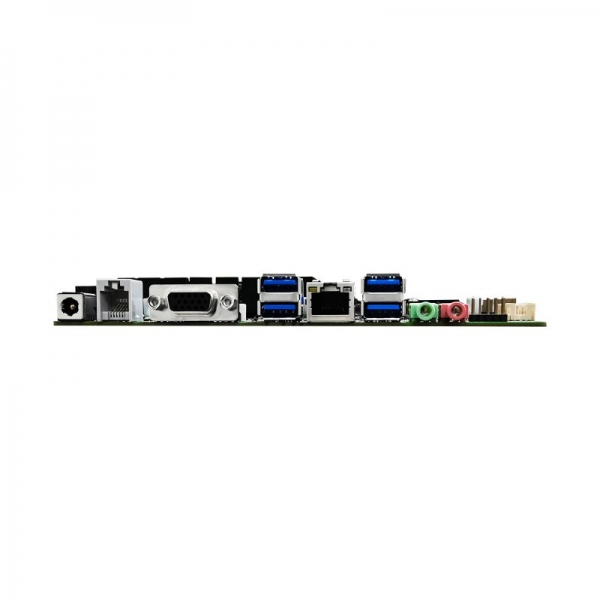

Post I/O

power source

1 standard 2.5mm DC12V power socket

VGA

Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz(VGA and JVGA can only be selected).

Cashier interface

1 RJ11 cashbox interface

Ethernet

1 Realtek Gigabit NIC

USB port

3 USB3.0 interfaces and 1 USB2.0 interface.

Audio

1 (Line-out, Mic-in)

Internal connector

USB port

4 USB2.0 interfaces (one FUSB can switch out 2 USB2.0 interfaces)

LVDS interface

Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

LVDS1 interface

Support single (dual) channel with 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz(LVDS1 and HDMI play together, so you can only choose one).

JVGA interface

1*12Pin pin, the maximum supported resolution is 2560*1600@60Hz(VGA and JVGA can only be selected).

JHDMI

2*8Pin pin, supporting HDMI1.4, maximum resolution: 4096*2160@30Hz (LVDS1 and HDMI are laid together, so you can only choose one).

serial ata

1 7Pin SATA interface (and 1 4Pin SATA power supply interface is provided), which supports SATA 3.0 speed.

MSATA interface

Support 1 MSATA hard disk.

serial port

2 serial ports, supporting RS232/RS485 mode

FAudio

1 2*5Pin pin (Mic-in, Line-out)

power amplifier

1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2.

FPANEL

1 switch control panel

Fan interface

2, 1 CPUFan and 1 SYSFan.

WIFI/4G

1 WIFI/4G interface

GPIO

8-way bidirectional 3.3V

PWR interface

1 standard 2x2PIN DC12V power socket

Watchdog

output

system reset

space

Programmable for 1-255 seconds

power consumption

Maximum power

Standby power consumption: 6.4W Full load power consumption: 58.3W

environment

temperature range

working environment

Storage environment

Temperature:-40 ~ 70℃ Humidity: 5%~95%

Temperature: -40~85℃ Humidity: 5%~95%

DC power supply

12V power input

Physical size

measure

170 mm x 170 mm
