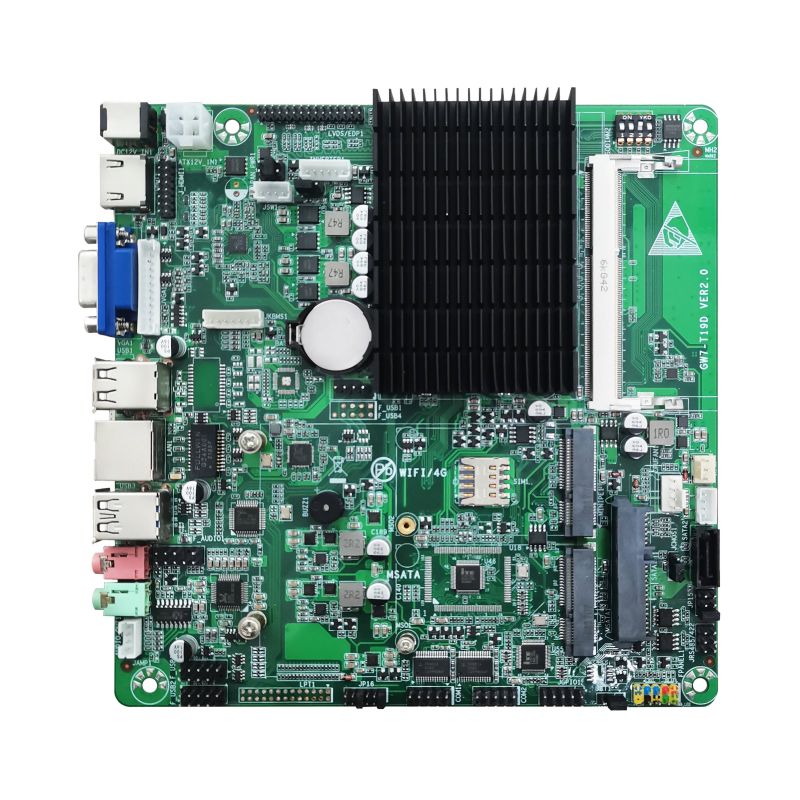

processor

Intel Bay Trail-M/D series processors

chip set

J1900

memory

technology

Single channel DDR3L 1333MHz

maximum capacity

8GB

Memory slot

1 x 204Pin DDR3L SO-DIMM(Non-ECC)

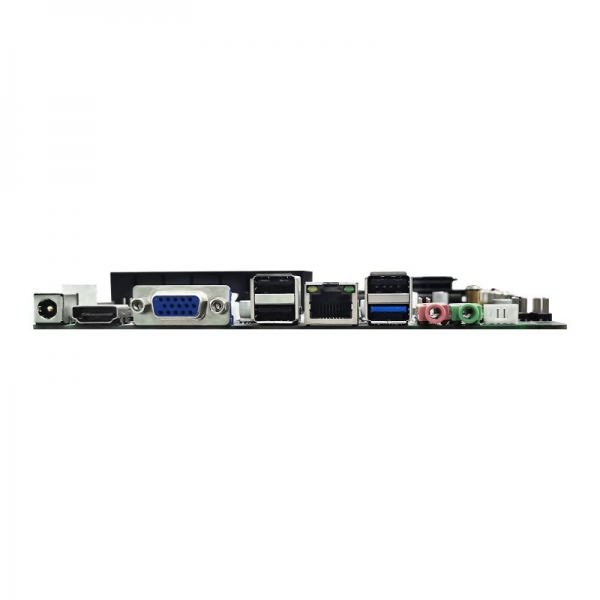

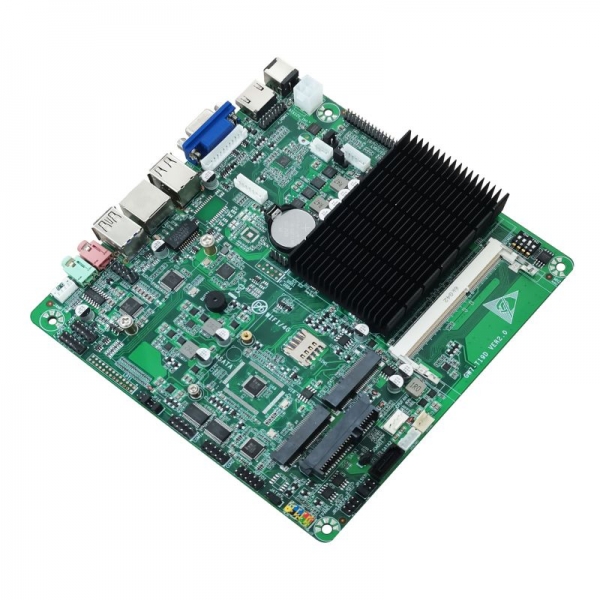

Post I/O

DC interface

1 standard 2.5mm DC power socket

HDMI

Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz.

VGA

Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

Ethernet

1 or 2 gigabit network cards (in which the LAN2 socket and USB2.0 socket are laid together, so choose one), RTL8111F network card chip.

Audio

1 (Mic-in, Line-out)

USB port

1 USB 3.0；; 3 USB 2.0

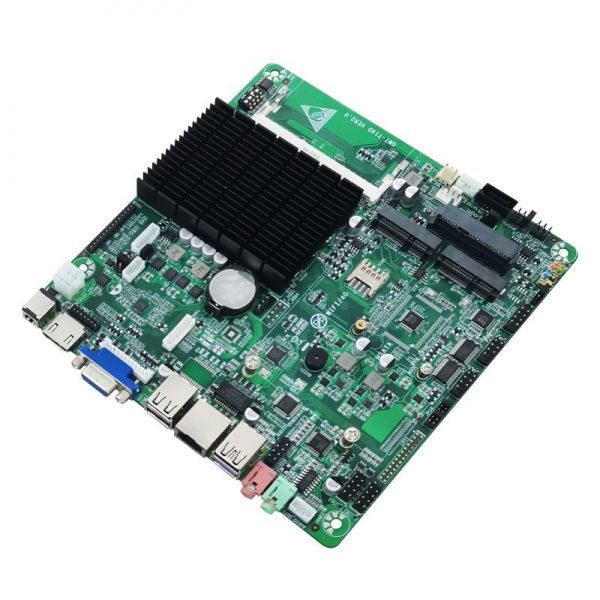

Internal connector

USB port

5 USB2.0 interfaces (two USB2.0 interfaces can be transferred from a double-row FUSB pin, and one USB2.0 can be transferred from a single-row FUSB pin).

serial port

2 (including COM1 supporting RS232 mode and COM2 supporting RS232/422/485 mode)

PS/2 interface

1*7Pin 2.0mm white socket, which can connect PS/2 keyboard and PS/2 mouse.

Audio

1 2*5Pin pin (Mic-in, Line-out)

power amplifier

1*4Pin 2.0mm small white socket, supporting two speakers of 5W2 Euro.

JVGA

1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

JHDMI

1*8Pin pin, supporting the maximum resolution of 2560*1600@60H(HDMI and JHDMI can only be selected).

LVDS interface

Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

EDP interface

Support 4 LANE eDP channel and the maximum resolution of 1920x1200@60HZ(EDP and LVDS can only be selected).

Mini-PCIe

1 Mini PCIe slot, supporting WIFI,4G module.

MSATA

1 Mini PCIe slot with SSD hard disk support.

serial ata

Provide a 7PIN signal interface and a 1*4PIN SATA power interface, and support SATA 2.0 (either with a 2.5-inch hard disk interface).

GPIO interface

8-way bidirectional 3.3V

PWR interface

1 standard 2x2PIN ATX power socket

Watchdog

output

system reset

space

Programmable for 1 ~ 255 seconds

power consumption

Maximum power

Standby power consumption: 7.2W Full load power consumption: 39.6W

environment

temperature range

working environment

Storage environment

Temperature:-40 ~ 70℃ Humidity: 5%~95%

Temperature: -40~85℃ Humidity: 5%~95%

Physical size

measure

170 mm x 170 mm
